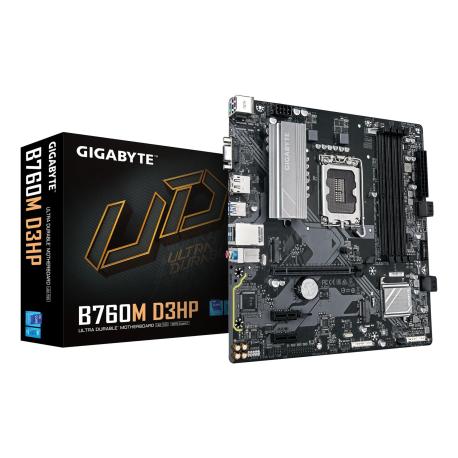

Gigabyte B760M D3HP - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B760M D3HP - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•B760M D3HP 1.0
Artikuls
•4204538
Intrastat
•84717020
Pakas svars
•0.8 kg
Kopā pieejams (gab.)
•30
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
Intel B760 Express
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max Size
256 GB
Technology
DDR5
Bus Clock
2800 MHz, 2600 MHz, 2400 MHz, 2200 MHz
Supported RAM Integrity Check
ECC (operate in non-ECC mode), non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2
Interfaces
1 x DisplayPort ¦ 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack
Internal Interfaces
4 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS
Hardware Monitoring
Fan fail warning, fan control, water cooling flow rate, system voltage, temperature detection, fan speed detection
Hardware Features
4+1+1 Phase Power Design, Ultra Durable, GIGABYTE Smart Fan 6, DIY Friendly Design, Solid Pin Power Connectors, Q-Flash Plus, Q-Flash, Audio Noise Guard, High-end Audio Capacitors, RGB FUSION, PCIe EZ Latch
Software Included
Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center
Width
24.4 cm
Depth
24.4 cm
