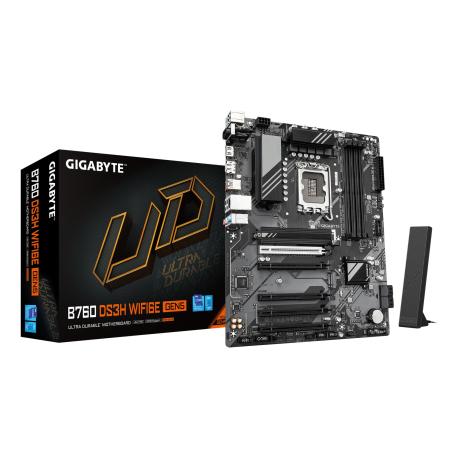

Gigabyte B760 DS3H WIFI6E GEN5 - Motherboard - ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B760 DS3H WIFI6E GEN5 - Motherboard - ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•B760 DS3H WF6E GEN5 1.0
Artikuls
•4454629
Intrastat
•84717020
Pakas svars
•1.55 kg
Kopā pieejams (gab.)
•6
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - ATX
Chipset Type
Intel B760
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max Size
256 GB
Technology
DDR5
Bus Clock
4000 MT/s, 4800 MT/s, 5200 MT/s (O.C.), 5400 MT/s (O.C.), 5600 MT/s (O.C.), 5800 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6400 MT/s (O.C.), 6600 MT/s (O.C.), 6800 MT/s (O.C.), 7000 MT/s (O.C.), 7200 MT/s (O.C.), 7400 MT/s (O.C.), 7600 MT/s (O.C.)
Supported RAM Integrity Check
ECC (operate in non-ECC mode), non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Controller
Intel AX210
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 4 x PCIe 3.0 x16 (x1 mode) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2
Interfaces
1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 2 x aerial
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS
Hardware Monitoring
System voltage, chassis temperature, fan control, water cooling flow rate, temperature detection, fan speed detection, fan fail warning
Hardware Features
8+2+1 Phase Power Design, 6 Layer PCB, Premium Power Choke, VRM Thermal Armor Advanced, M.2 Thermal Guard, RGB FUSION, High-end Audio Capacitors, WIFI EZ-Plug, Q-Flash Plus, PCIe EZ Latch, Ultra Durable, GIGABYTE Smart Fan 6, DIY Friendly Design, MultiKey
Software Included
Norton Internet Security (OEM Version), GIGABYTE Control Center
Width
30.5 cm
Depth
24.4 cm
