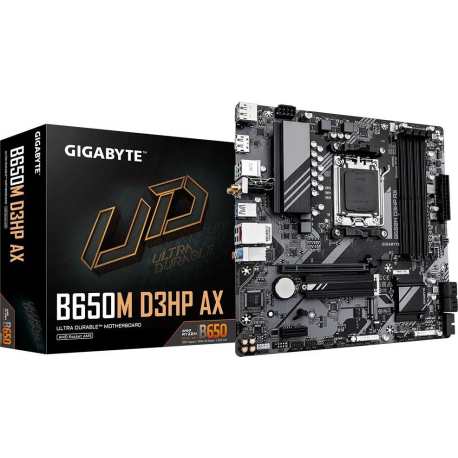

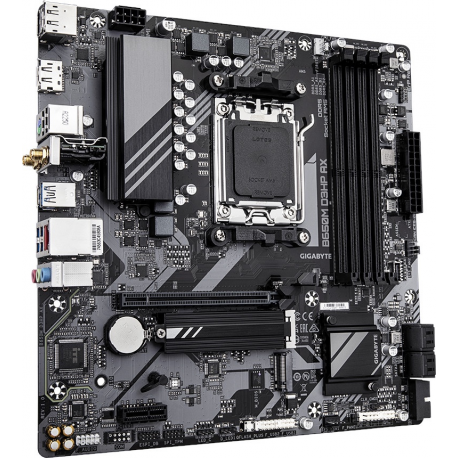

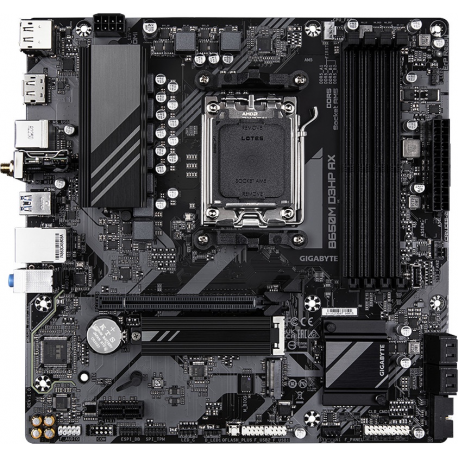

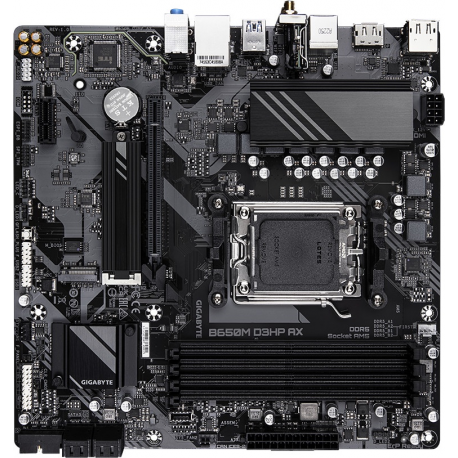

Gigabyte B650M D3HP AX - 1.0 - motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B650M D3HP AX - 1.0 - motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•B650M D3HP AX
Artikuls
•3328079
Intrastat
•84717020
Kopā pieejams (gab.)
•34
Tuvākā piegāde
•18.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
(supports Ryzen 7000/8000 Series)
Max Size
192 GB
Technology
DDR5
Bus Clock
5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 4400 MHz, 7200 MHz (O.C.), 5200 MHz, 7600 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2580 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces

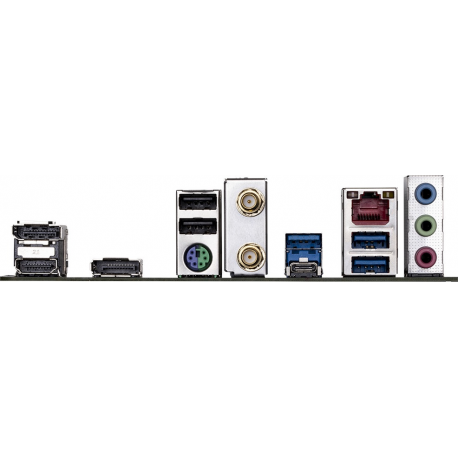

1 x HDMI ¦ 2 x DisplayPort ¦ 2 x USB 2.0 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial
Internal Interfaces
1 x SPI - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C 3.2 Gen 1 - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring
System voltage, fan fail warning, fan control, fan speed detection, temperature detection
Hardware Features
Q-Flash, Q-Flash Plus, Audio Noise Guard, RGB FUSION, DIY Friendly Design, GIGABYTE Smart Fan 6, 5+2+2 Phase Power Design, PCIe EZ Latch, High-end Audio Capacitors
Software Included
GIGABYTE Control Center, LAN manager, Norton Internet Security (OEM Version)
Width
24.4 cm
Depth
24.4 cm
