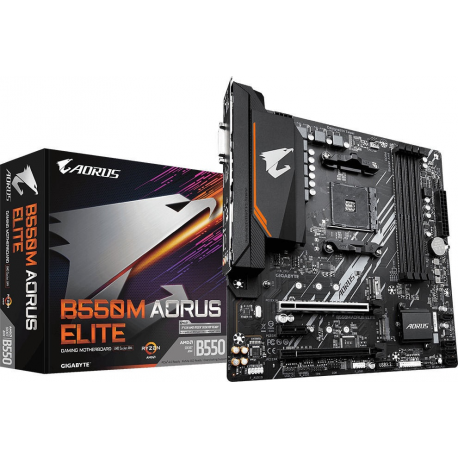

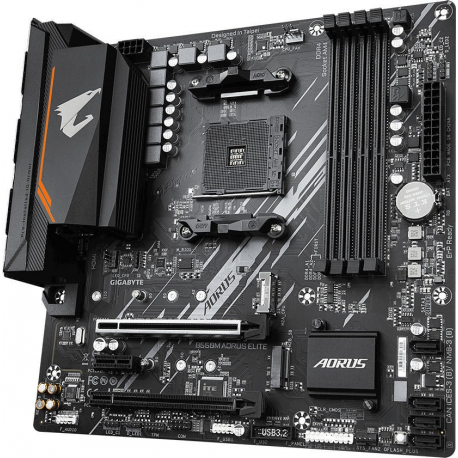

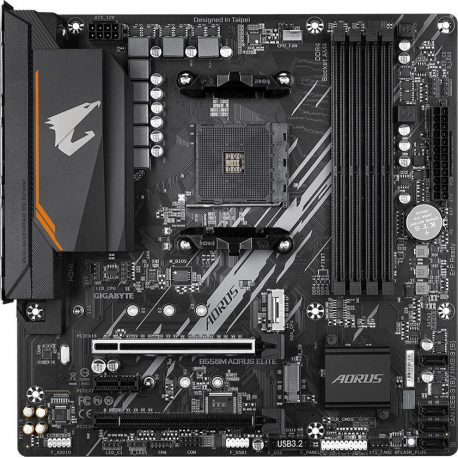

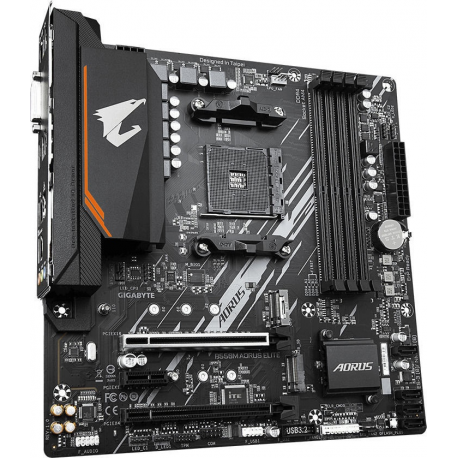

Gigabyte B550M AORUS ELITE - 1.0 - motherboard - micro ATX - Socket AM4 - AMD B550
Gigabyte B550M AORUS ELITE - 1.0 - motherboard - micro ATX - Socket AM4 - AMD B550
Ražotājs
•GIGABYTE
Ražotāja kods
•B550MAORUSELITE1.3
Artikuls
•3043339
Intrastat
•84717020
Pakas svars
•1.27 kg
Kopā pieejams (gab.)
•2
Tuvākā piegāde
•17.03.2026
Processor manufacturer
AMD
Processor socket
Socket AM4
Compatible processor series
3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Gen AMD Ryzen™ Threadripper™, AMD Ryzen Threadripper Pro 3rd Gen
Maximum number of SMP processors
1
Supported processor sockets
Socket AM4
Maximum internal memory supported by processor
128 GB
Supported memory types
DDR4-SDRAM
Number of memory slots
4
Maximum internal memory
128 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Supported memory clock speed (max)
4733 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 16GB, 32GB
Unbuffered memory
Yes
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
6
RAID levels
0, 1, 10
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Discrete graphics support
Yes
Number of displays supported
2
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Total number of SATA connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
Power fan connector
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
TPM connector
Yes
Serial port headers
1
12V power connector
Yes
RGB LED pin header
Yes

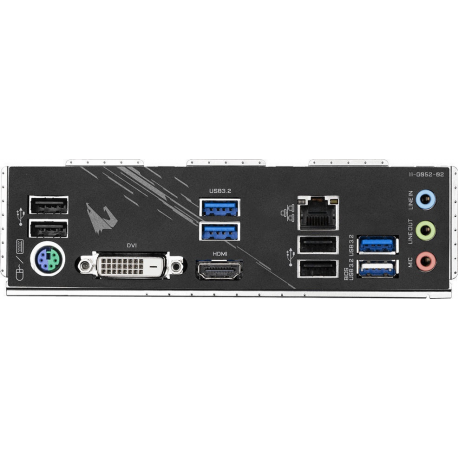

USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
DVI-D ports quantity
1
PS/2 ports quantity
1
HDMI version
2.1
Headphone outputs
1
Microphone in
Yes
Digital audio optical out
1
Serial ports quantity
1
USB connector type
USB Type-A
Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio output channels
7.1 channels
Audio chip
Realtek ALC887
Product colour
Brown
PC health monitoring
CPU, Fan, LED, Power supply, Temperature, Voltage
Cooling type
Active
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
PCI Express x1 slots
1
PCI Express x1 (Gen 3.x) slots
1
PCI Express x4 slots
1
PCI Express x16 slots
1
Number of M.2 (M) slots
2
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Harmonized System (HS) code
84733020
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Package width
265 mm
Package depth
265 mm
Package height
65 mm
Package weight
1.27 kg
Width
244 mm
Depth
244 mm
Height
35 mm
Cables included
SATA
Batteries included
Yes
Drivers included
Yes
Bundled software
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Warranty period
3 year(s)
