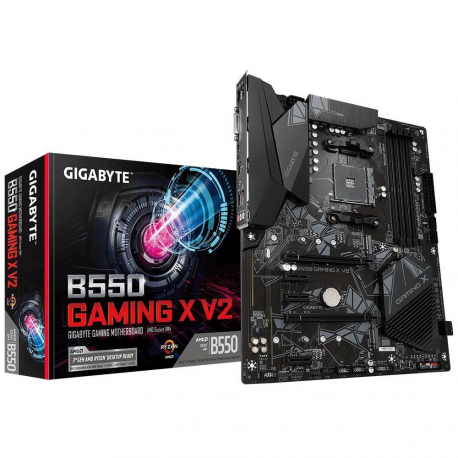

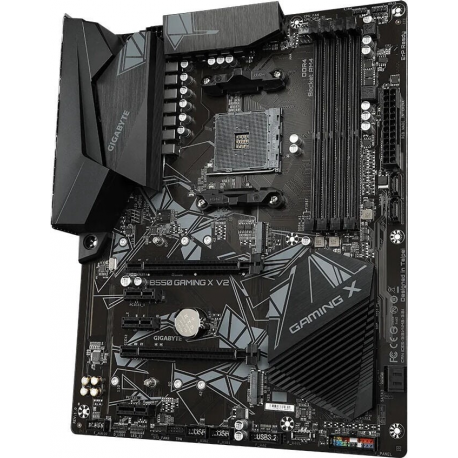

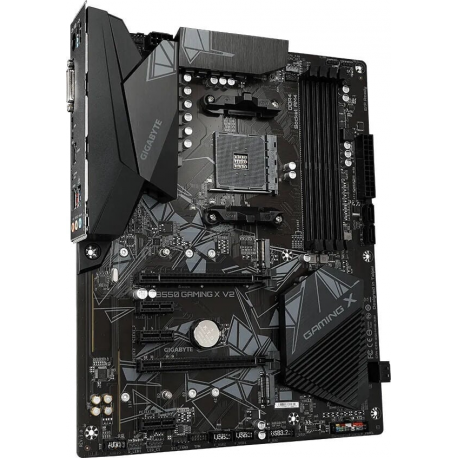

Gigabyte B550 GAMING X V2 - 1.0 - motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B550 GAMING X V2 - 1.0 - motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•B550 GAMING X V2
Artikuls
•3038806
Intrastat
•84717020
Kopā pieejams (gab.)
•15
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B550
Processor Socket
Socket AM4
Max Processors Qty
1
Compatible Processors
Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)
Max Size
128 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4733 MHz (O.C.)
Supported RAM Integrity Check
ECC (operate in non-ECC mode), non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, supported ECC modules operate in non-ECC mode
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC887
Compliant Standards
High Definition Audio
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 3nd Generation Ryzen with Radeon Graphics CPU)) ¦ 1 x PCIe 3.0 x16 (x2 mode) ¦ 3 x PCIe 3.0 x1
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2

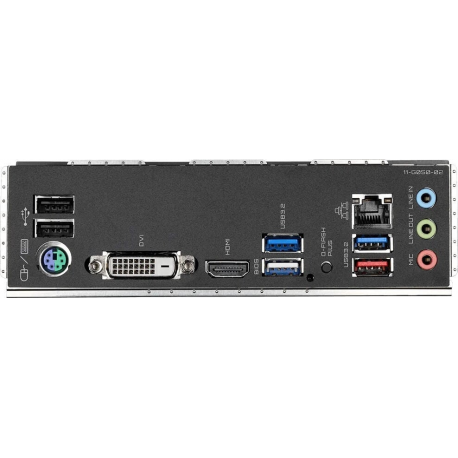

Interfaces
1 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI ¦ 1 x DVI-D ¦ 2 x USB 2.0 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
Hardware Features
Q-Flash, HDCP compliant, On/Off Charge, Q-Flash Plus, Game Boost, Audio Noise Guard, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, 10+3 Phase Power Design, pre-mounted I/O shield, Solid Pin Power Connectors, RGB FUSION 2.0
Software Included
Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
Compliant Standards
Plug and Play, HDCP 2.3
Width
30.5 cm
Depth
24.4 cm
