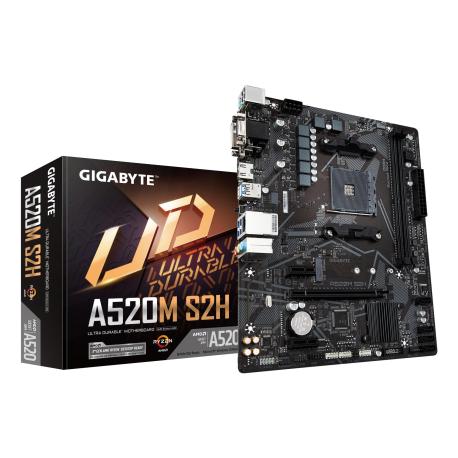

Gigabyte A520M S2H - 1.0 - motherboard - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte A520M S2H - 1.0 - motherboard - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•A520M S2H 1.3
Artikuls
•4159136
Intrastat
•84717020
Pakas svars
•0.74 kg
Kopā pieejams (gab.)
•14
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
AMD A520
Processor Socket
Socket AM4
Max Processors Qty
1
Compatible Processors
Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)
Max Size
64 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4866 MHz (O.C.), 5000 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Allocated RAM Size
16 GB
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC887
Compliant Standards
High Definition Audio
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces
1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x VGA
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, WfM 2.0 support
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
Hardware Features
Q-Flash, On/Off Charge, Ultra Durable, RGB FUSION 2.0, GIGABYTE Smart Fan 5, Q-Flash Plus, Anti-Sulfur Design, Audio Noise Guard, GIGABYTE Double Locking Bracket, Solid Pin Power Connectors, 4+3 Phase Power Design, All-Solid Capacitor motherboard Design
Software Included
Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
Width
24.4 cm
Depth
20.5 cm
