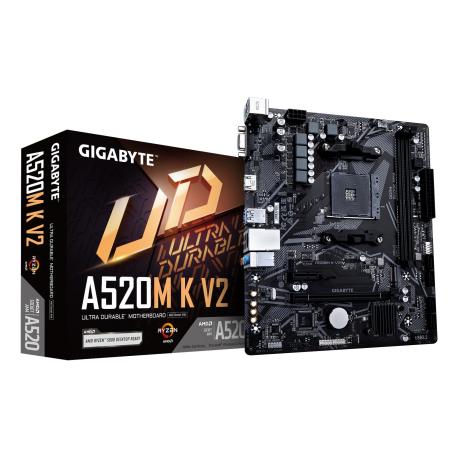

Gigabyte A520M K V2 - 1.0 - motherboard - micro ATX - Socket AM4 - AMD A520
Gigabyte A520M K V2 - 1.0 - motherboard - micro ATX - Socket AM4 - AMD A520
Ražotājs
•GIGABYTE
Ražotāja kods
•A520MKV21.1
Artikuls
•3367258
Intrastat
•84717020
Pakas svars
•0.675 kg
Kopā pieejams (gab.)
•100
Tuvākā piegāde
•16.03.2026
Processor manufacturer
AMD
Processor socket
Socket AM4
Compatible processor series
AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen
Supported processor sockets
Socket AM4
Supported memory types
DDR4-SDRAM
Number of memory slots
2
Maximum internal memory
64 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
Supported memory clock speed (max)
5100 MHz
Unbuffered memory
Yes
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Number of storage drives supported
5
RAID support
Yes
RAID levels
0, 1, 10
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
EPS power connector (8-pin)
Yes
TPM connector
Yes
12V power connector
Yes
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
PS/2 ports quantity
1
HDMI version
2.1
Headphone outputs
3
Microphone in
Yes
USB connector type
USB Type-A
Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD A520
Audio output channels
7.1 channels
PC health monitoring
Fan, Temperature, Voltage
Windows operating systems supported
Windows 10 x64, Windows 11 x64
PCI Express x1 slots
1
PCI Express x16 slots
1
Number of M.2 (M) slots
1
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Package width
265 mm
Package depth
235 mm
Package height
52 mm
Package weight
675 g
Width
233 mm
Depth
198 mm
Height
35 mm
Cables included
SATA
Batteries included
Yes
Bundled software
Norton Internet Security
Warranty period
3 year(s)
