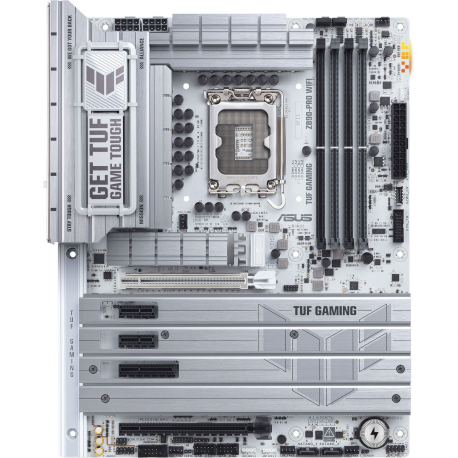

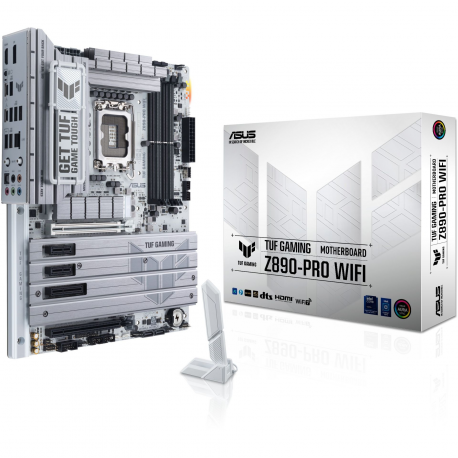

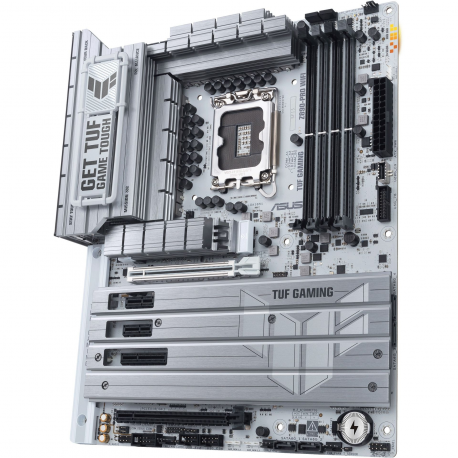

ASUS TUF GAMING Z890-PRO WIFI - Motherboard - ATX - LGA1851 Socket - Z890 Chipset - USB 3.2 Gen 1, USB4 - Wi-Fi 7, Bluetooth, 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS TUF GAMING Z890-PRO WIFI - Motherboard - ATX - LGA1851 Socket - Z890 Chipset - USB 3.2 Gen 1, USB4 - Wi-Fi 7, Bluetooth, 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•ASUS
Ražotāja kods
•90MB1IR0-M0EAY0
Artikuls
•4165719
Intrastat
•84717020
Kopā pieejams (gab.)
•8
Tuvākā piegāde
•21.04.2026
Product Type
Motherboard - ATX
Chipset Type
Intel Z890
Processor Socket
LGA1851 Socket
Max Processors Qty
1
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Max Size
192 GB
Technology
DDR5
Bus Clock
4533 MHz (O.C.), 4300 MHz (O.C.), 4000 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1220P
Compliant Standards
High Definition Audio
Network Interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 4.0 x4
2 x PCIe 4.0 x1
2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
1 x M.2 socket (2280 M.2 Key M slot)
1 x M.2 socket (2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA
PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
1 x DisplayPort
1 x HDMI
2 x Thunderbolt 4/DisplayPort/USB4
6 x USB 3.2 Gen 2
2 x aerial
1 x LAN (2.5Gigabit Ethernet)
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x SPDIF out
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x serial - header
1 x audio - header
1 x Thunderbolt 4 - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS Enhanced Memory Profile (AEMP) III, CUDIMM support, CrashFree BIOS 3, Preboot eXecution Environment (PXE), TUF LANGuard, BIOS FlashBack button, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, ESD Guards, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool, ASUS SafeDIMM, BIOS FlashBack LED, CPU Socket lever protector, M.2 heatsink, M.2 heatsink backplate, pre-mounted I/O shield, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, DIY Friendly Design, 16+1+2+1 Phase Power Design, NPU Boost, Q-Release Slim, AI Overclocking, AI Networking II, 8 Layer PCB

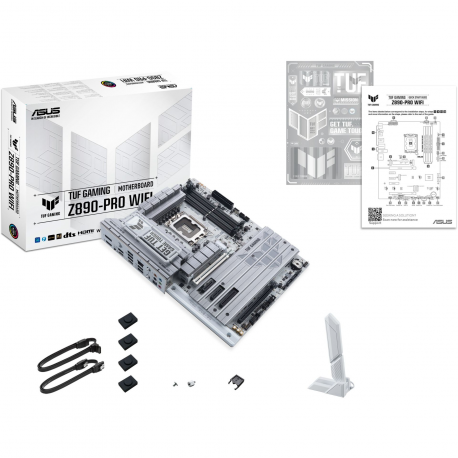

Included Accessories
ASUS Wi-Fi Q-antenna, M.2 Q-Slide, 2 x M.2 rubber package, M.2 screw package, TUF GAMING sticker, TUF GAMING removable nameplate
Cables Included
2 x SATA Express cable
Software Included
Adobe Creative Cloud (free trial), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 days trial), TurboV Core, USB Wattage Watcher, WinRAR (40 days trial), ASUS AI Advisor
Compliant Standards
DisplayPort 1.4
Width
30.5 cm
Depth
24.4 cm
