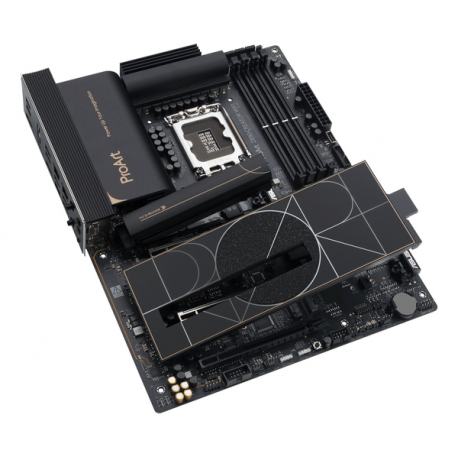

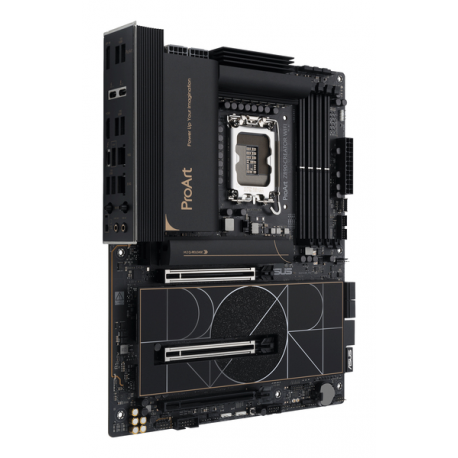

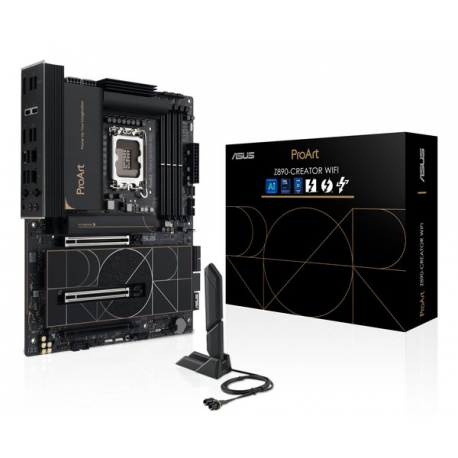

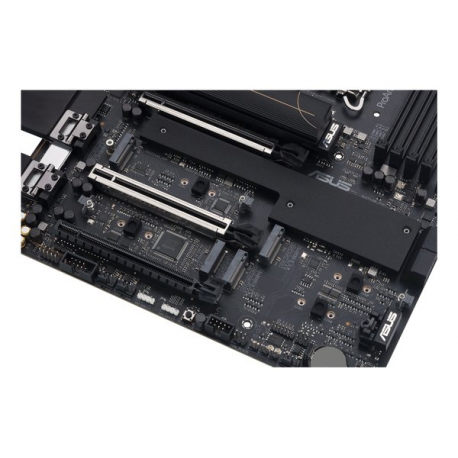

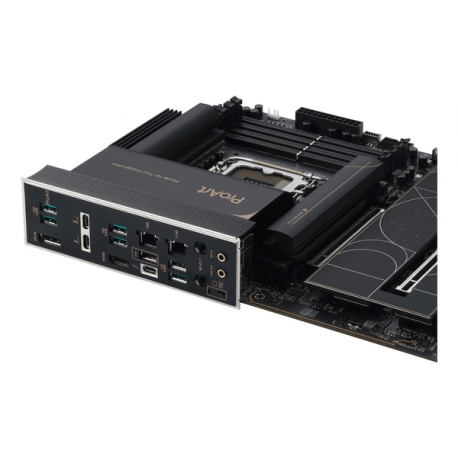

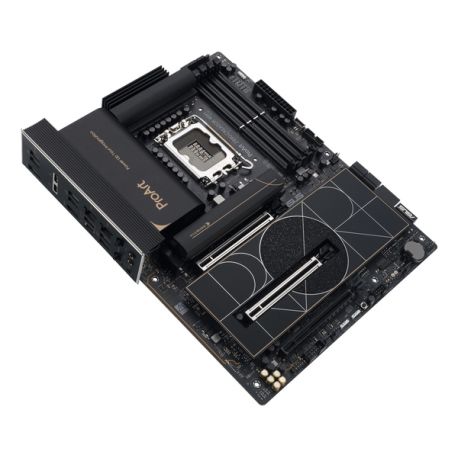

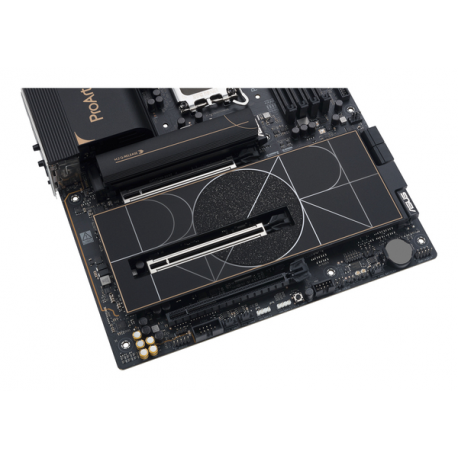

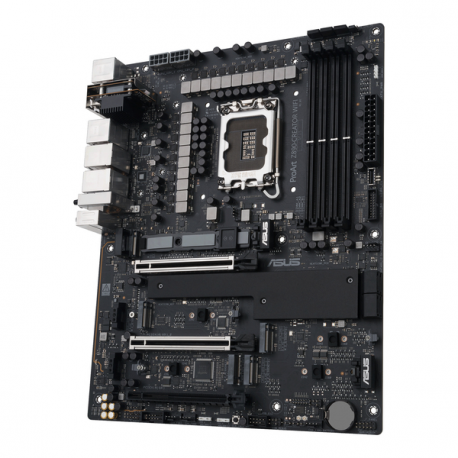

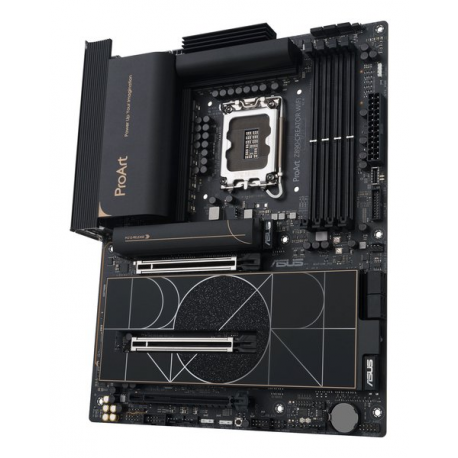

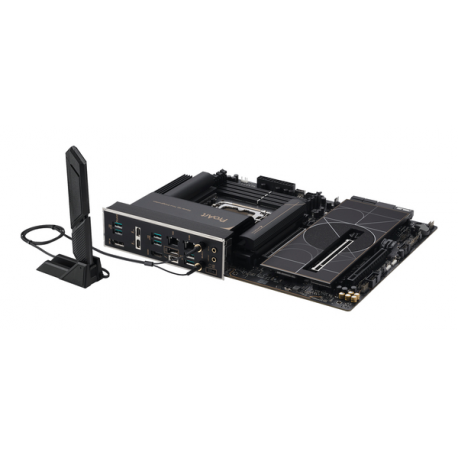

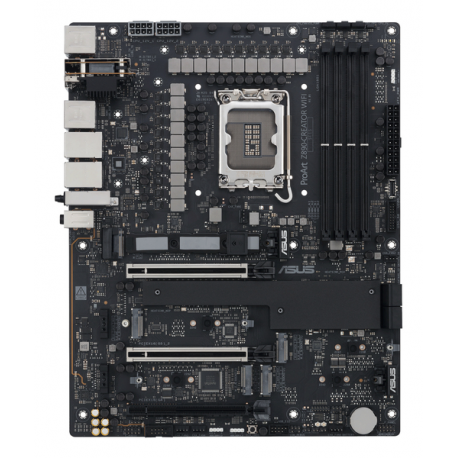

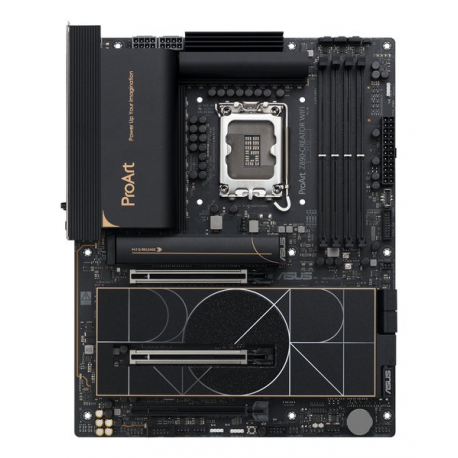

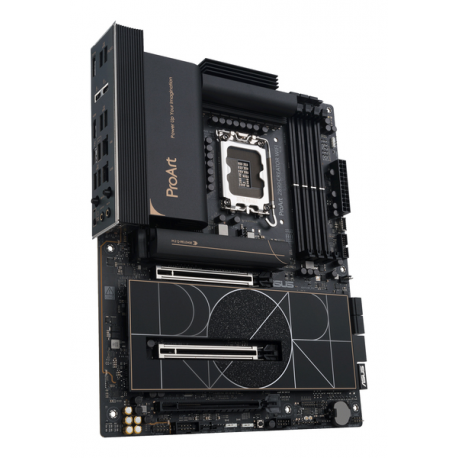

ASUS ProArt Z890-CREATOR WIFI - Motherboard - ATX - LGA1851 Socket - Z890 Chipset - USB4, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - 10 Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi 7 - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS ProArt Z890-CREATOR WIFI - Motherboard - ATX - LGA1851 Socket - Z890 Chipset - USB4, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - 10 Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi 7 - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•ASUS
Ražotāja kods
•90MB1JD0-M0EAY0
Artikuls
•4318035
Intrastat
•84717020
Kopā pieejams (gab.)
•32
Tuvākā piegāde
•30.03.2026
Product Type
Motherboard - ATX
Chipset Type
Intel Z890
Processor Socket
LGA1851 Socket
Max Processors Qty
1
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Max Size
192 GB
Technology
DDR5
Bus Clock
4533 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1220P
Compliant Standards
High Definition Audio
Network Interfaces
10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Expansion Slots
1 x CPU
4 x DIMM 288-pin
2 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
4 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features
Intel Rapid Storage Technology

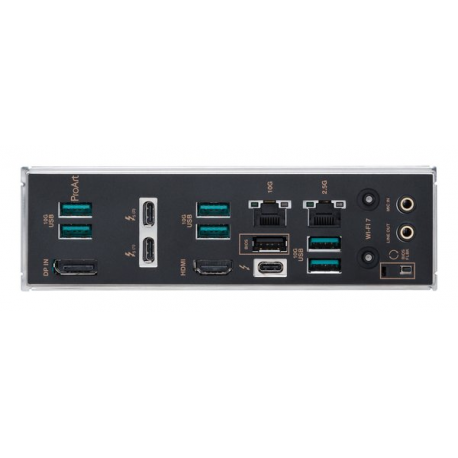

Interfaces
1 x Thunderbolt 4
2 x Thunderbolt 5
6 x USB 3.2 Gen 2
1 x USB 2.0
1 x microphone - mini-jack
1 x audio line-out - mini-jack
1 x DisplayPort input
1 x HDMI
1 x LAN (10Gigabit Ethernet)
1 x LAN (2.5Gigabit Ethernet)
2 x aerial
Internal Interfaces
2 x USB 2.0 - header
1 x USB-C 3.2 Gen 2x2 - header
2 x USB 3.2 Gen 1 - header
1 x serial - header
1 x audio - header
1 x SPI - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, Preboot eXecution Environment (PXE), CrashFree BIOS 3, LANGuard, CUDIMM support, ASUS Enhanced Memory Profile (AEMP) III, BIOS FlashBack button, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool II, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, BIOS FlashBack LED, Clear CMOS Button, CPU Socket lever protector, ESD Guards, M.2 heatsink, M.2 heatsink backplate, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, pre-mounted I/O shield, Q-Antenna, Q-Connector, Q-Dashboard, Q-DIMM, Q-LED, Q-Release Slim, VRM heatsink design, 16+1+2+2 Phase Power Design, NPU Boost, AI Overclocking, AI Cooling II, AI Networking II, PCIe Slot Q-Release, 8 Layer PCB, ProCool II Power Connector

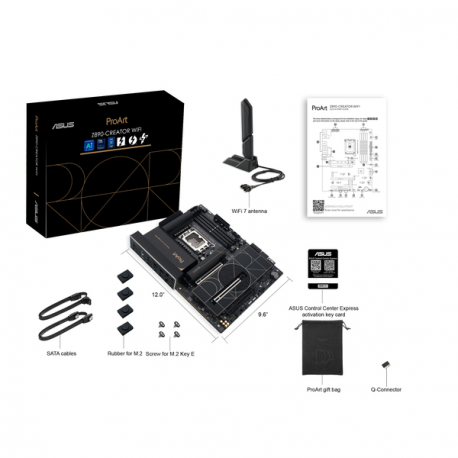

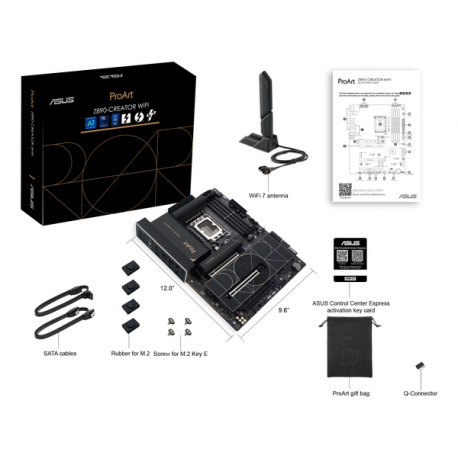

Included Accessories
ASUS Wi-Fi Q-antenna, Q-Connector, 2 x M.2 Q-Latch, 2 x M.2 rubber package, ACC Express Activation Key Card, ASUS ProArt accessory bag
Cables Included
2 x Serial ATA cable
Software Included
Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS DriverHub, ASUS GlideX, ASUS CPU-Z, ASUS ProArt Creator Hub, TurboV Core, USB Wattage Watcher, Adobe Creative Cloud (free trial), Norton 360 Deluxe (60 days trial), WinRAR (40 days trial), ASUS Control Center Express
Compliant Standards
DisplayPort 2.1
Width
30.5 cm
Depth
24.4 cm
