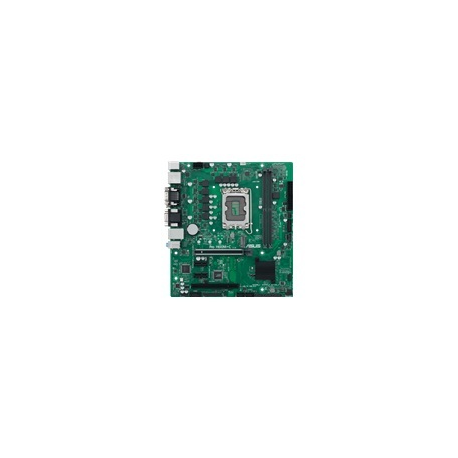

ASUS Pro H610M-C-CSM - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS Pro H610M-C-CSM - Motherboard - micro ATX - LGA1700 Socket - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•ASUS
Ražotāja kods
•90MB1AT0-M0EAYC
Artikuls
•1894526
Intrastat
•84717020
Kopā pieejams (gab.)
•100
Tuvākā piegāde
•30.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
Intel H610
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max Size
64 GB
Technology
DDR5
Bus Clock
4800 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2
Interfaces
1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x DisplayPort ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D ¦ 1 x serial
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x parallel - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Jack retasking, ASUS EZ DIY, audio jack detect technology, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Moistureproof PCB, Intel Turbo Boost Max Technology 3.0, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, ASUS Control Center Express (ACC Express), Q-LED Core
Included Accessories
1 x M.2 screw, IO shield, ACC Express Activation Key Card
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, ASUS Control Center Express
Compliant Standards
FCC, RoHS, NIST SP800-147
Width
24.4 cm
Depth
22 cm
