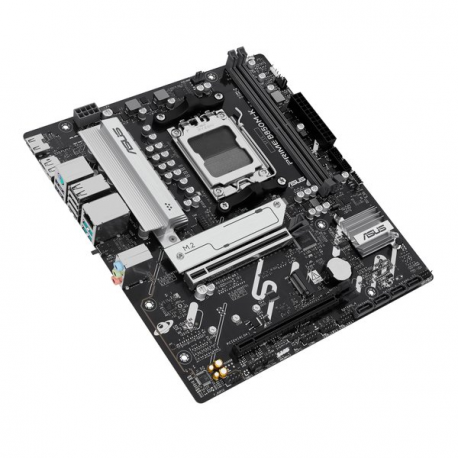

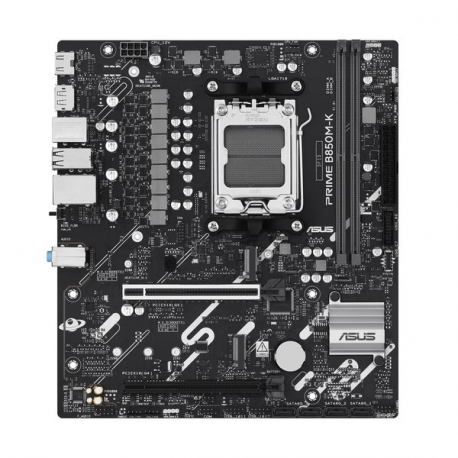

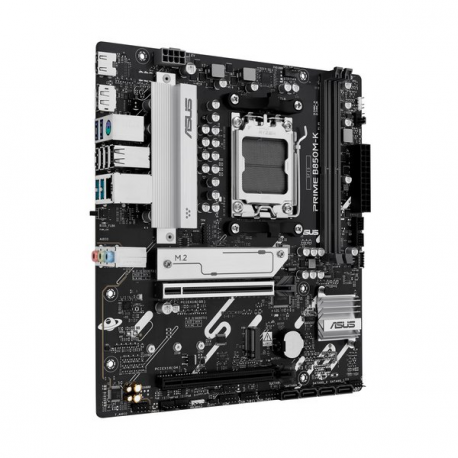

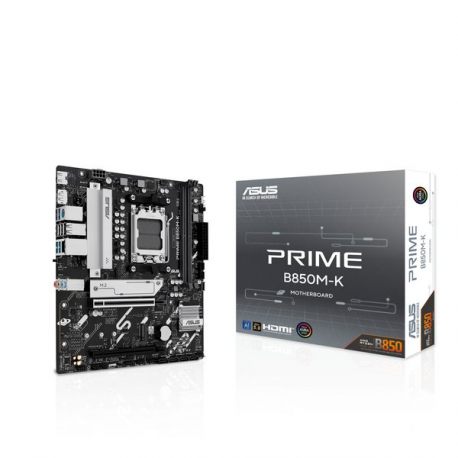

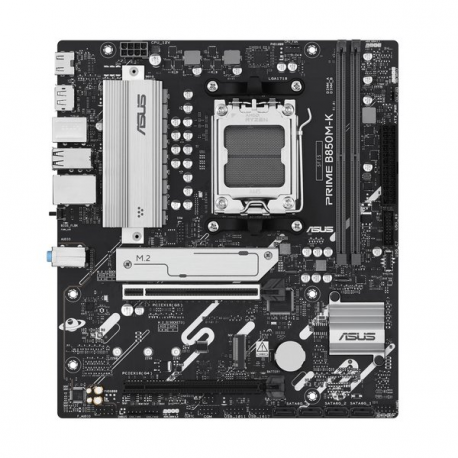

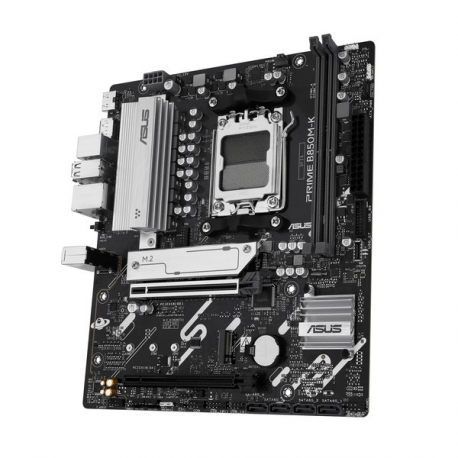

ASUS PRIME B850M-K - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS PRIME B850M-K - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•ASUS
Ražotāja kods
•90MB1LV0-M0EAY0
Artikuls
•4318039
Intrastat
•84717020
Kopā pieejams (gab.)
•18
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
AMD B850
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
(supports Ryzen 7000/8000/9000 Series)
Max Size
256 GB
Technology
DDR5
Bus Clock
4000 MHz, 4100 Mhz (O.C), 4200 MHz (O.C.)
Supported RAM Integrity Check
On-die ECC, non-ECC, ECC
Features
Dual channel memory architecture, AMD EXPO technology
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU
2 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x M.2 socket (2280 M.2 slot)
1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA
PCIe 4.0 -connectors: 1 x M.2
PCIe 5.0 -connectors: 1 x M.2
RAID Features
AMD RAID Xpert2 Technology

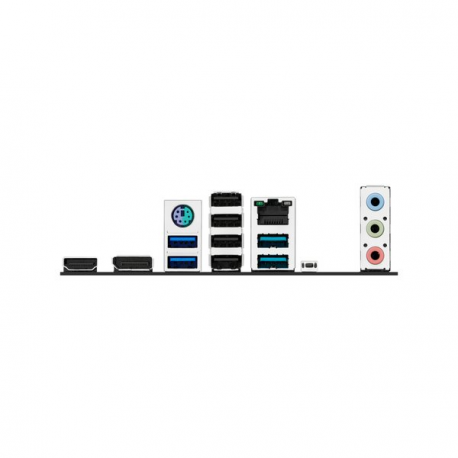

Interfaces
1 x HDMI
1 x DisplayPort
1 x PS/2 keyboard / mouse
2 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x audio line-in - mini-jack
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x serial - header
1 x SPDIF out - header
1 x SPI - header
1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash
Sleep / Wake Up
Wake on PME, wake on LAN (WOL)
Hardware Features
ASUS Enhanced Memory Profile (AEMP), 8+2+1 Phase Power Design, ASUS OptiMem II, LANGuard, audio jack detect technology, jack retasking, anti-pop function, BIOS FlashBack button, Water Pump Header, BMC remote management, ASUS 5X Protection III, ASUS DIGI+ VRM, ESD Guards, overvoltage protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-Code, M.2 Q-Latch, ASUS Q-Connector, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, CPU Socket lever protector, BIOS FlashBack LED, CrashFree BIOS 3, DIY Friendly Design, Windows 11 compatible, Preboot eXecution Environment (PXE), ASUS Enhanced Memory Profile (AEMP) III

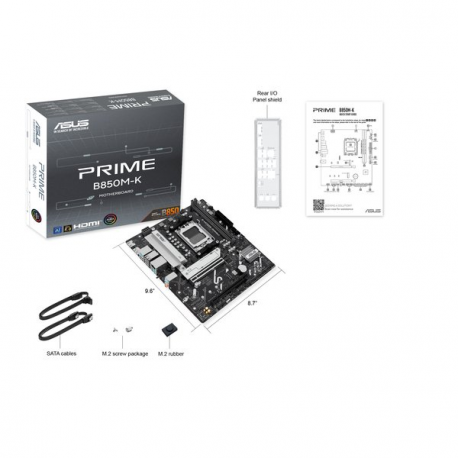

Included Accessories

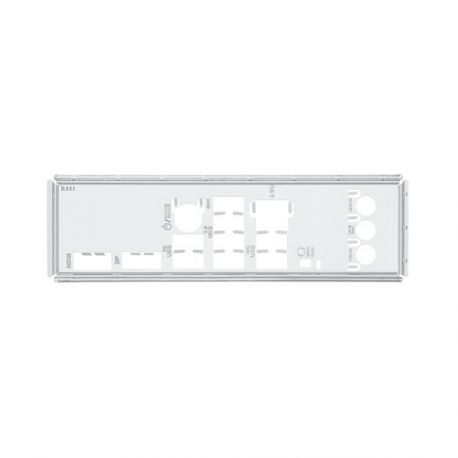

IO shield, M.2 screw package, M.2 backplate rubber package
Cables Included
2 x Serial ATA cable
Software Included
Armoury Crate, ASUS Fan Xpert 4, ASUS CPU-Z, Adobe Creative Cloud (free trial), Norton 360 Deluxe (60 days trial), WinRAR, ASUS Control Center Express
Width
24.4 cm
Depth
22.1 cm
