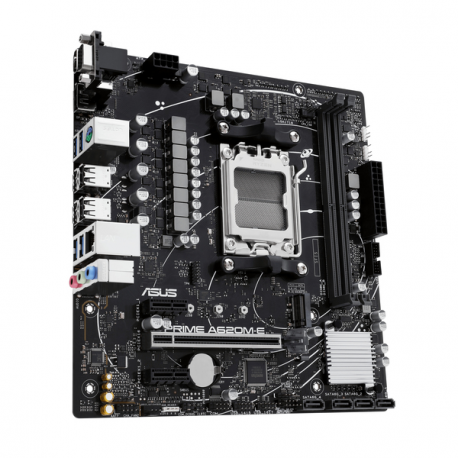

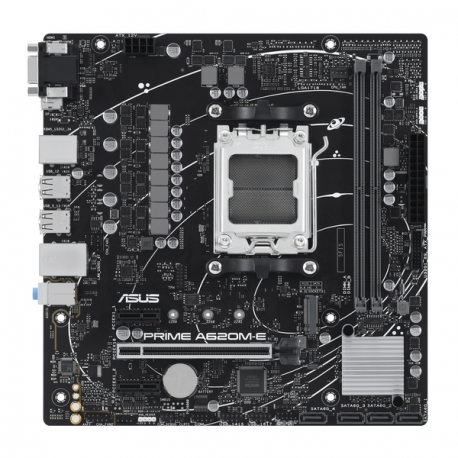

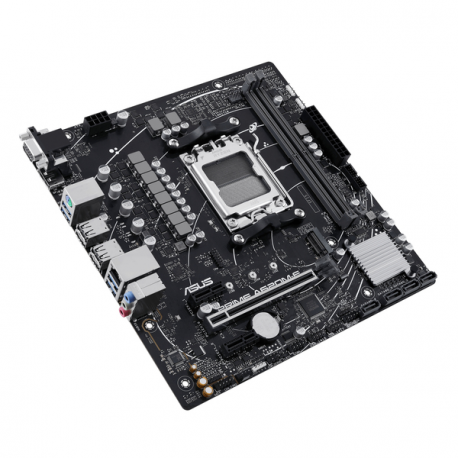

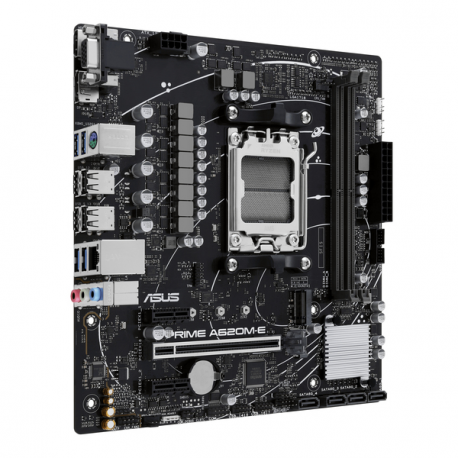

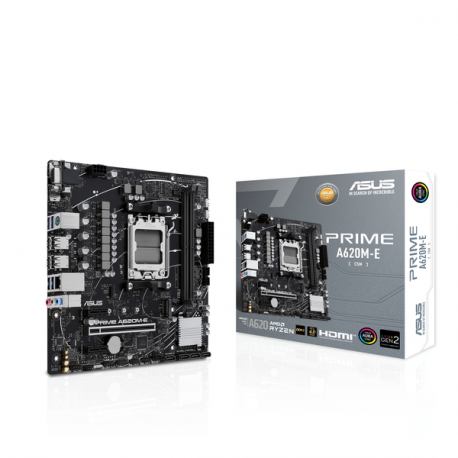

ASUS Prime A620M-E-CSM - Motherboard - micro ATX - Socket AM5 - AMD A620 Chipset - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS Prime A620M-E-CSM - Motherboard - micro ATX - Socket AM5 - AMD A620 Chipset - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•ASUS
Ražotāja kods
•90MB1F50-M0EAYC
Artikuls
•3177092
Intrastat
•84717020
Pakas svars
•0.6 kg
Kopā pieejams (gab.)
•20
Tuvākā piegāde
•30.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
AMD A620
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000 Series, Maximum TDP 120 Watt)
Max Size
96 GB
Technology
DDR5
Bus Clock
5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
RAID Features
AMD RAID Xpert2 Technology
Interfaces

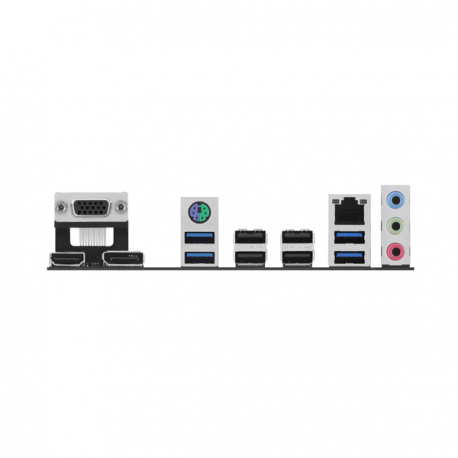

1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack
Internal Interfaces
2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header ¦ 1 x SPDIF - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS Q-Design, Q-DIMM, Q-Slot, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, overvoltage protection, AURA RGB Lighting Control, ASUS 5X Protection III, ASUS Aura Sync, ASUS SafeSlot Core+, Q-LED Core

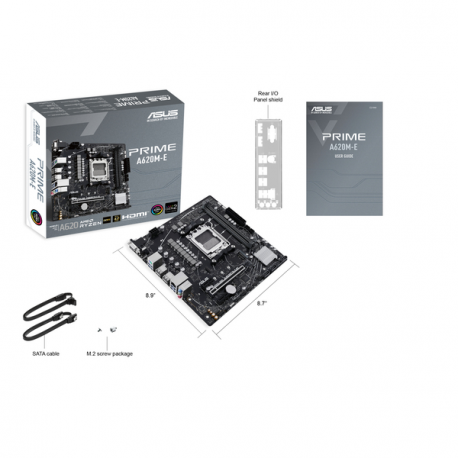

Included Accessories

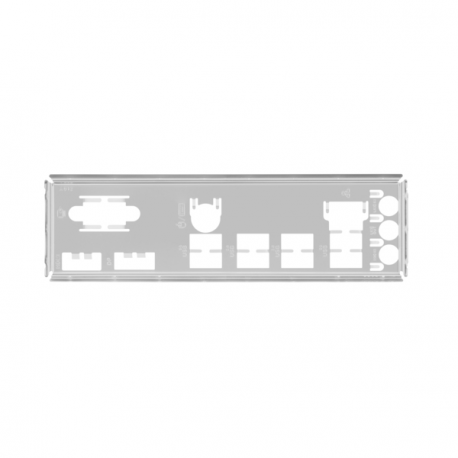

IO shield, ACC Express Activation Key Card, M.2 screw package
Cables Included
2 x Serial ATA cable
Software Included
ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, ASUS AURA Creator, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert 2+
Width
22.6 cm
Depth
22.1 cm
