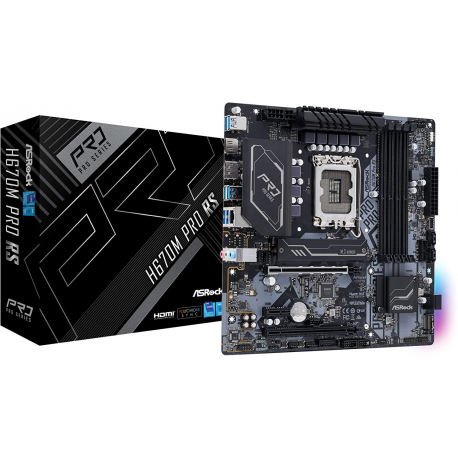

ASRock H670M Pro RS - Motherboard - micro ATX - LGA1700 Socket - H670 Chipset - USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASRock H670M Pro RS - Motherboard - micro ATX - LGA1700 Socket - H670 Chipset - USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•ASROCK
Ražotāja kods
•90-MXBHK0-A0UAYZ
Artikuls
•1889575
Intrastat
•84717020
Kopā pieejams (gab.)
•68
Tuvākā piegāde
•30.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
Intel H670
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th Generation Intel Core)
Max Size
128 GB
Technology
DDR4
Bus Clock
4800 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Intel I219V
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
1 x M.2 socket (Key E)
1 x PCIe 3.0 x16 (x4 mode)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x HDMI
1 x LAN (Gigabit Ethernet)
1 x DisplayPort
2 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
Internal Interfaces
4 x USB 3.2 Gen 1 - header
1 x audio - header
1 x Thunderbolt - header
1 x USB-C Gen 1 - header
4 x USB 2.0 - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection
Sleep / Wake Up
Wake on LAN (WOL)
Hardware Features
ASRock Instant Flash, 7 Phase Power Design, AMD CrossFireX technology support, ASRock Internet Flash, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, Dr.MOS MOSFET, Nahimic Audio Enhacer, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Steel Slots, Premium Power Choke, Intel Turbo Boost Max Technology 3.0, ASRock POST Status Checker (PSC), ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock USB 3.2 Gen2, Intel Hybrid Technology
Included Accessories
I/O back plate, 3 x M.2 screws, standoff for M.2 socket
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock XFast LAN, ASRock Polychrome SYNC
Compliant Standards
FCC, EuP Ready, ErP Ready
Width
24.4 cm
Depth
24.4 cm
