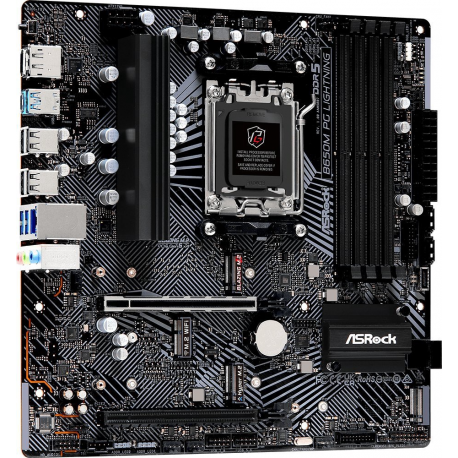

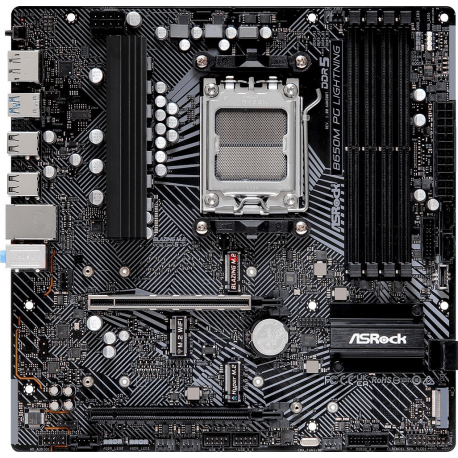

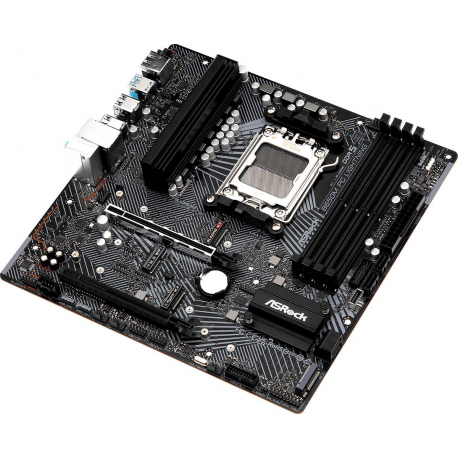

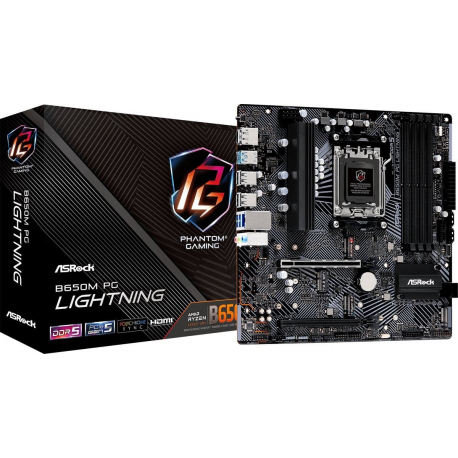

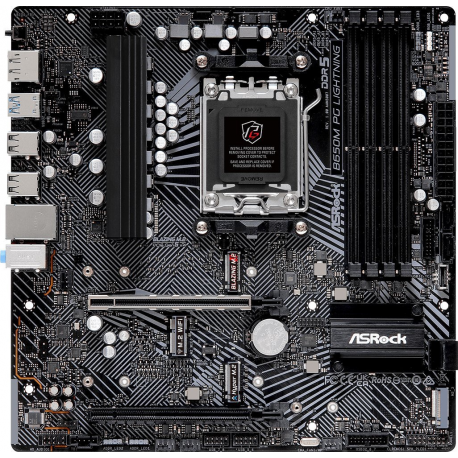

ASRock B650M PG Lightning - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASRock B650M PG Lightning - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•ASROCK
Ražotāja kods
•B650MPGLIGHTNING
Artikuls
•3328769
Intrastat
•84717020
Pakas svars
•1.53 kg
Kopā pieejams (gab.)
•8
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000 Series)
Max Size
192 GB
Technology
DDR5
Bus Clock
7200 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Dragon RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x M.2 socket (Key E) ¦ 3 x M.2 socket (2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces

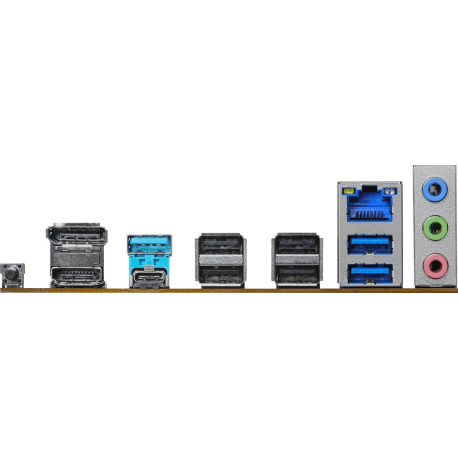

1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (front surround) - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces
4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x SPI - header ¦ 1 x speaker - header ¦ 1 x audio - header ¦ 1 x Thunderbolt 4 - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS
Hardware Features
6+2+1 Phase Power Design, Water Pump Header, ASRock Auto Driver Installer, BIOS FlashBack button, Dr.MOS MOSFET, ASRock OC Tuner, AMD Precision Boost Overdrive (PBO), ASRock Steel Slot Gen4, Nahimic Audio Enhacer, ASRock Instant Flash
Included Accessories
IO shield, 4 x M.2 screws
Cables Included
2 x Serial ATA cable
Software Included
ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC, ASRock Phantom Gaming LAN Software
Compliant Standards
RoHS, UKCA, FCC, EuP Ready, ErP Ready
Width
24.4 cm
Depth
24.4 cm
