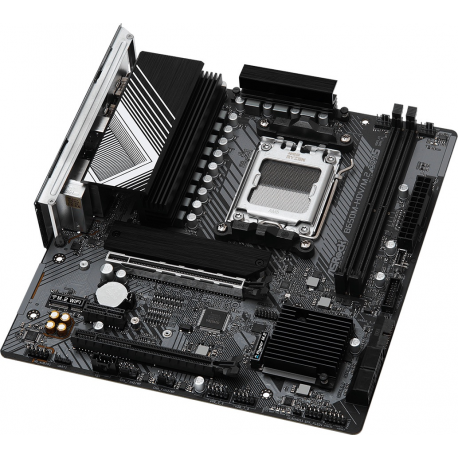

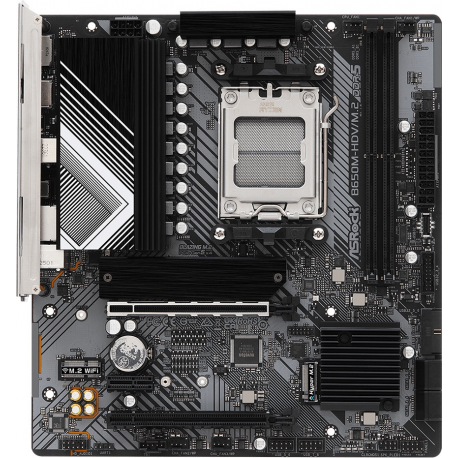

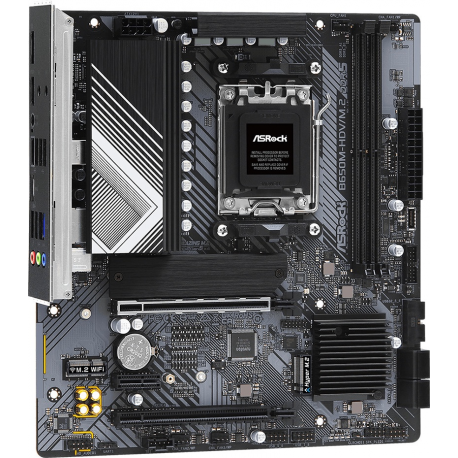

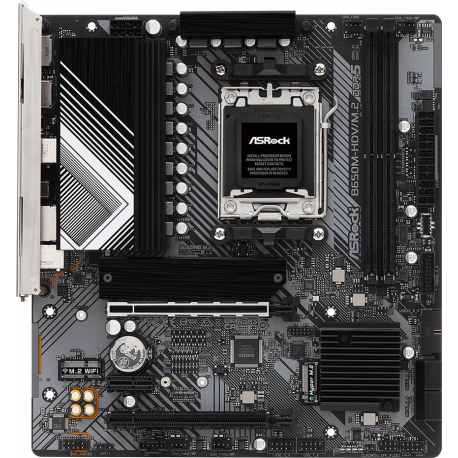

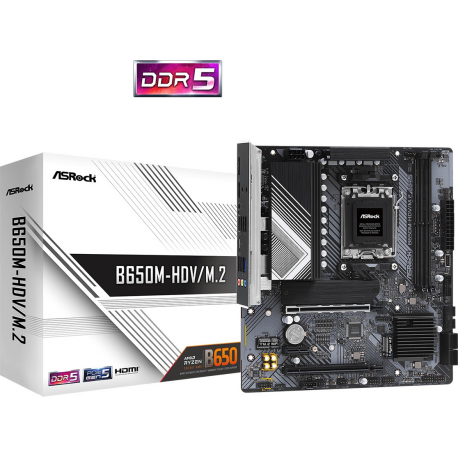

ASRock B650M-HDV / M.2 - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASRock B650M-HDV / M.2 - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•ASROCK
Ražotāja kods
•B650M-HDV/M.2
Artikuls
•3140639
Intrastat
•84717020
Kopā pieejams (gab.)
•6
Tuvākā piegāde
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000 Series)
Max Size
64 GB
Technology
DDR5
Bus Clock
6400 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Dragon RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces

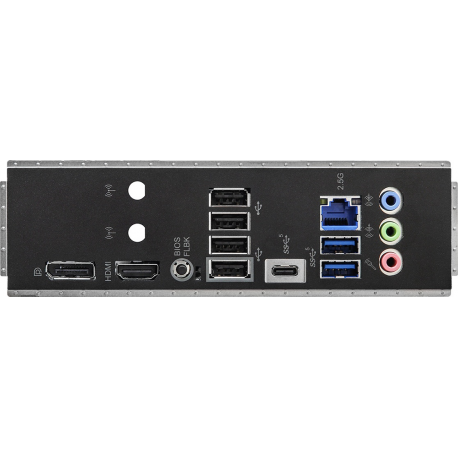

1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x speaker - header ¦ 1 x Thunderbolt - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS
Hardware Features
ASRock Instant Flash, ASRock Full HD UEFI, Dr.MOS MOSFET, ASRock Steel Slots, 2oz Copper PCB, Water Pump Header, pre-mounted I/O shield, ASRock POST Status Checker (PSC), 8+2+1 Phase Power Design, ASRock Auto Driver Installer, BIOS FlashBack button, 50A Power Stage
Included Accessories
2 x M.2 screws
Cables Included
2 x Serial ATA cable
Software Included
ASRock A-Tuning
Compliant Standards
FCC Part 15, EuP Ready, ErP Ready, RoHS 2011/65/EU, EMC 2014/30/EU, DisplayPort 1.4, HDCP 2.3
Width
22.6 cm
Depth
24.4 cm
