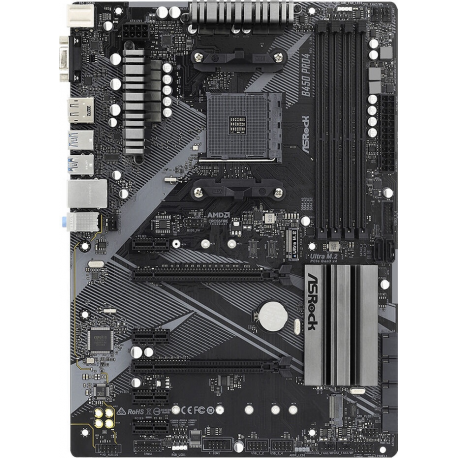

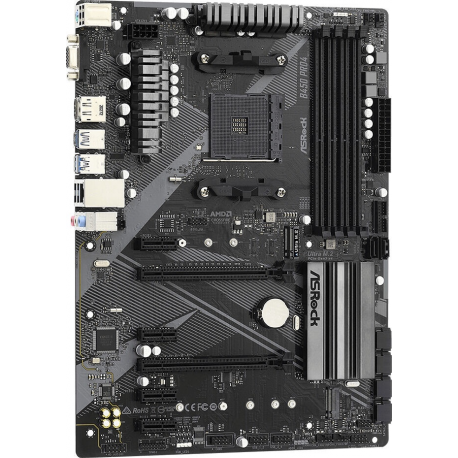

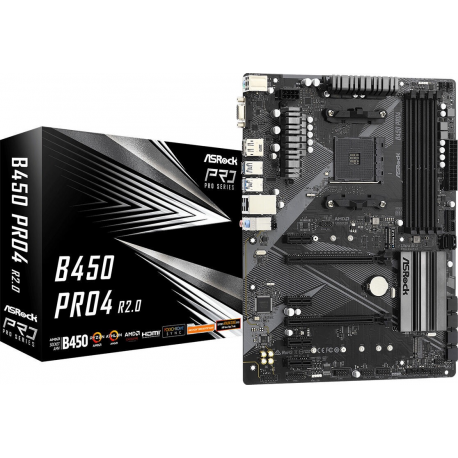

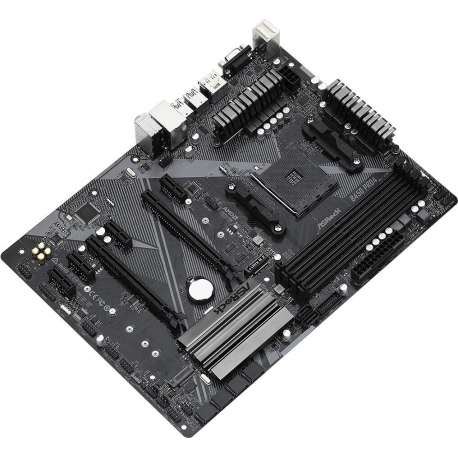

ASRock B450 Pro4 R2.0 - Motherboard - ATX - Socket AM4 - AMD B450 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASRock B450 Pro4 R2.0 - Motherboard - ATX - Socket AM4 - AMD B450 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•ASROCK
Ražotāja kods
•90-MXBEE0-A0UAYZ
Artikuls
•1841461
Intrastat
•84717020
Kopā pieejams (gab.)
•100
Tuvākā piegāde
•30.03.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B450
Processor Socket
Socket AM4
Max Processors Qty
1
Compatible Processors
Ryzen
Max Size
128 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, supported ECC modules operate in non-ECC mode
Max Allocated RAM Size
2 GB
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC892/ALC897
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8111H
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (dual x16, x4 mode; single card: x16 mode) ¦ 4 x PCIe 2.0 x1
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x Ultra M.2 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA
Interfaces

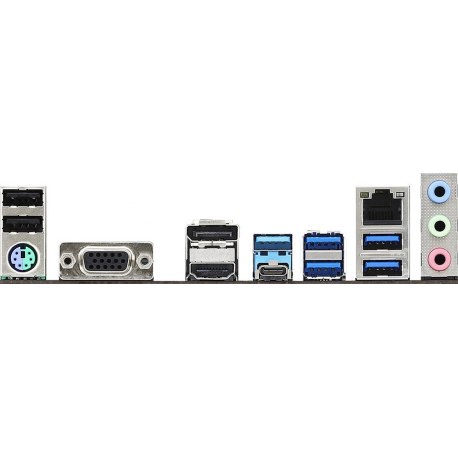

1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
Multilingual BIOS, JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up
Wake on LAN (WOL)
Hardware Features
ASRock Instant Flash, HDCP compliant, 15µ Gold Contact, Loss-less content protection technology, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, 10 Phase Power Design, ASRock Ultra M.2, Premium Power Choke, 2oz Copper PCB
Included Accessories
I/O back plate, 2 x M.2 screws
Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome RGB
Compliant Standards
Plug and Play, FCC, EuP Ready, ErP Ready, DisplayPort 1.2, HDCP 1.4
Width
30.5 cm
Depth
22.4 cm
