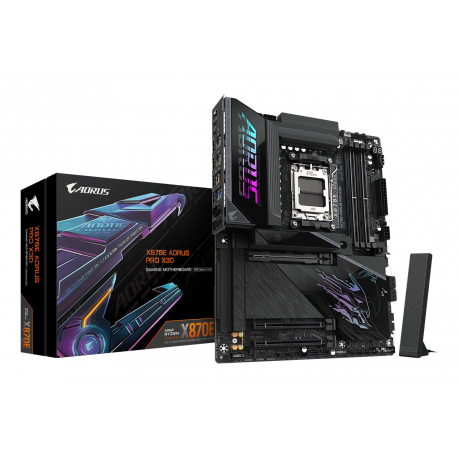

AORUS X870E PRO X3D - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2 - 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
AORUS X870E PRO X3D - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2 - 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•X870E A PRO X
Artikuls
•4488857
Intrastat
•84717020
Kopā pieejams (gab.)
•8
Tuvākā piegāde
•08.04.2026
Product Type
Motherboard - ATX
Chipset Type
AMD X870E
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
(supports Ryzen 7000/8000/9000 Series)
Max Size
256 GB
Technology
DDR5
Bus Clock
9000 MT/s (O.C.), 8800 MT/s (O.C.), 8600 MT/s (O.C.), 8400 MT/s (O.C.), 8200 MT/s (O.C.), 8000 MT/s (O.C.), 7800 MT/s (O.C.), 7600 MT/s (O.C.), 7200 MT/s (O.C.), 7000 MT/s (O.C.), 6800 MT/s (O.C.), 6600 MT/s (O.C.), 6400 MT/s (O.C.), 6200 MT/s (O.C.), 6000 MT/s (O.C.), 5600 MT/s (O.C.), 5200 MT/s, 4800 MT/s
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1220
Compliant Standards
High Definition Audio
Network Controller
Qualcomm QCNCM865
Network Interfaces
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x16 (x2 mode) ¦ 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
1 x LAN (5Gigabit Ethernet) ¦ 1 x HDMI ¦ 5 x USB 3.2 Gen 2 ¦ 2 x USB-C 3.2 Gen 2 ¦ 2 x USB4/DisplayPort ¦ 3 x USB 3.2 Gen 1 ¦ 2 x aerial ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x SPDIF out
Internal Interfaces
4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring
System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control, noise detection
Hardware Features
Reset button, power button, Clear CMOS Button, Q-Flash Plus button, Q-Flash, Q-Flash Plus, DIY Friendly Design, 18+2+2 Phase Power Design, 2x Copper PCB, 8 Layer PCB, M.2 EZ Flex Design, Premium Power Choke, Thermal Baseplate, VRM Thermal Armor Advanced, M.2 Thermal Guard L, M.2 Thermal Guard Ext., EZ Debug LED, M.2 EZ Match, PCIe EZ Latch Plus, RGB FUSION, WIFI EZ-Plug, X3D Turbo Mode 2.0, Ultra Durable, AI Overclocking, GIGABYTE Smart Fan 6, PCIe Ultra Durable Slot X
Included Accessories
2 x M.2 SSD thick/thin rubber pad, DDR Wind Blade, G-Connector, noise detection cable, Wi-Fi aerial
Cables Included
2 x Serial ATA cable
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version), HWiNFO
Compliant Standards
DisplayPort 1.4, HDCP 2.3
Width
30.5 cm
Depth
24.4 cm
