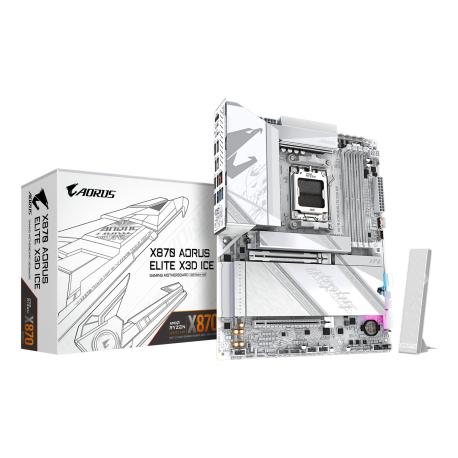

AORUS X870 ELITE X3D ICE - Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2 - 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
AORUS X870 ELITE X3D ICE - Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2 - 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Ražotājs
•GIGABYTE
Ražotāja kods
•X870 A ELITE X ICE
Artikuls
•4466316
Intrastat
•84717020
Kopā pieejams (gab.)
•12
Tuvākā piegāde
•08.04.2026
Product Type
Motherboard - ATX
Chipset Type
AMD X870
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Max Size
256 GB
Technology
DDR5
Bus Clock
4800 MT/s, 5200 MT/s, 5600 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6400 MT/s (O.C.), 6600 MT/s (O.C.), 6800 MT/s (O.C.), 7000 MT/s (O.C.), 7200 MT/s (O.C.), 7600 MT/s (O.C.), 7800 MT/s (O.C.), 8000 MT/s (O.C.), 8200 MT/s (O.C.), 8400 MT/s (O.C.), 8600 MT/s (O.C.), 8800 MT/s (O.C.), 9000 MT/s (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1220
Compliant Standards
High Definition Audio
Network Controller
Qualcomm QCNCM865
Network Interfaces
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x M.2 socket (2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 2 x M.2
Interfaces
1 x LAN (5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out ¦ 2 x aerial ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB4 ¦ 1 x HDMI ¦ 1 x USB 2.0 ¦ 1 x USB-C 3.2 Gen 2
Internal Interfaces
4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring
System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control, noise detection
Hardware Features
16+2+2 Phase Power Design, 2x Copper PCB, 8 Layer PCB, VRM Thermal Armor Advanced, M.2 Thermal Guard L, M.2 EZ Flex Design, M.2 Thermal Guard Ext., DIY Friendly Design, WIFI EZ-Plug, M.2 EZ Latch click, M.2 EZ Latch plus, PCIe EZ Latch Plus, M.2 EZ Match, EZ Debug LED, MultiKey, Q-Flash Plus button, Ultra Durable, RGB FUSION
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version)
Width
30.5 cm
Depth
24.4 cm
Package Details
Box
