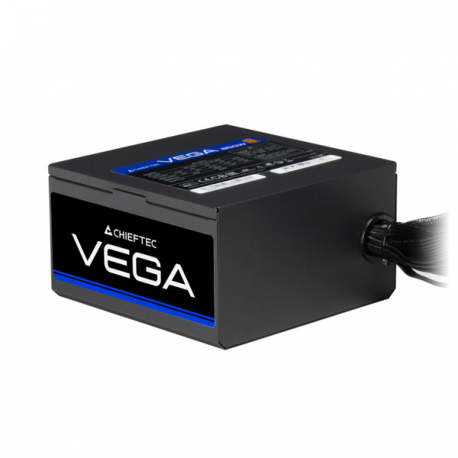

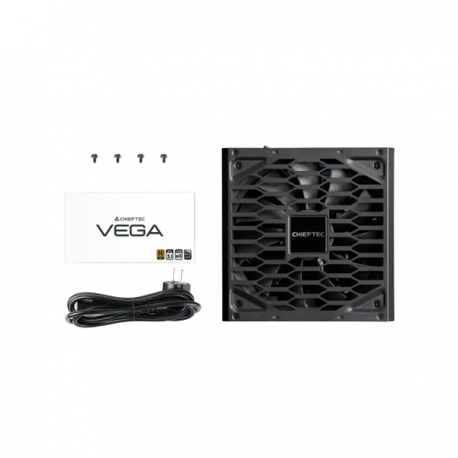

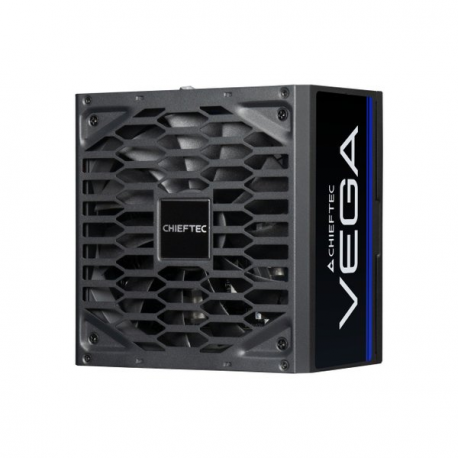

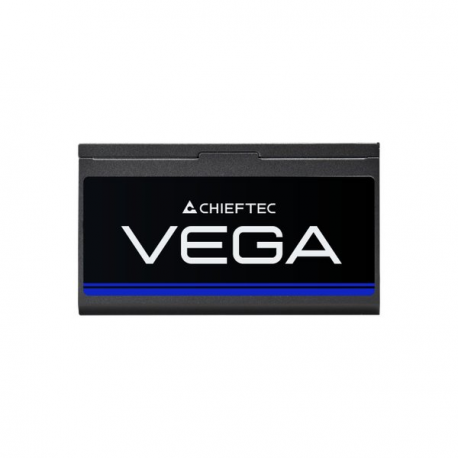

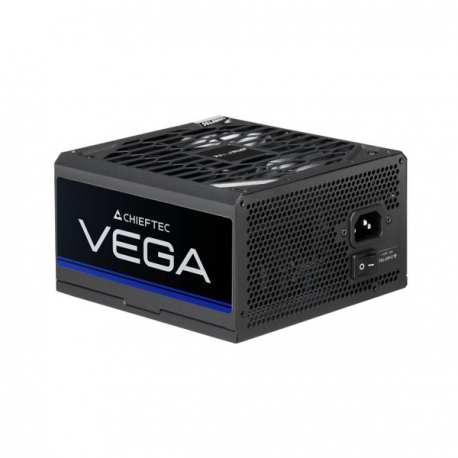

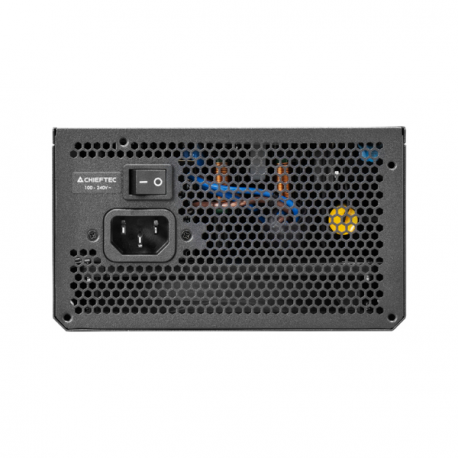

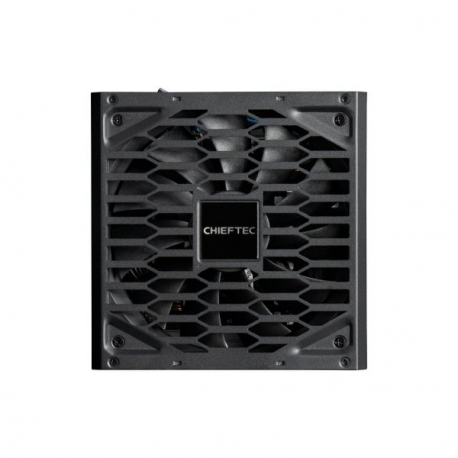

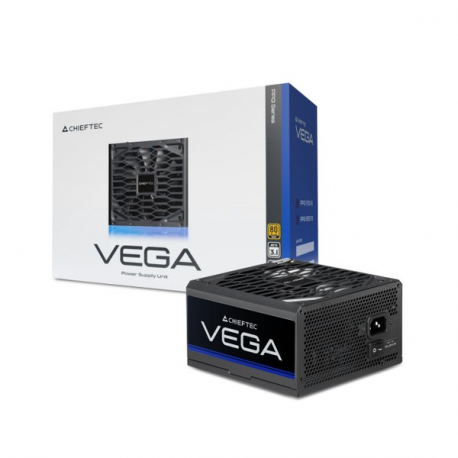

Chieftec VEGA Series PPG-750-S - Power supply (internal) - ATX12V 3.1 - 80 PLUS Gold - AC 100-240 V - 750 Watt - active PFC
Chieftec VEGA Series PPG-750-S - Power supply (internal) - ATX12V 3.1 - 80 PLUS Gold - AC 100-240 V - 750 Watt - active PFC
Ražotājs
•CHIEFTEC
Ražotāja kods
•PPG-750-S
Artikuls
•4174560
Intrastat
•85044090
Pakas svars
•2.46 kg
Kopā pieejams (gab.)
•19
Tuvākā piegāde
•23.03.2026
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 3.1
PSU Form Factor
ATX
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section
1 x power 8 pin EPS12V
4 x 8 pin PCI Express power
1 x 16 pin PCI Express power
6 x SATA connector
3 x Molex
Output Voltage
+3.3, +5, ±12 V, -12V, +5Vsb V
Power Capacity
750 Watt
Output Current
+3.3V - 20 A
+5V - 20 A
+12V - 62.5 A
-12V - 0.3 A
+5VSB - 0.3 A
Power Factor (PF)
0.9
80 PLUS Certification
80 PLUS Gold
Cables Included
Power 24 pin ATX cable 600 m
Power 8 pin EPS12V modular cable 650 m
8 pin PCI Express power cable 600 m
16-pin PCIe 5.0 cable 600 m
SATA Express cable 400 m
Molex power cable 400 m
Cooling System
135 mm fan
Features
Automatic Fanspeed Control (AFC), fluid dynamic bearing cooling fan, Surge & Inrush Protection (SIP), high temperature protection, undervoltage protection, over voltage protection, short-circuit protection, over current protection, overload protection, LLC Half Bridge Topology, DC-DC technology
Compliant Standards
TUV, CB, EAC, Interseroh, RoHS, Lead-Free
Service & Support
Limited warranty - 2 years
Width
15 cm
Depth
15 cm
Height
8.5 cm
Weight
1.96 kg
Shipping Weight
2.46 kg
