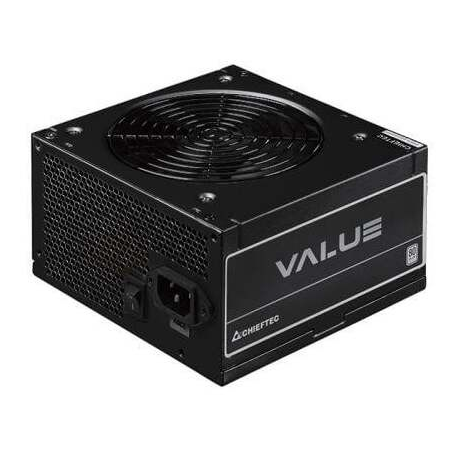

Chieftec VALUE SERIES APB-700B8 - Power supply (internal) - ATX12V 2.3 - 80 PLUS - AC 200 - 240 V - 700 Watt - active PFC
Chieftec VALUE SERIES APB-700B8 - Power supply (internal) - ATX12V 2.3 - 80 PLUS - AC 200 - 240 V - 700 Watt - active PFC
Ražotājs
•CHIEFTEC
Ražotāja kods
•APB-700B8
Artikuls
•1911133
Intrastat
•85044090
Pakas svars
•1.46 kg
Kopā pieejams (gab.)
•15
Tuvākā piegāde
•23.03.2026
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.3
PSU Form Factor
ATX
Input Voltage
AC 200 - 240 V
Frequency Required
47 - 63 Hz
Power Output Connectors Details
1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V ¦ 2 x 8 pin PCI Express power ¦ 3 x Molex/floppy ¦ 4 x SATA connector
Output Voltage
+3.3, +5, ±12 V, -12V, +5Vsb V
Max Electric Current
5 A
Power Capacity
700 Watt
Output Current
+3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 54 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
Power Factor (PF)
0.9
80 PLUS Certification
80 PLUS
Cooling System
120 mm fan
Features
Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, surge & inrush protection, Automatic Fanspeed Control (AFC)
Compliant Standards
TUV, CB, RoHS, ERP, EAC, Interseroh
Service & Support
Limited warranty - 2 years
Width
15 cm
Depth
14 cm
Height
8.7 cm
Weight
1.42 kg
Shipping Weight
1.57 kg
