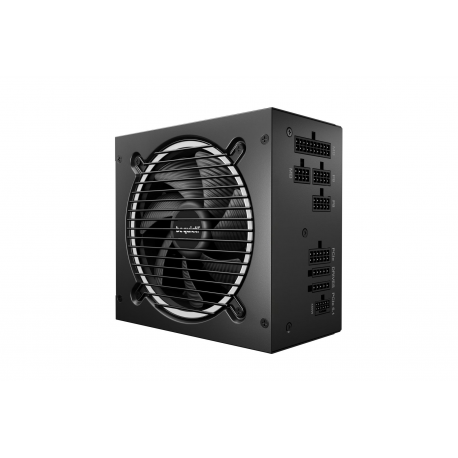

be quiet! Pure Power 13 M - Power supply (internal) - ATX12V 3.1/ EPS12V 2.92 - 80 PLUS Gold - Cybenetics Gold - AC 100-240 V - 650 Watt - active PFC - black
be quiet! Pure Power 13 M - Power supply (internal) - ATX12V 3.1/ EPS12V 2.92 - 80 PLUS Gold - Cybenetics Gold - AC 100-240 V - 650 Watt - active PFC - black
Ražotājs
•BE QUIET
Ražotāja kods
•BP025EU
Artikuls
•4359301
Intrastat
•85044090
Pakas svars
•3.1 kg
Kopā pieejams (gab.)
•52
Tuvākā piegāde
•16.03.2026
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 3.1/ EPS12V 2.92
PSU Form Factor
ATX
Colour
Black
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Power Output Connectors Details
1 x power 24 pin ATX
1 x power 8 pin EPS12V with detachable 4 pin ATX12V section
1 x power 4 pin ATX12V connector
5 x 15 pin Serial ATA power
2 x 4 PIN internal power
2 x 8 pin PCI Express power with detachable 2 pin section
1 x 16 pin PCI Express power
Output Voltage
+3.3, +5, ±12 V, +5Vsb V
Power Capacity
650 Watt
Output Current
+3.3V - 20 A
+5V - 20 A
+12V - 54.1 A
-12V - 0.3 A
+5VSB - 3 A
Efficiency
94.2%
Modular Cable Management
Yes
80 PLUS Certification
80 PLUS Gold
Cybenetics Certification
Cybenetics Gold
Included Accessories
Screws, cable ties
Cables Included
AC power cable
Power 24 pin ATX with detachable 4 pin section modular cable 55 cm
Power 8 pin +12V with detachable 4 pin section modular cable 65 cm
Power 4 pin ATX12V modular cable 65 cm
16-pin 12VHPWR power modular cable 60 cm
2 x 8 pin PCI Express power with detachable 2 pin section modular cable 50 cm
15 pin Serial ATA power modular cable 95 cm
Power 15 pin SATA cable / 4 pin internal power cable modular cable 80 cm
MTBF
100,000 hours
Cooling System
120 mm fan
Features
Fully modular, LLC resonant converter technology, DC-DC technology, Synchronous Rectifier (SR) technology, Modern Standby compatible, overheat protection, over current protection, overpower protection, short-circuit protection, over voltage protection, undervoltage protection, surge & inrush protection, rifle bearing cooling fan
Compliant Standards
BSMI, CB, CCC, cRUus, cTUVus, CU, FCC, RCM, TUV, UKCA, ErP 2014 Ready, WEEE, RoHS, Energy Star 8.0
ENERGY STAR
Yes
Service & Support
Limited warranty - 10 years
Max Operating Temperature
40 °C
Sound Emission
15.9 dBA
Width
15 cm
Depth
16 cm
Height
8.6 cm
Weight
2.32 kg
Shipping Width
21 cm
Shipping Depth
32 cm
Shipping Height
13.3 cm
Shipping Weight
3.1 kg
