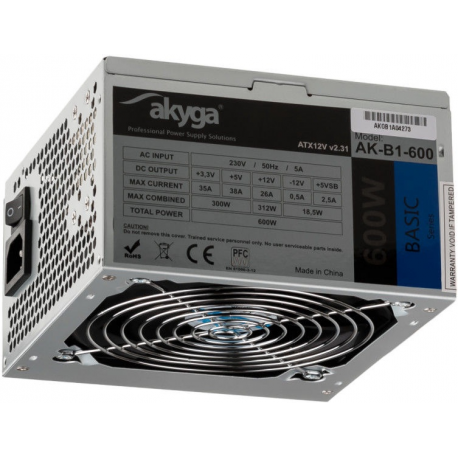

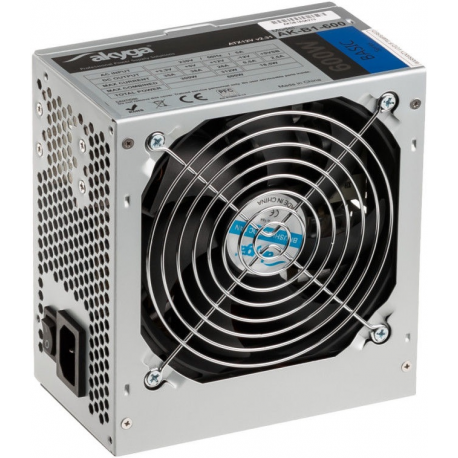

Akyga Basic Series AK-B1-600 - Power supply (internal) - ATX12V 2.31 - AC 230 V - 600 Watt - PFC - grey
Akyga Basic Series AK-B1-600 - Power supply (internal) - ATX12V 2.31 - AC 230 V - 600 Watt - PFC - grey
Ražotājs
•AKYGA
Ražotāja kods
•AK-B1-600
Artikuls
•1809817
Intrastat
•85044090
Pakas svars
•1.19 kg
Kopā pieejams (gab.)
•10
Tuvākā piegāde
•17.03.2026
Device Type
Power supply - Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.31
PSU Form Factor
ATX
Colour
Grey
Input Voltage
AC 230 V
Frequency Required
50 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 4 pin ATX12V connector ¦ 4 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector ¦ 1 x 8 pin PCI Express power with detachable 2 pin section
Output Voltage
+3.3, +5, ±12 V
Power Capacity
600 Watt
Output Current
+3.3V - 35 A ¦ +5V - 38 A ¦ +12V - 26 A ¦ -12V - 0.5 A ¦ +5VSB - 2.5 A
Efficiency
70%
MTBF
100,000 hours
Cooling System
120 mm fan
Features
EcoBox package, overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, fan speed control
Compliant Standards
RoHS, REACH, EN 61000-3
Min Operating Temperature
5 °C
Max Operating Temperature
50 °C
Width
15 cm
Depth
14 cm
Height
8.5 cm
Weight
1.12 kg
Shipping Width
16 cm
Shipping Depth
22 cm
Shipping Height
9.5 cm
Shipping Weight
1.19 kg
