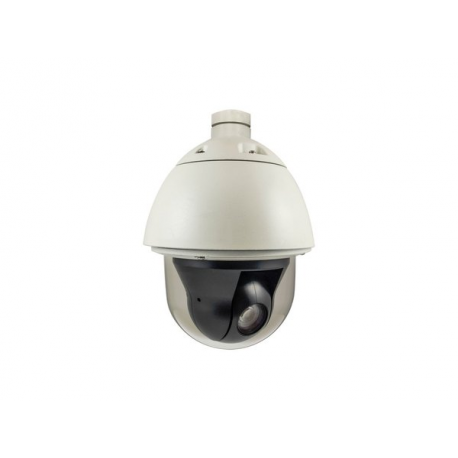

LevelOne FCS-4042 - Network surveillance camera - PTZ - outdoor - vandal / weatherproof - colour (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - audio - LAN 10 / 100 - MJPEG, H.264, RAW - AC 24 V / PoE Plus
LevelOne FCS-4042 - Network surveillance camera - PTZ - outdoor - vandal / weatherproof - colour (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - audio - LAN 10 / 100 - MJPEG, H.264, RAW - AC 24 V / PoE Plus
Ražotājs
•LEVELONE
Ražotāja kods
•FCS-4042
Artikuls
•2262297
Intrastat
•84716070
Pakas svars
•2 kg
Kopā pieejams (gab.)
•1
Tuvākā piegāde
•30.03.2026
Type
IP security camera
Placement supported
Outdoor
Connectivity technology
Wired
PTZ control
Y
Auto pan mode
Y
Auto patrol mode
Y
Preset points
Y
Wide Dynamic Range (WDR)
Y
Day/night mode
Y
Infrared (IR) cut-off filter
Y
Certification
CE, FCC, ONVIF, IP67, IK09, NEMA 4X
Mounting type
Wall
Product colour
Black, White
Form factor
Dome
LED indicators
Power
Protection features
Vandal proof
International Protection (IP) code
IP67
IK code
IK09
Weatherproof
Y
Country of origin
Taiwan
Minimum illumination
0.05 lx
Tilt angle range
-20 - 200°
Pan range
0 - 360°
White balance
Auto
Camera shutter type
Electronic
Camera shutter speed
1/5 - 1/10000 s
Sensor type
CMOS
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Progressive scan
Y
Number of lenses
1
Zoom capability
Y
Optical zoom
30x
Digital zoom
16x
Auto focus
Y
Focal length range
4.3 - 129 mm
Focus adjustment
1.6 - 5.0
Night vision
Y
Maximum resolution
1920 x 1080 pixels
Total megapixels
2 MP
Video formats supported
RAW
Video compression formats
H.264, M-JPEG
Supported graphics resolutions
320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes
240p, 480p, 720p, 1080p
Frame rate
30 fps
Video streaming
Y
Noise reduction
Y
Automatic gain control
Y
Full HD
Y
Image quality adjustment
Brightness, Contrast, Saturation, Sharpness
Flip & mirror
Y
Portrait mode
Y
Privacy masking
Y
Time stamp overlay
Y
Text caption overlay
Y
Back Light Compensation (BLC)
Y
Audio system
2-way
Built-in microphone
N
Voice codecs
G.711
Ethernet LAN
Y
Wi-Fi
N
Bluetooth
N
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Supported network protocols
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Built-in HDD
N
Card reader integrated
Y
Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size
64 GB
Ethernet LAN (RJ-45) ports
1
Microphone in
Y
Headphone outputs
1
Terminal block port
Y
Interface
RJ-45
Password protection type
User
IP address filtering
Y
HTTPS encryption
Y
Motion sensor
Y
Reset button
Y
Power source type
PoE
Power consumption (typical)
25.44 W
Power consumption (max)
31.5 W
Power consumption (Power over Ethernet (PoE))
31.5 W
Power over Ethernet (PoE)
Y
Operating temperature (T-T)
-40 - 50 °C
Operating relative humidity (H-H)
10 - 85%
Windows operating systems supported
Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Width
191 mm
Depth
191 mm
Height
282 mm
Weight
2.75 kg
Package width
269 mm
Package depth
246 mm
Package height
422 mm
Package weight
2 kg
Package type
Box
Number of cameras
1
Cables included
AC
Screws included
Y
AC adapter included
Y
Quick installation guide
Y
Resource CD
Y
Iris
Y
Sustainability certificates
RoHS
Harmonized System (HS) code
85258900
Master (outer) case width
565 mm
Master (outer) case length
525 mm
Master (outer) case height
445 mm
Master (outer) case gross weight
20.7 kg
Products per master (outer) case
4 pc(s)
Number of video streams
4
