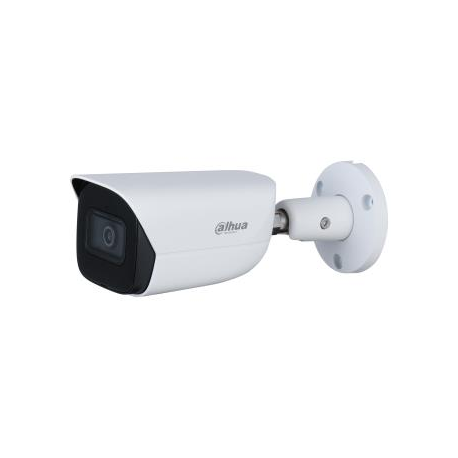

Dahua WizMind S Series IPC-HFW5541E-ASE - Network surveillance camera - bullet - outdoor - colour (Day&Night) - 5 MP - 2960 x 1668 - M12 mount - fixed iris - fixed focal - audio - LAN 10 / 100 - MJPEG, H.264, H.265, H.265+, H.264+, H.264B, H.264H - DC 12 V / PoE / ePoE
Dahua WizMind S Series IPC-HFW5541E-ASE - Network surveillance camera - bullet - outdoor - colour (Day&Night) - 5 MP - 2960 x 1668 - M12 mount - fixed iris - fixed focal - audio - LAN 10 / 100 - MJPEG, H.264, H.265, H.265+, H.264+, H.264B, H.264H - DC 12 V / PoE / ePoE
Ražotājs
•DAHUA
Ražotāja kods
•IPC-HFW5541E-ASE-0280B-S3
Artikuls
•3171600
Intrastat
•84716070
Pakas svars
•0.78 kg
Kopā pieejams (gab.)
•10
Tuvākā piegāde
•16.03.2026
Device Type
Network surveillance camera
Audio Support
Yes: built-in microphone
Audio Formats
PCM, G.726, G.711a, G.711u, G.723
Form Factor
Bullet
Connectivity Technology
Wired
Width
7.05 cm
Depth
19.27 cm
Height
6.64 cm
Weight
590 g
Type
Colour - Day&Night - fixed - outdoor
Digital Video Format
MJPEG, H.264, H.265, H.265+, H.264+, H.264B, H.264H
Max Digital Video Resolution
2960 x 1668
Motion Detection
Yes
Video Modes
720p, 1080p, 1440p
Exposure Range
1/3 sec - 1/100000 sec
Minimum Illumination
0.0009 lux - colour - F1.6 - 30 IRE ¦ 0.0005 lux - B&W - F1.6 - 30 IRE ¦ 0 lux - IR
Infrared LEDs
1
Infrared Distance
50 m
Digital Video Capture Resolution
1280 x 720, 352 x 240, 640 x 480, 1280 x 960, 352 x 288, 704 x 576, 704 x 480, 2048 x 1536, 1920 x 1080, 2304 x 1296, 2560 x 1440, 2880 x 1620, 2688 x 1520, 2960 x 1668
Frame Rate (max)
30 frames per second
RAM
1 GB
Flash Memory
4 GB
Features
People counting, perimeter protection, Metadata, AI-powered
Type
5 MP Progressive Scan CMOS 1/2.7"
Type
M12 mount - fixed focal
Focal Length
2.8 mm
Lens Iris
F/1.6 fixed iris
Min Focus Distance
1.1 m
Horizontal Field of View (degree)
111
Vertical Field of View (degree)
58
Diagonal Field of View (degree)
132
Range (degree)
0 to 360
Range (degree)
0 to 90
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, ARP, ICMP, SNMP, RTSP, RTP, UPnP, IPv4, IPv6, RTCP, PPPoE, IGMP, Samba, QOS, SFTP, NFS, RTMP, P2P, UDP, TCP
Alarm Inputs Qty
1
Alarm Outputs Qty
1
Ports
LAN/power - RJ-45 ¦ Audio line in - RCA ¦ Audio line out - RCA
Compliant Standards
FCC CFR47 Part 15 B, IP67, IK10, EMC 2014/30/EU, CAN/CSA-C22.2 No. 62368-1-14, UL/CUL 62368-1, LVD 62368-1
Power Requirements
DC 12 V / PoE / ePoE
Shipping Weight
780 g
Min Operating Temperature
-40 °C
Max Operating Temperature
60 °C
Relative Humidity (operating)
0 - 95%
