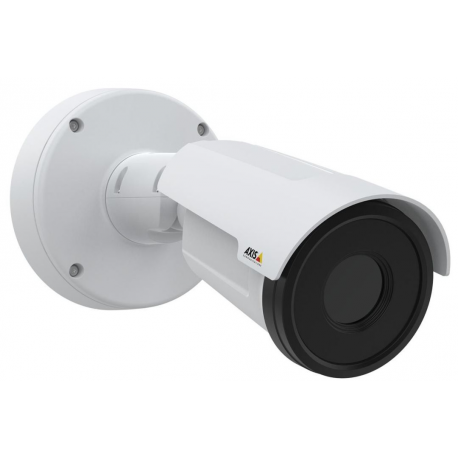

AXIS Q1952-E - Thermal network camera - outdoor - vandal / weatherproof - colour (Day&Night) - 640 x 480 - fixed focal - audio - GbE - MJPEG, H.264, H.265 - DC 12 - 28 V / PoE Class 3
AXIS Q1952-E - Thermal network camera - outdoor - vandal / weatherproof - colour (Day&Night) - 640 x 480 - fixed focal - audio - GbE - MJPEG, H.264, H.265 - DC 12 - 28 V / PoE Class 3
Ražotājs
•AXIS
Ražotāja kods
•02158-001
Artikuls
•1836592
Intrastat
•84716070
Pakas svars
•1.4 kg
Kopā pieejams (gab.)
•3
Tuvākā piegāde
•23.03.2026
Device Type
Thermal network camera
Audio Support
Yes
Audio Formats
PCM, G.726, ADPCM, AAC-LC, LPCM, G.711
Camera Mount Type
Wall mount, ceiling mount
Connectivity Technology
Wired
Width
13.2 cm
Depth
27.2 cm
Height
13.2 cm
Weight
1.4 kg
Localisation
Argentina, Australia, China, Japan, Brazil, United Kingdom, United States, Europe
Type
Colour - Day&Night - fixed - outdoor - vandal / weatherproof
Digital Video Format
MJPEG, H.264, H.265
Max Digital Video Resolution
640 x 480
Motion Detection
Yes
Video Capture
640 x 480 @ 30 fps
RAM
1 GB
Flash Memory
512 MB
Features
Sharpness control, digital image rotation, brightness control, contrast control, Object Detection, heater, Thermal Imaging System, Privacy Mask Function, Electronic Image Stabilizer (EIS), active tampering alarm, password protection, Variable Bitrate (VBR), Audio Detection, intrusion detection, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, Pixel Counter Support, digest authentication, embedded SOC processor, IP address filtering, exposure zone, HTTPs encryption, uncooled micro bolometer, firmware upgradable, perimeter protection, Smart Motion Detection, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), thermal sensitivity 40 mK (NETD), compression, user access log, brute force delay protection, Trusted Platform Module (TPM)
Type
Uncooled Micro bolometer
Type
Fixed focal
Focal Length
10 mm
Lens Iris
F/1.17
Min Focus Distance
2.8 m
Horizontal Field of View (degree)
63
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, LLDP, USGv6, MQTT
Alarm Inputs Qty
1
Alarm Outputs Qty
1
Ports
LAN/power - RJ-45 ¦ Audio line-in/microphone
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Included Accessories
Wall mount bracket, ceiling mount bracket, connector guard, Resistorx L-key, terminal block connectors
Compliant Standards
CISPR 24, EN55024, EN 61000-6-1, FIPS 140-2 Level 2, NEMA Type 4X, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IP67, IK10, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, AS/NZS, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, IEC 60950-22, EN 60529, EN 60950-22, UL 60950-22, IEC 60529, KN35, NEMA250 Type 4X, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, ISO 21207, RCM Class A, CISPR 32 Class A, IEEE 802.3af, IEEE 802.3at, UL 62368-1, IEC/EN 62262, EN 55035, CISPR 35, EN 60068-2-14, NIST SP500-267, MIL-STD-810H, ICES-3(A)/NMB-3(A), NEMA TS-2 (2.2.7-2.2.9), EN 60068-2-78
Colour
White
Power Requirements
DC 12 - 28 V / PoE Class 3
Service & Support
Limited warranty - 5 years
Min Operating Temperature
-40 °C
Max Operating Temperature
60 °C
Relative Humidity (operating)
10 - 90%
