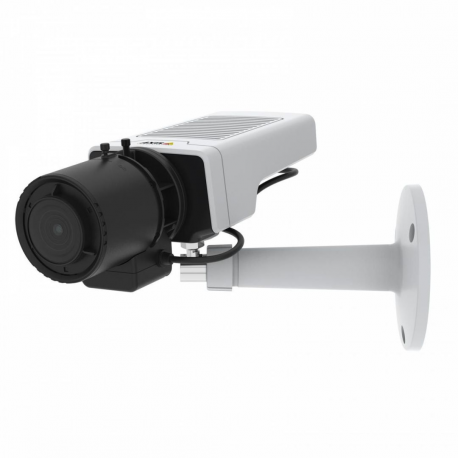

AXIS M1137 MK II - Network surveillance camera - box - colour (Day&Night) - 5 MP - 2592 x 1944 - i-CS-mount - auto iris - vari-focal - audio - LAN 10 / 100 - MJPEG, H.265, H.264B, H.264H, H.264M - DC 10 - 28 V / PoE Class 3
AXIS M1137 MK II - Network surveillance camera - box - colour (Day&Night) - 5 MP - 2592 x 1944 - i-CS-mount - auto iris - vari-focal - audio - LAN 10 / 100 - MJPEG, H.265, H.264B, H.264H, H.264M - DC 10 - 28 V / PoE Class 3
Ražotājs
•AXIS
Ražotāja kods
•02581-001
Artikuls
•3058987
Intrastat
•84716070
Pakas svars
•0.24 kg
Kopā pieejams (gab.)
•2
Tuvākā piegāde
•08.07.2026
Device Type
Network surveillance camera
Audio Support
Yes: built-in microphone, two-way audio via edge-to-edge technology
Audio Formats
PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS
Form Factor
Box
Camera Mount Type
Wall mount, ceiling mount
Connectivity Technology
Wired
Width
6.3 cm
Depth
7 cm
Height
14.9 cm
Weight
240 g
Localisation
Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, European Union
Type
Colour - Day&Night - fixed
Digital Video Format
MJPEG, H.265, H.264B, H.264H, H.264M
Max Digital Video Resolution
2592 x 1944
Motion Detection
Yes
Exposure Range
1/5 sec - 1/33500 sec
Minimum Illumination
0.17 lux - colour - F1.4 - 50 IRE ¦ 0.03 lux - B&W - F1.4 - 50 IRE
Digital Video Capture Resolution
160 x 120, 2592 x 1944
Frame Rate (max)
30 frames per second
RAM
1 GB
Flash Memory
512 MB
Features
Image mirror, Lightfinder technology, active tampering alarm, digital PTZ function, password protection, IR Corrected lens, Variable Bitrate (VBR), Audio Detection, auto gain control, Zipstream technology, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Pixel Counter Support, infrared-cut filter, digest authentication, Forensic WDR, IP address filtering, signed firmware, secure boot, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), VAPIX support, text overlay, 180° image rotation, 90° image rotation, 270° image rotation, low latency mode, memory card encryption, brute force delay protection, Machine learning processing unit (MLPU), ONVIF (Profile M) support, remote zoom, Axis Edge Vault, Multi-Bitrate (MBR), Axis device ID, signed video, fine tuning of behavior at low light, aspect ratio correction, barrel distortion correction, network speaker pairing
Type
5 MP PS RGB CMOS 1/2.7"
Type
I-CS-mount - vari-focal
Optical Zoom
2.9 x
Focal Length
3.5 mm - 10 mm
Lens Iris
F/1.4 auto iris (P-Iris)
Min Focus Distance
0.8 m
Horizontal Field of View (degree)
31 - 99
Vertical Field of View (degree)
24 - 71
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog, NTS, RTSPS
Ports
LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Included Accessories
AXIS T91A11 stand (white)
Compliant Standards
EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, EAL 4+, X.509, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, EN 50581, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEEE 802.3af, IEEE 802.3at, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IEEE 802.1x, PVC-free, NIST SP500-267, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, IEEE 802.1ar
Colour
Black, white, NCS S 1002-B, NCS S 9000-N
Power Requirements
DC 10 - 28 V / PoE Class 3
Software Included
Windows decoder 1-user licence, AXIS Video Motion Detection, AXIS Object Analytics
Service & Support
Limited warranty - 5 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Relative Humidity (operating)
10 - 85% RH (non-condensing)
