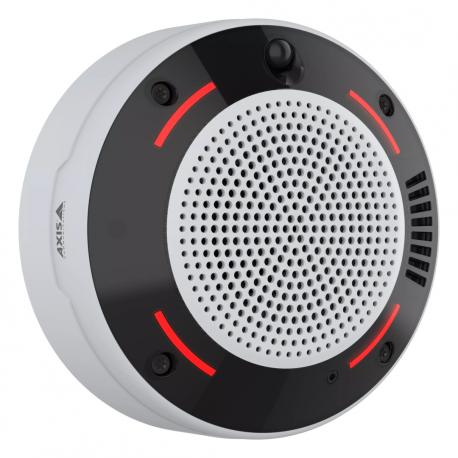

Axis D6310 - Air quality sensor - wired - 10 / 100 / 1000 Ethernet - NCS S 1002-B, white - TAA Compliant
Axis D6310 - Air quality sensor - wired - 10 / 100 / 1000 Ethernet - NCS S 1002-B, white - TAA Compliant
Ražotājs
•AXIS
Ražotāja kods
•03202-001
Artikuls
•4439983
Pakas svars
•0.83 kg
Kopā pieejams (gab.)
•1
Tuvākā piegāde
•29.06.2026
Product Type
Air quality sensor
Sensor Type
Air quality, humidity, carbon dioxide, particulate matter, Volatile Organic Compounds (VOC) sensor, nitrogen dioxide
Environment
Indoor
Functions
Air quality measurement
Integrated Components
Speaker, microphone
Integrated Sensors
Passive infrared motion sensor (PIR)
Power Source
PoE
Placing / Mounting
Ceiling-mounting, wall-mounting
Connectivity Technology
Wired - Gigabit Ethernet, Fast Ethernet, Ethernet
Interfaces Details
Gigabit Ethernet ¦ Serial (RS-422/RS-485)
Features
Two-way communication, visual alert, 16:9 aspect ratio, H.264 compression standard, H.265 compression standard, Motion JPEG support, full duplex support, echo cancellation, LED status indicators, audio detection, cigarette smoking detection, vandal-resistant RTSP support, IPv4 support, IPv6 support, HTTP support, HTTPS support, TLS encryption, QoS Layer 3 DiffServ support, FTP support, SFTP support, CIFS/SMB support, SMTP support, mDNS, UPnP, DNS/DNSv6 support, DDNS (Dynamic Domain Name Service), NTP support, NTS support, RTP support, SRTP/RTSPS support, UDP, RTCP support, TCP support, DHCPv4/v6 support, SSH support, CDP, MQTT v3.1.1 support, Syslog support
Temperature Range
-10 - 45 °C
Measurement Accuracy
±1 °C
Operating System
AXIS OS
Detection Mode
Passive infrared (PIR)
Detection Range
5 m
CPU
AML8726-MXS
Installed Size
1 GB
Installed Size
8 GB
Included Accessories
Mounting kit
Product Material
Plastic, aluminium
Colour
NCS S 1002-B, white
Encryption Algorithm
FIPS 140
Warranty
5-year warranty
Power Consumption Operational
2.8 Watt
Compliant Standards
IPv4, IPv6, USGv6, TLS, IEEE 802.1x, IEEE 802.1ar, UL, FCC Part 15 A, KC, VCCI, RCM, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, IEC/EN/UL 62368-1, CAN/CSA-C22.2 No. 62368-1 Third Edition, IEC/EN 60825-1:2014 Class 1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK08, ETSI EN 303 645, NIST SP500-267, EN/IEC 63000:2018, RoHS 2011/65/EU Amendment 2015/863, SCIP, REACH 1907/2006/CE
TAA Compliant
Yes
Width
14.99 cm
Depth
14.99 cm
Height
6.06 cm
Weight
830 g
Min Operating Temperature
-10 °C
Max Operating Temperature
45 °C
Humidity Range Operating
0 - 90% RH (non-condensing)
Designed For
AXIS TP3101
