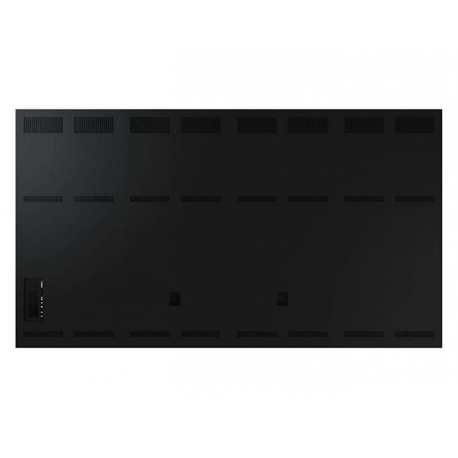

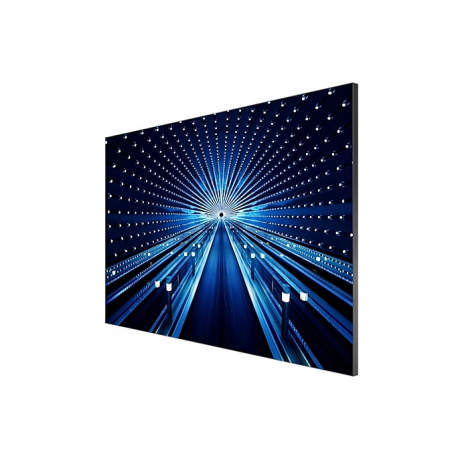

Samsung The Wall All-In-One IAB 146 4K - IAB Series LED video wall - digital signage - 3840 x 2160 146" - Flip-chip RGB LED - HDR
Samsung The Wall All-In-One IAB 146 4K - IAB Series LED video wall - digital signage - 3840 x 2160 146" - Flip-chip RGB LED - HDR
Ražotājs
•SAMSUNG
Ražotāja kods
•LH008IABMUS/EN
Artikuls
•3196255
Intrastat
•85286980
Pakas svars
•281.101 kg
Kopā pieejams (gab.)
•1
Tuvākā piegāde
•30.03.2026
Product Type
LED video wall
Commercial Use
Yes - digital signage
Series
IAB Series
HDR Capable
Yes
HDR Format
HDR10, HDR10+
HDR Technology
HDR 10+, LED HDR, Micro HDR
Video Processor
Neural Quantum 4K
TV Tuner
No tuner
TV Tuner Presence
No
Sensors
Eco Sensor, temperature sensor
Video Interface
HDMI
HDMI Ports Qty
3 ports
PC Interface
DisplayPort
Modes
DICOM Simulation Mode
Picture Enhancements
Dynamic Peaking Technology, AI Picture, Black Seal Technology, Ultra Chroma Technology
Width
322.56 cm
Depth
4.9 cm
Height
181.44 cm
Weight
168 kg
Frame Rate & Enhancement Technology
100 Hz Refresh Rate, 120 Hz Refresh Rate, 3840 Hz Refresh Rate, 50-60 Hz Refresh Rate, Micro Motion
Colour Temperature
2800 - 10000K
Image Contrast Ratio
24000:1
Brightness
1600 cd/m²
Viewing Angle
170 degrees
Viewing Angle (Vertical)
155 degrees
Features
MagicInfo, 16-bit support, 20-bit processing, Samsung Workspace secured by Knox
Resolution
3840 x 2160
Diagonal Size
146"
Configuration
16x12
Pixel Pitch
0.84 mm
Pixel Configuration
1 red, 1 green, 1 blue
LED Type
Flip-chip RGB LED
LED Lifetime
150000 hours
Maintenance
Front
USB Port
Yes
USB Ports Qty
2
Operating System
Tizen OS 6.5
Type
Remote control
Speaker System
2 channel
Output Power / Total
10 Watt
Connectivity
Wi-Fi, LAN, Bluetooth
Connect & Share
Samsung Smart View+
Connector Type

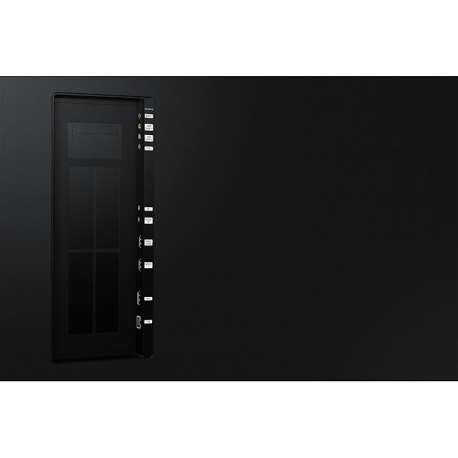

DisplayPort ¦ 3 x HDMI ¦ 2 x USB 2.0 ¦ Audio line-out ¦ RS-232 input ¦ LAN
Included Accessories
Frame kit, decor frame, 18 modules, T-Con, SMPS
Compliant Standards
EMC Class A, IP20, TUV Rheinland Low Blue Light Certification, Safety 60950-1, Safety 62368-1
Power Device
Power supply
Input Voltage
AC 100-240 V (50/60 Hz)
Video Wall Power Consumption (Max)
1700 W/m²
Video Wall Power Consumption (Typical)
1100 W/m²
Heat Generation Details
Video wall - typical - 3753 BTU ¦ Video wall - max - 5800 BTU
Width (Shipping)
200 cm
Depth (Shipping)
100 cm
Height (Shipping)
216.2 cm
Weight (Shipping)
301 kg
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 80% RH
