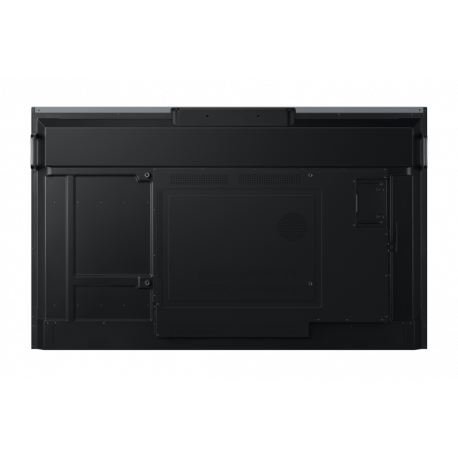

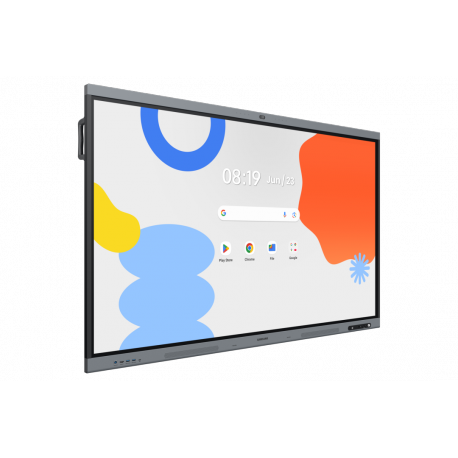

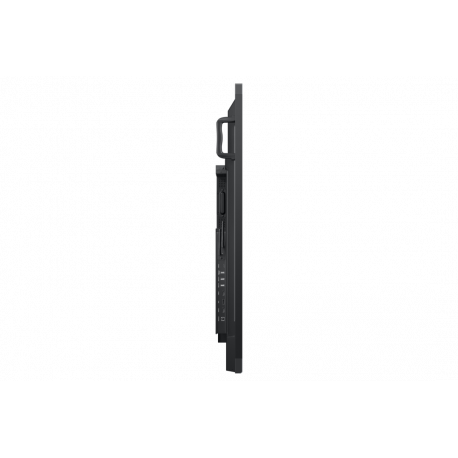

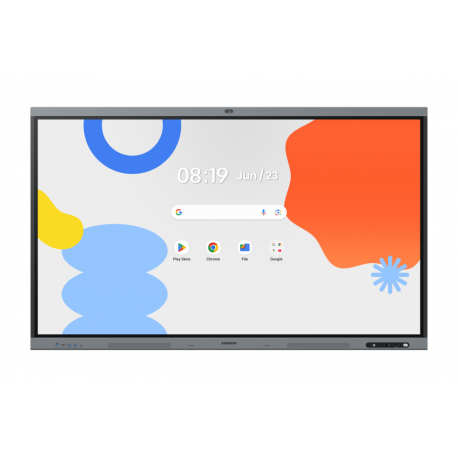

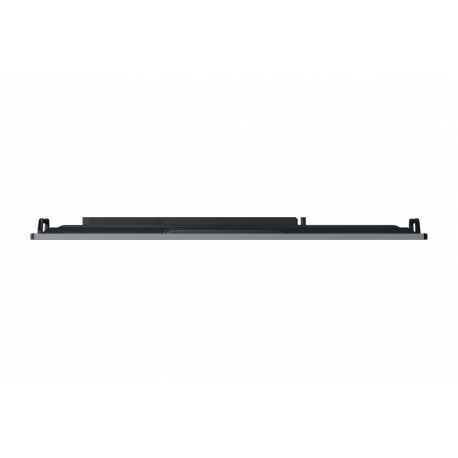

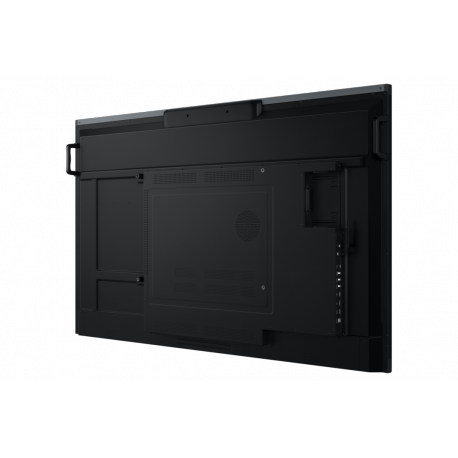

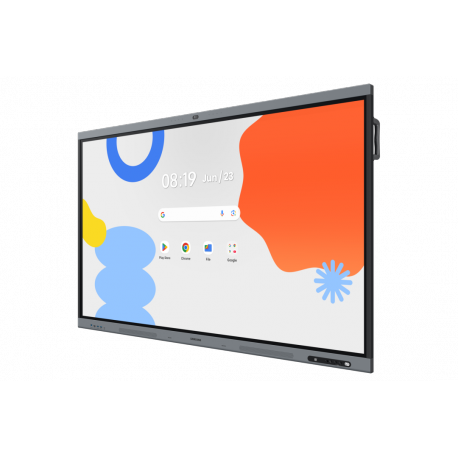

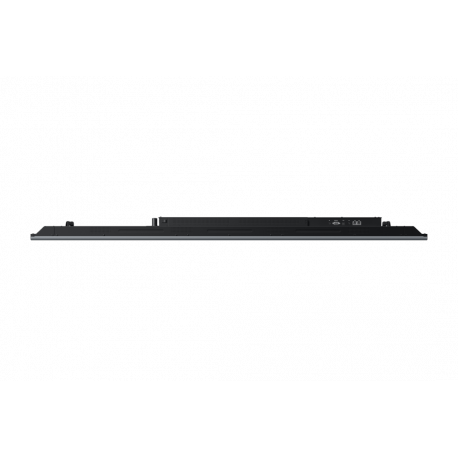

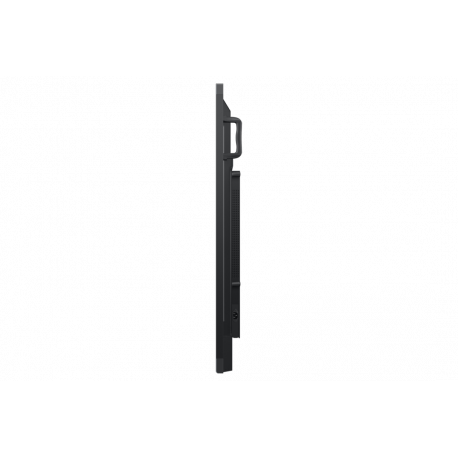

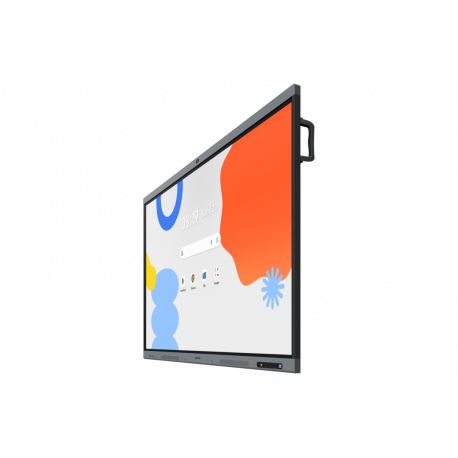

Samsung Interactive Display WA86FX-P - 86" Diagonal Class WAFX-P Series LED-backlit LCD display - education / business - with built-in interactive whiteboard, touchscreen (multi touch), 48Mp camera and microphone - Android - 4K UHD (2160p) 3840 x 2160 - dark blue / grey, black
Samsung Interactive Display WA86FX-P - 86" Diagonal Class WAFX-P Series LED-backlit LCD display - education / business - with built-in interactive whiteboard, touchscreen (multi touch), 48Mp camera and microphone - Android - 4K UHD (2160p) 3840 x 2160 - dark blue / grey, black
Manufacturer
•SAMSUNG
Reference
•LH86WAFPLGCXEN
Article
•4393303
Shipping weight
•60.9 kg
Total quantity in stocks
•30
Nearest delivery
•25.06.2026
Product Type
LED-backlit LCD flat panel display
Power Consumption Operational
529 Watt
Diagonal Class
86"
Commercial Use
Yes - education / business
Combined With
Built-in interactive whiteboard, touchscreen (multi touch), 48Mp camera and microphone
Series
WAFX-P Series
Platform
Android
Operating System
Android OS 15
TV Tuner
No tuner
TV Tuner Presence
No
Video Interface
HDMI, USB-C
HDMI Ports Qty
2 ports
PC Interface
DisplayPort
Modes
Multi-screen mode
Picture Enhancements
72% Colour Gamut
Dimensions
Without stand
Width
195.04 cm
Depth
8.71 cm
Height
117.4 cm
Weight
60.9 kg
Enclosure Colour
Dark blue/grey, black
LCD Display Technology
IPS
Pixel Pitch
0.493 mm
Resolution
3840 x 2160
Display Format
4K UHD (2160p)
Image Aspect Ratio
16:9
Frame Rate & Enhancement Technology
60 Hz Refresh Rate
LCD Backlight Technology
LED backlight
Coating
25% haze
Dynamic Contrast Ratio
1200:1
Brightness
450 cd/m²
Viewing Angle
178 degrees
Viewing Angle (Vertical)
178 degrees
Response Time
8 ms
Commercial Features
Open Pluggable Standard (OPS) support, built-in Live Caption, AI Write & Search
Operation Hours / Days
12 / 7
Features
Infrared multitouch technology, split screen
Flat Panel Mount Interface
800 x 600 mm
VESA Compatibility
Yes
USB Port
Yes
USB Ports Qty
6
Configuration
Octa-Core 128 GB
Speaker System
2 speakers, woofer
Output Power / Total
60 Watt
Speakers
2 x speaker - 20 Watt ¦ 1 x woofer - 20 Watt
Functionality
Whiteboard, WEB browsing
Connectivity
Wi-Fi, LAN, Bluetooth
LAN Protocol
Ethernet
Wi-Fi Protocol
802.11ax
Connect & Share
Screen Share
Application Store
Google Play
Connector Type
2 x HDMI - side ¦ DisplayPort input - side ¦ Audio input - bottom ¦ Audio output - bottom ¦ RS-232 input - bottom ¦ LAN input - bottom ¦ LAN output - bottom ¦ Touch - side ¦ 3 x USB 2.0 - side ¦ Service - side ¦ Touch out - front ¦ 2 x USB 3.0 - front ¦ USB - front
Compliant Standards
Google EDLA, HDCP 2.2, FCC 47 CFR Part 15 Subpart B, EN 55032:2015 + A11:2020, IEC 62368-1, UL 62368-1, IEC 60950-1, IS 13252
Power Device
Power supply
Input Voltage
AC 100-240 V (50/60 Hz)
Power Consumption Sleep
0.5 Watt
Width (Shipping)
209.5 cm
Depth (Shipping)
18.5 cm
Height (Shipping)
126.5 cm
Weight (Shipping)
71.8 kg
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 80% (non-condensing)
