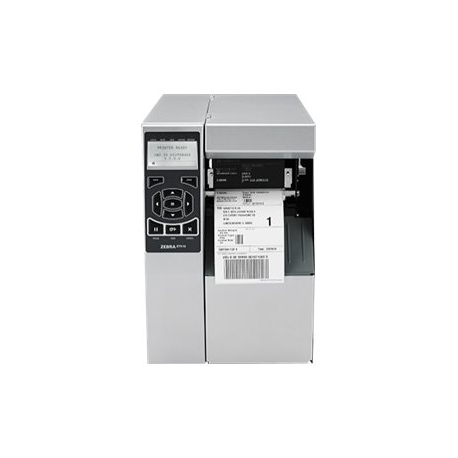

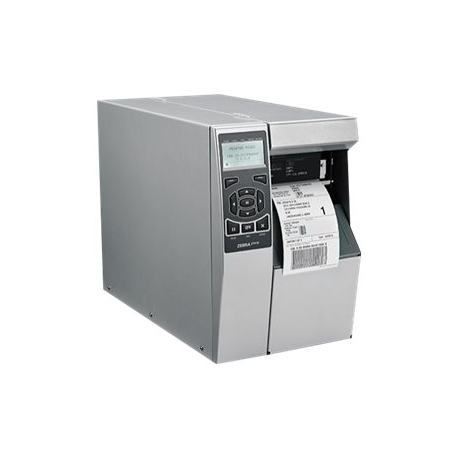

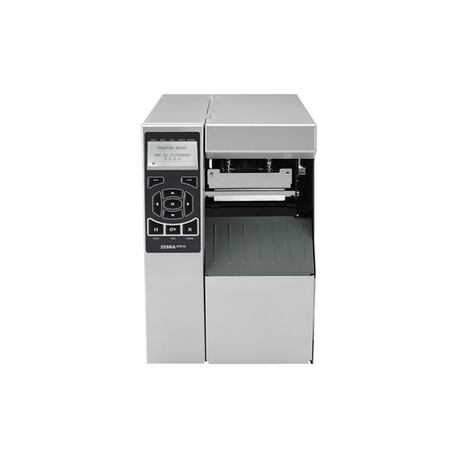

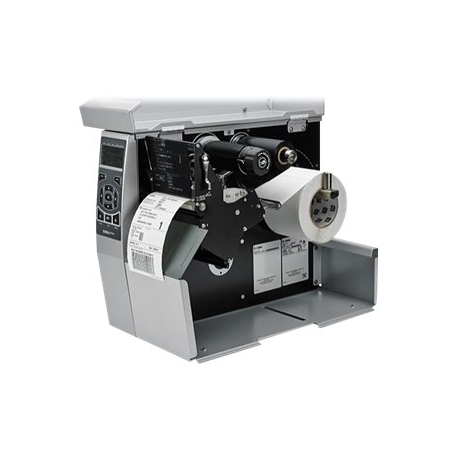

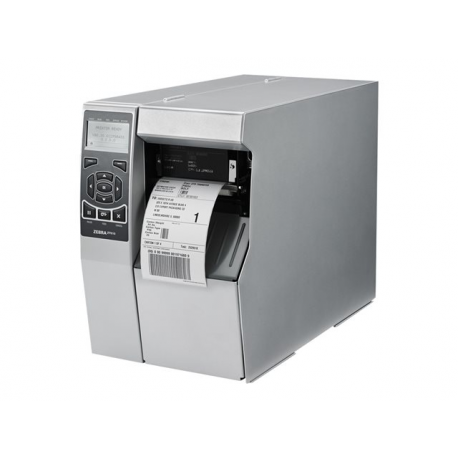

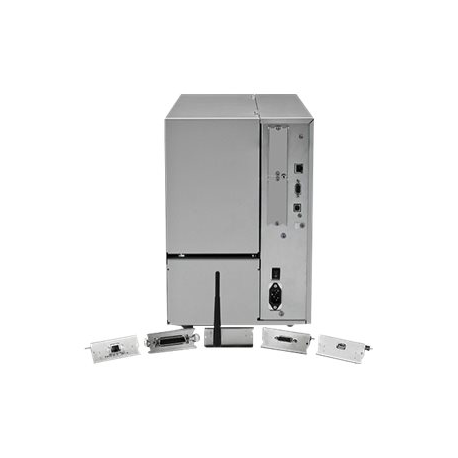

Zebra ZT510 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 203 dpi - up to 305 mm/sec - parallel, USB, serial, Gigabit LAN, NFC, Bluetooth 4.0 - cutter
Zebra ZT510 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 203 dpi - up to 305 mm/sec - parallel, USB, serial, Gigabit LAN, NFC, Bluetooth 4.0 - cutter
Manufacturer
•ZEBRA
Reference
•ZT51042-T1E0000Z
Article
•1467001
Intrastat
•84433210
Shipping weight
•26.618 kg
Manufacturer price
•3391.79 €
Total quantity in stocks
•11
Nearest delivery
•05.05.2026
Label printer, industrial printer, thermal transfer, 8 dots/mm (203 dpi), media width (max.): 114 mm, print width (max.): 104 mm, roll diameter (max.): 203mm, speed (max.): 305 mm/s, USB, RS232, Bluetooth, Ethernet (10/100/1000 Mbit), emulation: ZPL, ZPLII, XML, RAM: 512 MB, Flash: 2GB, cutter, display, real time clock, incl.: power cable (EU, UK), order separately: interface cable
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 305 mm/sec - max speed
Built-in Devices
Status LCD, cutter
Connectivity Technology
Wireless
Interface
Parallel, USB, serial, Gigabit LAN, NFC, Bluetooth 4.0
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, Extensible Mark-up Language (XML)
Fonts
CG Triumvirate Bold Condensed, OCR-A, OCR-B
Styles & Effects
Mirror, rotated text
Features
Realtime clock, transmissive media sensor, reflective media sensor, cutter, cutter tray
Fonts Included
16 x bitmapped
2 x scalable
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5, EAN-8, EAN-13, MSI, RSS-14
Printer Features
Multi-level Element Energy Equalizer (E3)
Processor
Cortex-A9 800 MHz
RAM Installed (Max)
512 MB
Technology / Form Factor
SDRAM
Flash Memory
2 GB
Media Type
Continuous labels, die cut labels
Max Media Size
Roll (11.4 cm)
Min Media Size (Custom)
20 mm x 38 mm
Max Media Size (Custom)
114 mm
Media Sizes
Roll (2 - 11.4 cm)
Max Printing Width
104 mm
Max Printing Length
3810 mm
Media Thickness Range
0.076 mm - 0.23 mm
Roll Maximum Outer Diameter
203 mm
Roll Core Diameter
76 mm
Media Feeders
1 x manual - 1 roll - Roll (11.4 cm)
Networking
Print server
Expansion Slots
2 x expansion slot
Connections
1 x RS-232 - 9 pin D-Sub (DB-9)
1 x USB - 4 pin USB Type B
1 x Gigabit LAN - RJ-45
Included Accessories
Cutter, cutter catch tray
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, EN 61000-3-3, EN55024, EN55022 Class B, CCC, IEC 60950-1, KCC, GOST-R, S Mark, cTUVus, UkrSEPRO
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
ENERGY STAR
Yes
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Width
26.82 cm
Depth
51.233 cm
Height
39.568 cm
Weight
22.7 kg
Zebra - Rewind roller adjustment plateCode: P1006105
Zebra - Main / rewind drive beltCode: P1083347-017
PWRCORD JPN 79 IN DETACHABLECode: 37609
Zebra - Printhead mounting screw (pack of 5)Code: P1083320-112
Zebra - Snap plate kitCode: P1053360-015
Zebra - Printhead open sensor flag kitCode: G46352M
Zebra - Spare parts kitCode: P1006121
Zebra - Dispenser front bezelCode: P1079903-022
Kit Feet for the Printer ZT600 SeriesCode: P1083320-095
Zebra - Tear trim panelCode: P1083347-004
Zebra - Media guide kitCode: P1006106
Zebra - Peel tear barCode: P1006115
Zebra - Ribbon strip plate and static brushCode: P1006095
Zebra - Printer platen roller - for Zebra ZT510Code: P1083347-012
Zebra - Reflective black mark sensorCode: P1083347-031
Zebra - Head open sensorCode: P1083320-053
Zebra - Media hangerCode: P1083347-029
Zebra - Ribbon out sensorCode: P1083347-015
Zebra - Ribbon rollersCode: P1053360-009
Kit Antenna Replacement N Radi os for TabletopsCode: P1037974-053
Kit Maint Dancer AssyCode: 41691M
Zebra - Cables for printhead (power, data, ground)Code: P1083347-028
Zebra - Media sensorCode: P1083347-030
Zebra - Take label sensorsCode: P1083320-052
Zebra - CoversCode: P1083320-092
Zebra - Media rewind plateCode: P1083347-032
Zebra - Ribbon supply spindle assemblyCode: 79830M
Zebra - USB board / cardCode: P1083320-094
Zebra - Media supply hangerCode: P1083320-059
Zebra - Electronics coverCode: P1083347-002
Zebra - Pivot bar & toggle assembly kitCode: G41022M
Zebra - Drive motor with pulleyCode: P1083347-018
Zebra - Assorted hardwareCode: P1083347-026
Zebra - Cutter catch trayCode: P1083347-033
Kit Packaging Material (Qty of 1) ZT510Code: P1083347-034
Technical SUP and SOFTWCode: Z1A5-HPIP-5
Zebra - Ribbon supply spindleCode: P1053360-007
Zebra Applicator Interface Card 5V-24V - Printer upgrade kitCode: P1083320-038
Zebra - Take-up reel - for Xi Series 110XiIIIPlusCode: G41150M
Zebra - Media coverCode: P1083347-003
Zebra - Connectivity PCBACode: P1083320-036
Zebra - Media supply spindleCode: G22253M
Zebra - Media rewind spindle replacement kitCode: G41155M
Zebra - Power supply (internal) - for Zebra ZT610, ZT620Code: P1083320-043
Zebra - Media rewind upgrade kitCode: P1083347-021
Zebra - Print server - 1000Base-T - for Zebra ZT510, ZT610, ZT620Code: P1083320-039
Zebra - Control panelCode: P1083347-001
Zebra - Network adapter - 802.11ac - for Zebra ZT510, ZT610, ZT620Code: P1083320-037C
Zebra - Print server - Wi-Fi 5 - for Zebra ZT510, ZT610Code: P1083320-037A
Zebra - Kit - print server - Bluetooth 5.3, Wi-Fi 5, Wi-Fi 6Code: P1083320-037G
Zebra - Cutter upgradeCode: P1083347-020
Zebra - Printhead (203 dpi)Code: P1083347-005
Zebra - Printhead (300 dpi)Code: P1083347-006
Kit Cutter Upgrade ZT510 with PCBA P1081294-02 V25 FW Code: P1083347-036
Zebra - 300 dpi - printhead - for Zebra 220Xi4Code: P1004239
Kit Packaging Material (Qty of 8) ZT510Code: P1083347-035
Zebra - Main logic boardCode: P1083347-013
Kit, Main Logic Board, ZT510 EMEA ONLY Code: P1083347-038
Zebra - Printer RFID upgrade kit - for Zebra ZT610Code: P1083320-041C
