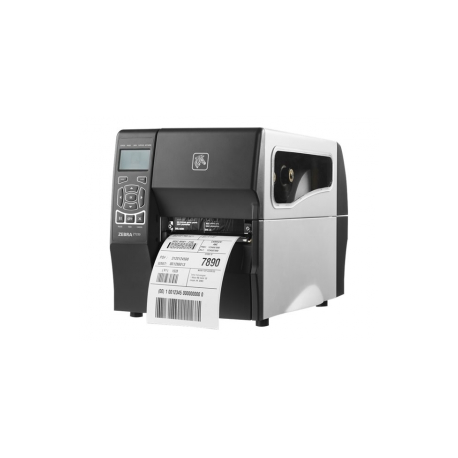

Zebra ZT230 - Label printer - direct thermal - Roll (11.4 cm) - 203 dpi - up to 152 mm / sec - USB, LAN, serial
images are for illustrative purposes only
New
Article: 417099 Intrastat: 84433210 SKU: ZT23042-D0E200FZ
Pricing and stock details are available to registered users only.
Zebra ZT200 Series ZT230 - Label printer - thermal paper - Roll (11.4 cm) - 203 dpi - up to 152 mm/sec - USB, LAN, serial
| Printer Type | Label printer - direct thermal - monochrome |
| Localisation | United Kingdom, Europe |
| Print Speed | Up to 152 mm/sec - B/W - 203 dpi - Roll (11.4 cm) |
| Built-in Devices | Status LCD |
| Connectivity Technology | Wired |
| Interface | USB, LAN, serial |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, ZPL II, Extensible Mark-up Language (XML) |
| Fonts Included | 1 x scalable ¦ 7 x bitmapped |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5 |
| Printer Features | Zebra Programming Language (ZPL) support, XML-enabled printing, Multi-level Element Energy Equalizer (E3) |
| Processor | 400 MHz |
| RAM Installed (Max) | 128 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 128 MB |
| Media Type | Labels, continuous paper labels, die cut labels |
| Max Media Size | Roll (11.4 cm) |
| Min Media Size (Custom) | 19.4 mm |
| Max Media Size (Custom) | 114 mm x 991 mm |
| Media Sizes | Roll (1.94 - 11.4 cm) |
| Max Printing Width | 104 mm |
| Max Printing Length | 3988 mm |
| Media Thickness Range | 0.076 mm - 0.25 mm |
| Roll Maximum Outer Diameter | 203 mm |
| Roll Core Diameter | 76 mm, 25 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.4 cm) |
| Networking | Print server |
| Network Controller Name | ZebraNet 10/100 Print Server |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Connections | 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB ¦ 1 x LAN |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15 B, CCC, KCC, GOST-R, S Mark, cTUVus, UkrSEPRO |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V |
| Frequency Required | 47 - 63 Hz |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 1 year |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Width | 24.2 cm |
| Depth | 43.2 cm |
| Height | 27.7 cm |
| Weight | 9.1 kg |
| Weight (Shipping) | 11.4 kg |
