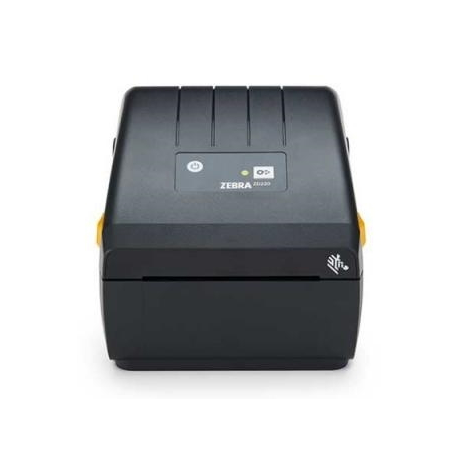

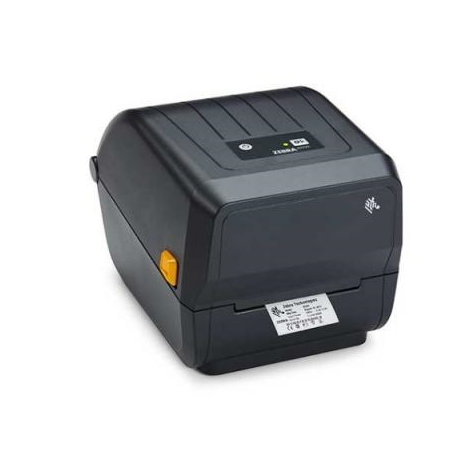

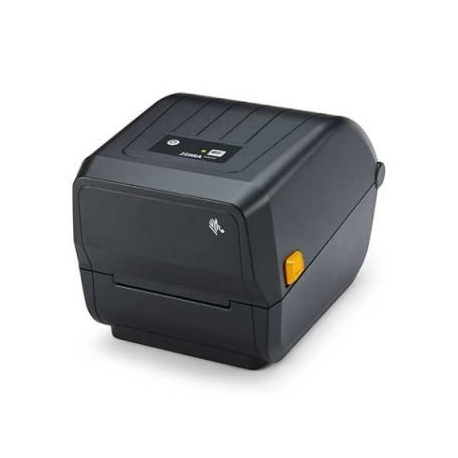

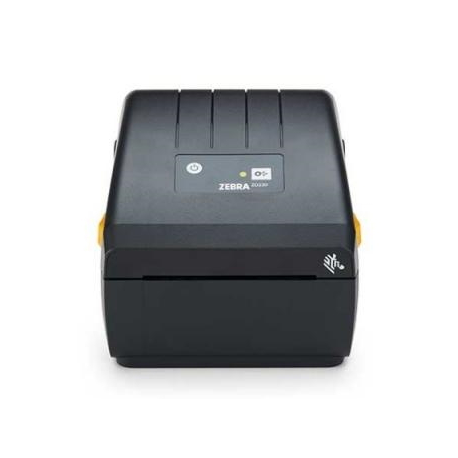

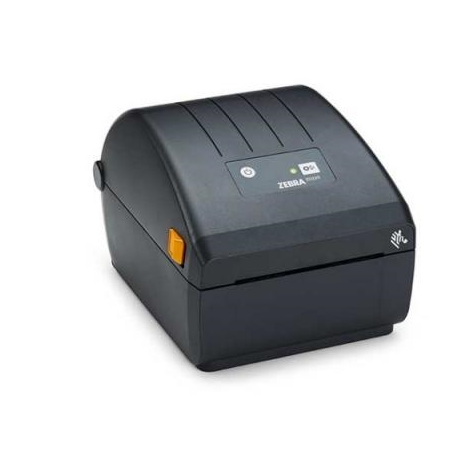

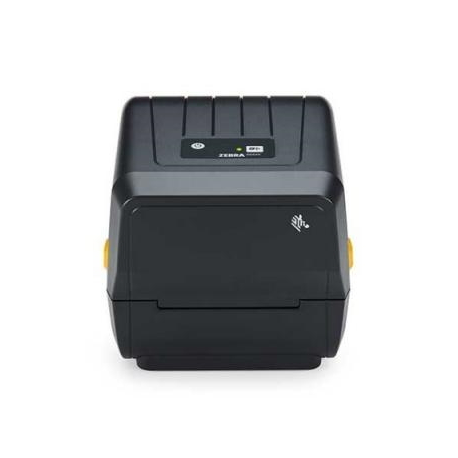

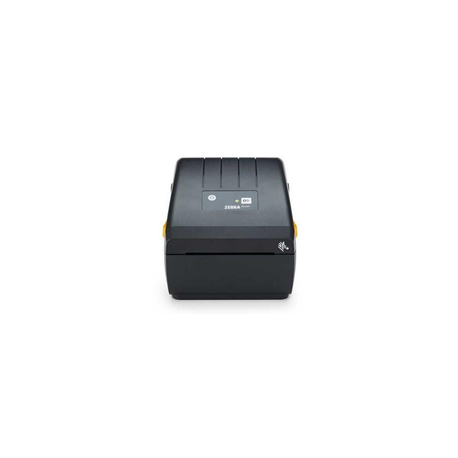

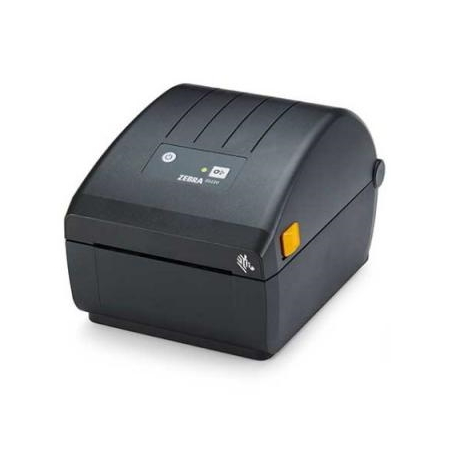

Zebra ZD200 Series ZD230 - Label printer - direct thermal - Roll (11.2 cm) - 203 dpi - up to 152 mm / sec - USB 2.0
Zebra ZD200 Series ZD230 - Label printer - direct thermal - Roll (11.2 cm) - 203 dpi - up to 152 mm / sec - USB 2.0
Manufacturer
•ZEBRA
Reference
•ZD23042-D0EG00EZ
Article
•1665259
Intrastat
•84433210
Shipping weight
•2.578 kg
Manufacturer price
•457.85 €
Label printer, direct thermal, resolution: 8 dots/mm (203 dpi), media width (max.): 112 mm, print width (max.): 104 mm, roll diameter (max.): 127mm, speed (max.): 152 mm/s, USB, emulation: EPLII, ZPLII, XML, incl.: cable (USB), power supply unit, power cable (EU, UK), colour: black
Printer Type
Label printer - direct thermal - monochrome
Localisation
United Kingdom, European Union
Print Speed
Up to 152 ppm - B/W - 203 dpi
Connectivity Technology
Wired
Interface
USB 2.0
Max Resolution (B&W)
203 dpi
Language Simulation
ZPL, ZPL II, EPL2, Extensible Mark-up Language (XML)
Features
Black Mark sensor, gap sensor
Fonts Included
16 x bitmapped ZPL II ¦ 2 x scalable ZPL ¦ 5 x expandable EPL2
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Plessey, Standard 2 of 5, EAN-8, EAN-13, MSI
RAM Installed (Max)
128 MB
Technology / Form Factor
SDRAM
Flash Memory
256 MB
Media Type
Receipt paper, tag stock, continuous labels, die cut labels, wristband labels, fanfold labels
Max Media Size
Roll (11.2 cm)
Media Sizes
Roll (11.2 cm)
Max Printing Width
104 mm
Max Printing Length
991 mm
Media Thickness Range
0.08 mm - 0.1905 mm
Roll Maximum Outer Diameter
127 mm
Roll Core Diameter
25.4 mm, 76.2 mm, 38.1 mm, 12.7 mm, 50.8 mm
Media Feeders
1 x manual - 1 roll - Roll (11.2 cm)
Connections
1 x USB 2.0
Compliant Standards
FCC Class B certified, VCCI, C-Tick, BSMI, ICES-003, NOM, SABS, EN 61000-3-3, EN55024, EN55022 Class B, FCC Part 15.247, CCC, IEC 60950-1, KCC, FCC Part 15.209, S Mark, cTUVus, EN 62311, EN 300 328, BIS, INMETRO, CU, RSS-247, EN 301 893
Power Device
Power supply
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
Software Included
Link-OS
ENERGY STAR
Yes
Min Operating Temperature
4.4 °C
Max Operating Temperature
41 °C
Humidity Range Operating
10 - 90% (non-condensing)
Width
17.6 cm
Depth
22 cm
Height
15.1 cm
Weight
1.1 kg
Zebra - Platen rollerCode: P1080383-700
Zebra - Platen roller bearing kit - left and right (pack of 20)Code: P1080383-224
Zebra - Rubber feet (pack of 4)Code: P1080383-021
Kit, Side Hinge and Rear Hinge Covers, ZD220T, ZD230T, ZD888TCode: P1080383-745
Zebra - Ribbon core adaptersCode: P1080383-231
Zebra - Platen rollerCode: P1080383-703
Kit, Nameplate, ZD230D TCode: P1080383-708
Kit, Head Open Sensor, ZD220T, ZD230T, ZD888TCode: P1080383-807
Kit, Nameplate, ZD220D TCode: P1080383-707
Kit, Cover for Hinge, ZD220D, ZD230D, ZD888DCode: P1080383-715
Kit, Latch Assembly for Standard Models, ZD421DCode: P1112640-007
Zebra - Media adapter - for Zebra zd220; ZD200 Series ZD220, ZD230Code: P1080383-701
Kit, Upper Media Gap Sensor, ZD220D, ZD230D, ZD888DCode: P1080383-714
Kit, Head Open Sensor, ZD220D, ZD230D, ZD888DCode: P1080383-717
Kit, Latch Assembly, ZD220T, ZD230T, ZD888TCode: P1080383-803
Kit, Packaging for shipping printer, ZD220D, ZD230D, ZD888DCode: P1080383-705
Zebra - Shipping pack (thermal) - for Zebra ZD220tCode: P1080383-706
Kit, Upper Media Sensor, Gap Sensor, ZD220T, ZD230T, ZD888TCode: P1080383-805
Kit, Ribbon Sensor, ZD220T, ZD230T, ZD888TCode: P1080383-802
Kit, Lower Media Sensor, Moveable, ZD220D, ZD230D, ZD888DCode: P1080383-718
Kit, PCBA for Control Panel, ZD220D T, ZD230D T, ZD888D TCode: P1080383-711
Kit, Lower Media Sensor, Moveable, ZD220T, ZD230T, ZD888TCode: P1080383-808
Kit, Motor Assembly, ZD220D T, ZD230D T, ZD888D TCode: P1080383-723
Kit, Cover Assembly for White Colored Models, ZD220D, ZD230D, ZD888DCode: P1080383-710
Kit, Cover Assembly for Gray Colored Models, ZD220D, ZD230D, ZD888DCode: P1080383-709
Kit, Cover Assembly for White Colored Models, ZD220T, ZD230T, ZD888TCode: P1080383-801
Kit, Cover Assembly for Gray Colored Models, ZD220T, ZD230T, ZD888TCode: P1080383-812
Zebra - Power adapter - 60 Watt - for Zebra zd220; ZD200 Series ZD230Code: P1080383-704
Kit, Print Mechanism, ZD220D, ZD230D, ZD888DCode: P1080383-716
Kit, Print Mechanism, ZD220T, ZD230T, ZD888TCode: P1080383-806
Kit, Main Logic Board with USB, ZD220D TCode: P1080383-732
Kit, Main Logic Board with USB, ZD230D TCode: P1080383-733
Kit, Main Logic Board with USB, ZD230D T EMEA ONLY Code: P1080383-748
Kit, Main Logic Board with USB, ZD220D T EMEA ONLY Code: P1080383-747
Kit, Main Logic Board with USB and Bluetooth, ZD230D TCode: P1080383-734
Kit, Main Logic Board with USB and Bluetooth, ZD230D T EMEA ONLY Code: P1080383-749
Kit, Ribbon Carriage for 74 meter ribbon rolls, ZD220T, ZD230T, ZD888TCode: P1080383-804
Kit, Main Logic Board with USB and Ethernet, ZD230D TCode: P1080383-735
Kit, Main Logic Board with USB and Ethernet, ZD230D T EMEA ONLY Code: P1080383-750
Kit, Main Logic Board with USB and WiFi 802,11ac, ZD230D T EMEA ONLY Code: P1080383-736D
Kit, Main Logic Board withCode: P1080383-736B
Kit, Main Logic Board withCode: P1080383-736A
Zebra - Printhead (direct thermal) (pack of 10)Code: P1115688
Zebra - Printhead (direct thermal) (pack of 10)Code: P1115687
