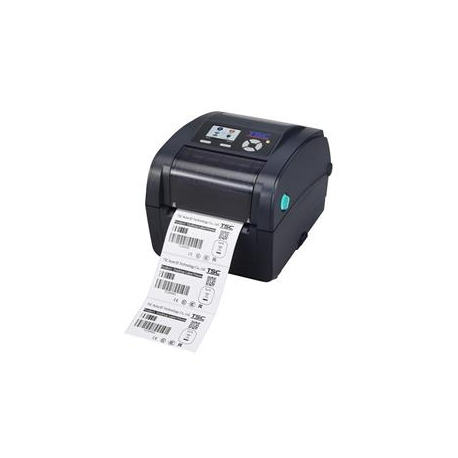

TSC TC310 - TC Series - label printer - direct thermal / thermal transfer - Roll (11.2 cm) - 300 dpi - up to 102 mm / sec - parallel, USB 2.0, LAN, USB host, RS232 - navy
images are for illustrative purposes only
New
Article: 1689460 Intrastat: 84433210 SKU: 99-059A002-3002
Pricing and stock details are available to registered users only.
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Enclosure Colour | Navy |
| Print Speed | Up to 102 mm/sec - max speed |
| Built-in Devices | LCD display |
| Preview Screen Size | 2.3" |
| Connectivity Technology | Wired |
| Interface | Parallel, USB 2.0, LAN, USB host, RS232 |
| Max Resolution (B&W) | 300 dpi |
| Language Simulation | ZPL, ZPL II, EPL, DPL, TSPL-EZ |
| Fonts | CG Triumvirate Bold Condensed |
| Styles & Effects | Rotated text |
| Features | Realtime clock, Black Mark sensor, gap sensor, ribbon end sensor, open head sensor |
| Keyboard | 6 keys |
| Fonts Included | 8 x bitmapped ¦ 1 x scalable |
| Barcodes | Code 93, Code 39, UCC/EAN-128, Code 49, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, PLANET, China Post, Plessey, Code 128B, Code 128C, Code 128A, ITF-14, EAN-128, EAN-8, EAN-13, MSI, Deutsche Post Identcode, Deutsche Post Leitcode, GS1 DataMatrix |
| RAM Installed (Max) | 64 MB |
| Technology / Form Factor | SDRAM |
| Flash Memory | 128 MB |
| Type | Card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card |
| Media Type | Continuous forms, die cut labels, fanfold labels, black mark labels |
| Max Media Size | Roll (11.2 cm) |
| Min Media Size (Custom) | 20 mm x 10 mm |
| Max Media Size (Custom) | 112 mm x 11430 mm |
| Media Sizes | Roll (2 - 11.2 cm) |
| Max Printing Width | 105.6 mm |
| Max Printing Length | 11430 mm |
| Media Thickness Range | 0.06 mm - 0.19 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Roll Core Diameter | 25.4 mm, 38.1 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.2 cm) |
| Networking | Print server |
| Connections | 1 x RS-232 ¦ 1 x parallel ¦ 1 x USB 2.0 ¦ 1 x LAN - RJ-45 ¦ 1 x USB host |
| Cables Included | 1 x USB cable |
| Compliant Standards | FCC Class B certified, UL, TUV, cUL, C-Tick Class B, CCC, RoHS, WEEE, CoC |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Software Included | Drivers & Utilities |
| OS Required | Linux, Microsoft Windows, Apple MacOS X 10.0 or later |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 2 years ¦ Limited warranty - printhead - 1 year / 25 km ¦ Limited warranty - platen - 1 year / 50 km |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 25 - 85% (non-condensing) |
| Width | 20.3 cm |
| Depth | 25.93 cm |
| Height | 19.15 cm |
| Weight | 2.3 kg |
