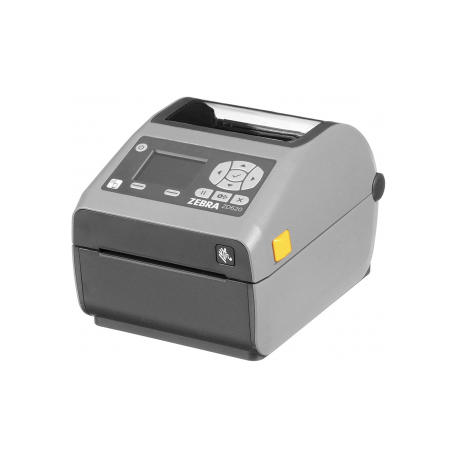

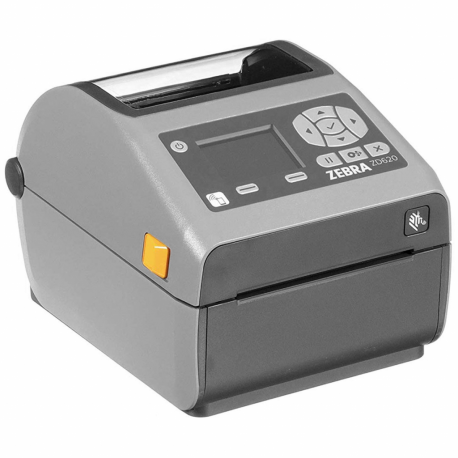

DT Printer ZD620, LCD; Standard EZPL, 203 dpi, EU and UK Cords, USB, USB Host, Serial, Ethernet, 802.11, BT, Cutter ROW
DT Printer ZD620, LCD; Standard EZPL, 203 dpi, EU and UK Cords, USB, USB Host, Serial, Ethernet, 802.11, BT, Cutter ROW
Manufacturer
•ZEBRA
Reference
•ZD62142-D0EF00EZ
Article
•3413094
Intrastat
•84433210
Shipping weight
•1.6 kg
USBSerial portCutter
Print technology
Direct thermal
Maximum resolution
203 x 203 DPI
Print speed
203 mm/sec
Maximum printing width
10.4 cm
Maximum label length
0.991 m
Media thickness
0.08 - 0.19 mm
Connectivity technology
Wired & Wireless
Ethernet LAN
Yes
USB port
Yes
Bluetooth
Yes
Bluetooth version
5.0
Bluetooth Low Energy (BLE)
Yes
Page description languages
EPL2, XML, ZBI, ZPL II
Internal memory
256 MB
Flash memory
512 MB
Product colour
Grey
Display
LCD
Display diagonal
10.9 cm (4.3")
AC input voltage
100 - 240 V
AC input frequency
50-60 Hz
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
4.4 - 41 °C
Storage temperature (T-T)
-40 - 60 °C
Width
177 mm
Depth
221 mm
Height
151 mm
Weight
1.6 kg
Harmonized System (HS) code
84433210
Kit, Rear Bezel Serial and Ethernet and WiFi Bezel, ZD621TCode: P1112640-237
Zebra - Platen roller 300 dpiCode: P1112640-252
Zebra - Platen roller 300 dpiCode: P1112640-062
Kit, Rear Bezel and WiFi Bezel, ZD621DCode: P1112640-047
Zebra platen rollerCode: P1112640-061
Zebra platen rollerCode: P1112640-251
Zebra - Rubber feet (pack of 4)Code: P1080383-021
Zebra - Covers for hinge (includes side and rear hinge covers)Code: P1080383-225
Zebra - Platen roller bearing kit - left and right (pack of 20)Code: P1080383-224
Zebra - Media windowCode: P1080383-400
Kit, Front Bezel, Standard, ZD421D ZD621DCode: P1112640-018
Kit, Hinge and Rear Hinge Cover for models with LCD, ZD621T, ZD621RCode: P1112640-201
Zebra - Ribbon core adaptersCode: P1080383-231
Kit, Nameplate for models without LCD, ZD621TCode: P1112640-222
Zebra - Media window - for Zebra ZD620Code: P1080383-200
Zebra - Latch assemblyCode: P1080383-407
Kit, Head Open Sensor, ZD421D, ZD621DCode: P1112640-058
Kit, Nameplate with LCD, ZD621TCode: P1112640-223
Kit, Front Bezel, ZD621T, ZD421CCode: P1112640-245
Kit, Upper Media Sensor (Gap Sensor), ZD421D, ZD621DCode: P1112640-009
Kit, Lower Media Sensor, (black line sensor), ZD421D, ZD621DCode: P1112640-012
Zebra - Latch assemblyCode: P1080383-207
Zebra - Dispenser front bezel - for Zebra ZD621dCode: P1112640-031
Kit, Replacement Cover for RFID board radome , ZD621RCode: P1112640-503
Kit, Nameplate for models with LCD, ZD621DCode: P1112640-035
Kit, Nameplate for models without LCD, ZD621DCode: P1112640-034
Zebra - Dispenser front bezel - for Zebra ZD621tCode: P1112640-233
Kit, Upper Media Sensor (moveable gap sensor), ZD421T ZD621TCode: P1112640-207
Kit, Head Open Sensor, ZD621TCode: P1112640-244
Zebra - Linerless bezel with take label sensor - frontCode: P1112640-032
Kit, Ribbon Out Sensor, ZD621TCode: P1112640-227
Kit, Blackline Sensor, Movable, ZD621TCode: P1112640-236
Zebra - Printer mounting bracketCode: P1080383-423
Kit, Shipping Pack, ZD421T, ZD621T, ZD621T-RCode: P1112640-249
Zebra - Shipping packCode: P1080383-424
Zebra - Replacement key (pack of 5)Code: P1080383-406
Zebra OneCare Select RenewalCode: Z1RS-ZD6X1-1C0
Zebra - Battery base housing - for Zebra ZD420c, ZD420t, ZD620tCode: P1080383-600
Zebra - Battery base housing - for Zebra ZD420d, ZD620d, ZD621dCode: P1080383-601
Zebra - Printer upgrade kit - for Zebra ZD410Code: P1079903-033
Zebra - Motor assemblyCode: P1080383-221
Kit, Control Panel PCBA with LCD, ZD621TCode: P1112640-228
Zebra OneCare SelectCode: Z1BS-ZD6X1-1C0
Zebra - Ethernet and serial combined module - for Zebra ZD621tCode: P1112640-238
Zebra - Ethernet and serial combined module - for Zebra ZD621dCode: P1112640-048
Zebra platen rollerCode: P1112640-064
Zebra platen rollerCode: P1112640-063
Kit, Inner Lid for models with LCD, Printhead not included, ZD621Code: P1112640-042
Kit, Inner Lid for models without LCD, Printhead not included, ZD621DCode: P1112640-041
Kit, Control Panel PCBA with LCD, ZD621DCode: P1112640-040
Zebra - 203 dpi - maintenance kitCode: P1112640-250
Kit Wireless Module WiFiCode: P1112640-239C
Zebra - Power adapter - 75 Watt - United States - for Zebra ZD410Code: P1079903-026
Zebra - 203 dpi - printheadCode: P1112640-240
Zebra - 203 dpi - printheadCode: P1112640-050
Zebra - Network adapter - 802.11ac - for Zebra ZD421d, ZD421t, ZD621dCode: P1112640-017C
Zebra - Power adapter - 75 Watt - United States - for Zebra ZD410Code: P1079903-030
Zebra - 4" cutter - for Zebra ZD621tCode: P1112640-232
Zebra cutter, kitCode: P1112640-030
Kit, Ribbon Carriage, ZD621TCode: P1112640-229
Kit, Print Mechanism 203dpi, ZD621RCode: P1112640-501
Kit, Print Mechanism 300dpi, ZD621RCode: P1112640-502
Kit Main Logic Board USB, USB Host, Bluetooth, Modular Connectivity SlotCode: P1112640-014
Kit, Print Mechanism 203dpi, ZD621DCode: P1112640-044
Kit, Cover Assembly for models with LCD includes Media Window , ZD621RCode: P1112640-500
Kit, Print Mechanism 300dpi, ZD621DCode: P1112640-045
Zebra - 300 dpi - printheadCode: P1112640-241
Zebra - 300 dpi - printheadCode: P1112640-051
Zebra - Power supply - 75 Watt - for Zebra ZD620tCode: P1080383-234
Zebra - Cutter - for Zebra ZD621dCode: P1112640-033
Kit, Replacement RFID PCBA and Hardware, ZD621RCode: P1112640-504
