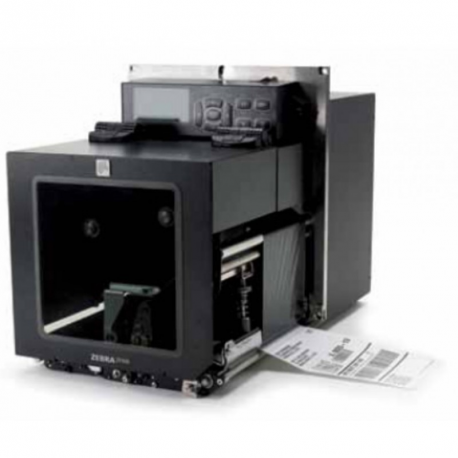

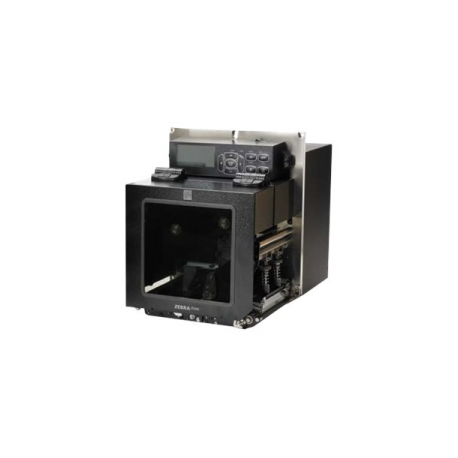

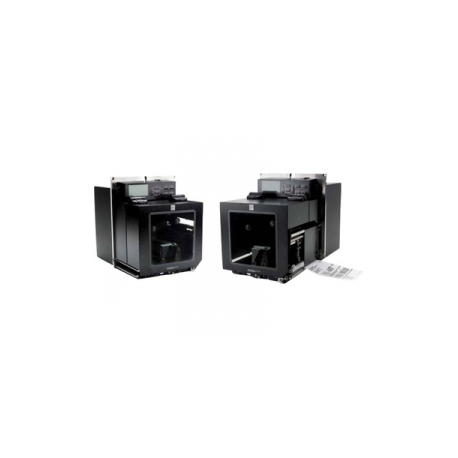

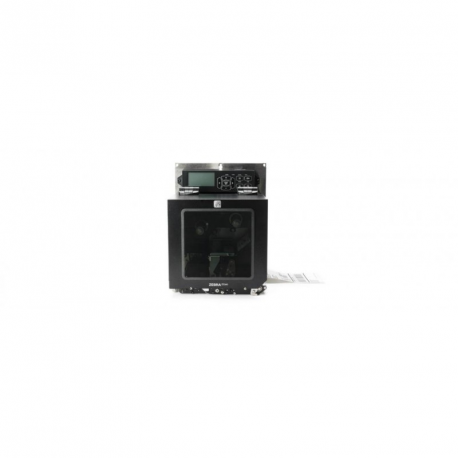

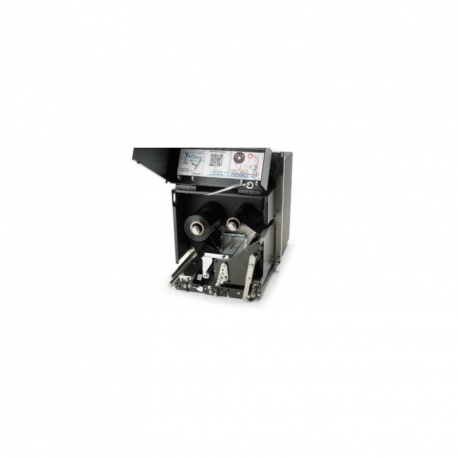

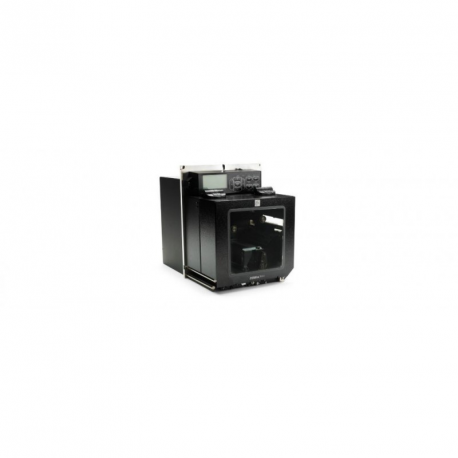

Zebra ZE500-4 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 300 dpi - up to 305 mm / sec - parallel, USB 2.0, LAN, serial
Zebra ZE500-4 - Label printer - direct thermal / thermal transfer - Roll (11.4 cm) - 300 dpi - up to 305 mm / sec - parallel, USB 2.0, LAN, serial
Manufacturer
•ZEBRA
Reference
•ZE50043-R0E0000Z
Article
•460930
Intrastat
•84433210
Shipping weight
•15.4 kg
USBParallel portSerial portDirect thermalThermal transfer300 dpi104 mm
Printer Type
Label printer - direct thermal / thermal transfer - monochrome
Localisation
United Kingdom, Europe
Print Speed
Up to 305 mm/sec - B/W - 300 dpi
Built-in Devices
Status LCD, Applicator Interface Port
Connectivity Technology
Wired
Interface
Parallel, USB 2.0, LAN, serial
Max Resolution (B&W)
300 dpi
Language Simulation
ZPL, ZPL II, Extensible Mark-up Language (XML)
Fonts
CG Triumvirate Bold Condensed
Features
Realtime clock
Barcodes
Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5
Printer Features
Right-hand orientation, Multi-level Element Energy Equalizer (E3)
Processor
133 MHz
RAM Installed (Max)
16 MB
Technology / Form Factor
SDRAM
Flash Memory
64 MB
Media Type
Continuous forms, die cut labels
Max Media Size
Roll (11.4 cm)
Min Media Size (Custom)
16 mm
Max Media Size (Custom)
114 mm x 991 mm
Media Sizes
Roll (1.6 - 11.4 cm)
Max Printing Width
104 mm
Max Printing Length
3810 mm
Media Thickness Range
0.135 mm - 0.254 mm
Roll Maximum Outer Diameter
101.6 mm
Roll Core Diameter
25.4 mm
Networking
Print server
Network Controller Name
ZebraNet 10/100 Print Server
Connections
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x LAN - RJ-45 ¦ 1 x USB 2.0 ¦ 1 x parallel
Included Accessories
Reflective media sensor, transmissive media sensor
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
FCC Class A certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, EN 61000-3-3, EN55024, EN55022 Class A, CCC, IEC 60950-1, KCC, GOST-R, S Mark, NRTL
Power Device
Power supply - internal
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Factor Correction
Yes
OS Required
Microsoft Windows Vista / XP / 7, Microsoft Windows 2003, Microsoft Windows Server 2008
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 85% (non-condensing)
Width
24.5 cm
Depth
38 cm
Height
30 cm
Weight
15.4 kg
