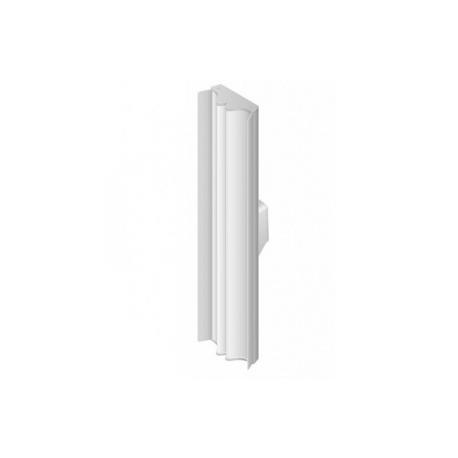

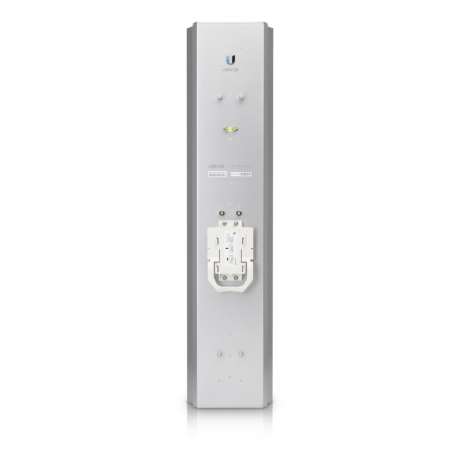

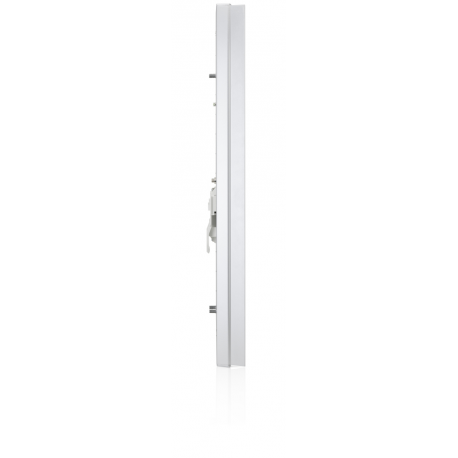

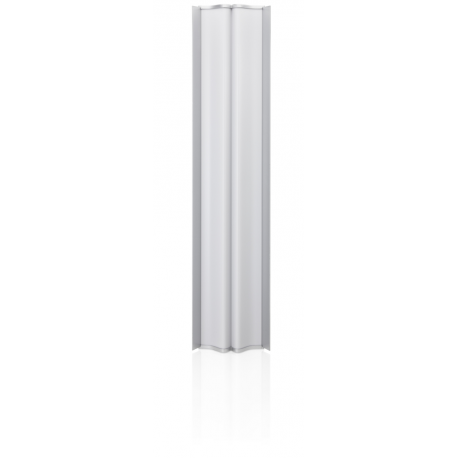

Ubiquiti AirMax ac Sector AM-5AC21-60 - Antenna - 21 dBi - directional - outdoor, pole mount

Ubiquiti AirMax ac Sector AM-5AC21-60 - Antenna - 21 dBi - directional - outdoor, pole mount

Manufacturer
UBIQUITI
Reference
AM-5AC21-60
Article
1265595
Intrastat
85291069
Shipping weight
6.13 kg
Manufacturer price
236.72 €
Total quantity in stocks
7
Nearest delivery
30.03.2026
The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area - potentially on the same tower. Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate). Due to innovative design, the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.

All offers are visible after login.

Manufacturer
UBIQUITI
Reference
AM-5AC21-60
Article
1265595
Intrastat
85291069
Shipping weight
6.13 kg
Manufacturer price
236.72 €
Total quantity in stocks
7
Nearest delivery
30.03.2026
The airMAX ac Sector Antennas are highly resistant to noise interference in co-location deployments. The innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area - potentially on the same tower. Improved Signal-to-Noise Ratio (S/N or SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate). Due to innovative design, the airMAX ac Sector Antennas provide higher gain and superior beam performance for high-capacity, multipoint networks.

Product Type
Antenna
Width
17.3 cm
Depth
7.8 cm
Height
75 cm
Weight
4.8 kg
Aerial Placing / Mounting
Outdoor, pole mount
Frequency Range
5.1 - 5.85 GHz
Gain
21 dBi
Directivity
Directional
Voltage Standing Wave Ratio (VSWR)
1.5:1
Horizontal Beamwidth
60°
Vertical Beamwidth
60°
Mounting Kit
Included
Features
MIMO technology
Service & Support
Limited warranty - 1 year
