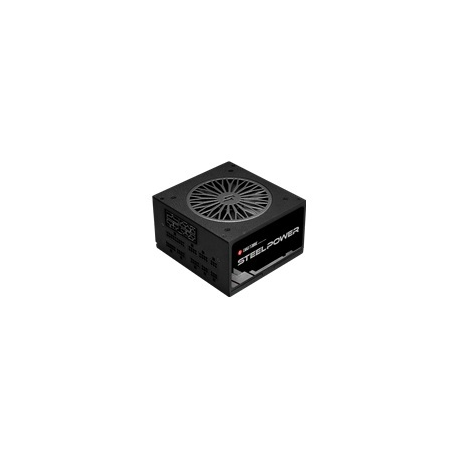

Chieftronic SteelPower Series BDK-550FC - Power supply (internal) - ATX12V 2.3/ EPS12V - 80 PLUS Bronze - AC 100-240 V - 550 Watt - active PFC
Chieftronic SteelPower Series BDK-550FC - Power supply (internal) - ATX12V 2.3/ EPS12V - 80 PLUS Bronze - AC 100-240 V - 550 Watt - active PFC
Manufacturer
•CHIEFTEC
Reference
•BDK-550FC
Article
•1858200
Intrastat
•85044090
Shipping weight
•1.8 kg
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.3/ EPS12V
PSU Form Factor
ATX
Input Voltage
AC 100-240 V
Frequency Required
47 - 63 Hz
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section
2 x power 8 pin EPS12V with detachable 4 pin ATX12V section
3 x 4 PIN internal power
6 x 15 pin Serial ATA power
2 x 8 pin PCI Express power with detachable 2 pin section
1 x 4 PIN mini-power connector
Output Voltage
+3.3, +5, ±12 V
Power Capacity
550 Watt
Output Current
+5V - 20 A
+3.3V - 20 A
+12V - 45.5 A
-12V - 0.3 A
+5VSB - 2.5 A
Power Factor (PF)
0.9
Modular Cable Management
Yes
80 PLUS Certification
80 PLUS Bronze
Cooling System
120 mm fan
Features
Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, DC-DC technology, fully modular, Automatic Fanspeed Control (AFC), Surge & Inrush Protection (SIP), LLC Half Bridge Topology
Compliant Standards
CB, FCC, RoHS, ErP Ready, EAC, Interseroh, TUV Rheinland
Service & Support
Limited warranty - 5 years
Width
15 cm
Depth
14 cm
Height
8.6 cm
Weight
1.62 kg
Shipping Weight
2.17 kg
