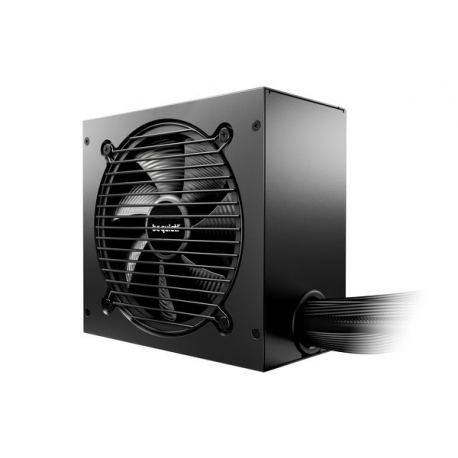

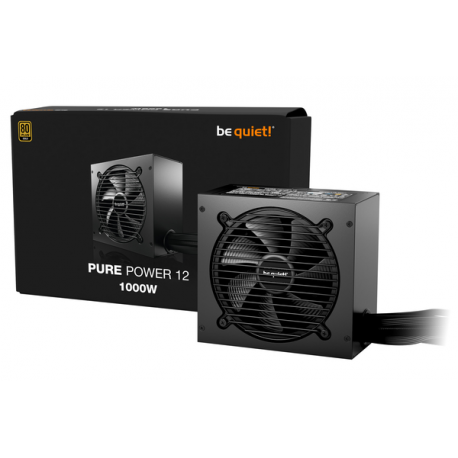

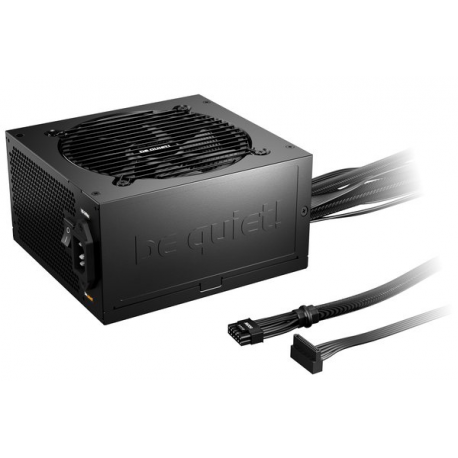

be quiet! Pure Power 12 - Power supply (internal) - ATX12V 3.1/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 1000 Watt - active PFC - Europe - black
be quiet! Pure Power 12 - Power supply (internal) - ATX12V 3.1/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 1000 Watt - active PFC - Europe - black
Manufacturer
•LISTAN
Reference
•BP005EU
Article
•4173181
Intrastat
•85044090
Shipping weight
•3.3 kg
Total quantity in stocks
•43
Nearest delivery
•30.03.2026
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 3.1/ EPS12V 2.92
PSU Form Factor
ATX
Colour
Black
Localisation
Europe
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz

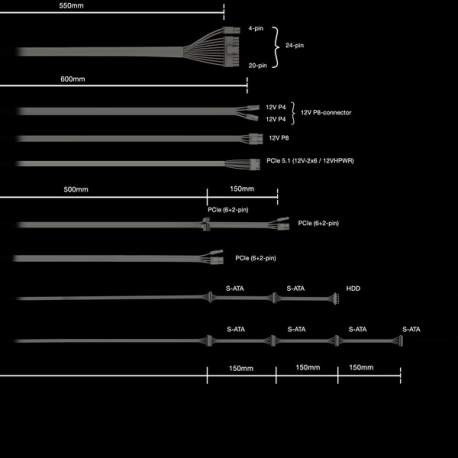

Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section
1 x power 8 pin +12V with detachable 4 pin section
Power 4 pin +12V
1 x 12VHPWR
3 x 8 pin PCI Express power with detachable 2 pin section
6 x 15 pin Serial ATA power
1 x 4 PIN internal power
Power Capacity
1000 Watt
Output Current
+3.3V - 22 A
+5V - 22 A
+12V1 - 83.4 A
-12V - 0.3 A
+5VSB - 3 A
Efficiency
66.3% at 2% Load (230 VAC), 89.2% at 10% Load (230 VAC), 92.7% at 20% Load (230 VAC), 92.9% at 50% Load (230 VAC), 90.6% at 100% Load (230VAC)
Power Factor (PF)
0.98
80 PLUS Certification
80 PLUS Gold

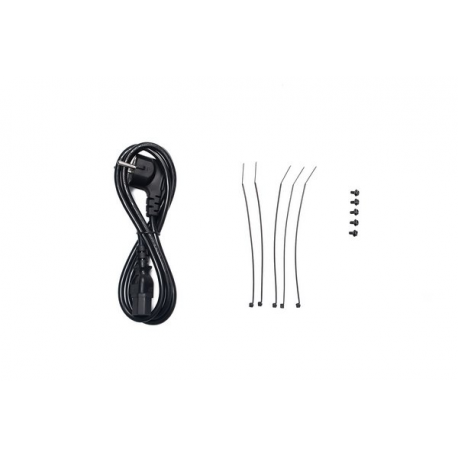

Included Accessories
Screws, cable ties
MTBF
100,000 hours
Cooling System
120 mm fan
Features
Sleeved cables, flat cables, single 12V rail, LLC resonant converter technology, Synchronous Rectifier (SR) technology, DC-DC technology, rifle bearing cooling fan, silent performance, Modern Standby compatible
Compliant Standards
PCIe 5.1, BSMI, CB, CCC, cRUus, cTUVus, CU, FCC, RCM, TUV, UKCA, Energy Star 8.0, ERP, WEEE, RoHS, Triman
ENERGY STAR
Yes
Service & Support
Limited warranty - 10 years
Max Operating Temperature
40 °C

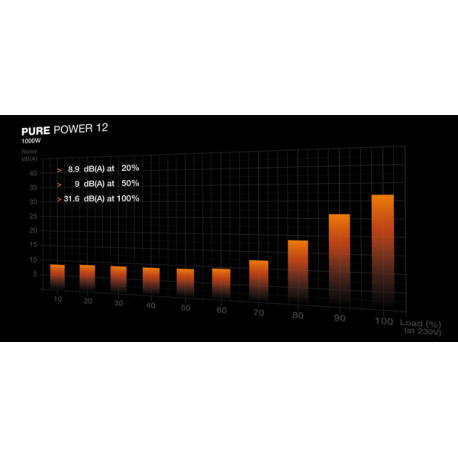

Sound Emission
18.2 dB
Width
15 cm
Depth
16 cm
Height
8.6 cm
Weight
2.8 kg
Shipping Width
32 cm
Shipping Depth
13.3 cm
Shipping Height
21 cm
Shipping Weight
3.2 kg
