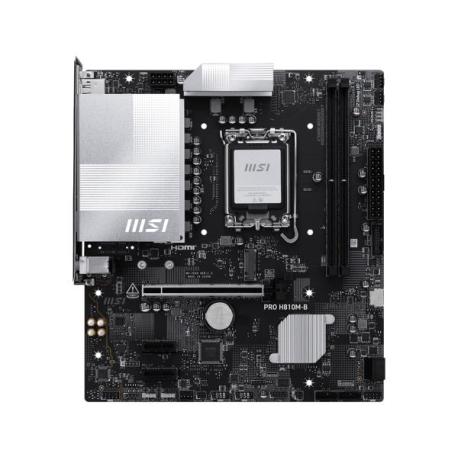

MSI PRO H810M-B - Motherboard - micro ATX - LGA1851 Socket - H810 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
MSI PRO H810M-B - Motherboard - micro ATX - LGA1851 Socket - H810 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•MSI
Reference
•PRO H810M-B
Article
•4346186
Intrastat
•84717020
Total quantity in stocks
•27
Nearest delivery
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
Intel H810
Processor Socket
LGA1851 Socket
Max Processors Qty
1
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Max Size
128 GB
Technology
DDR5
Bus Clock
4800 MT/s, 6400 MT/s, 6400 MT/s (O.C.)
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8125
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 1 x M.2
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
MSI ClickBIOS
Hardware Features
Extended Heatsink Design, pre-mounted I/O shield, EZ PCie Clip II, MSI AI Engine, MSI AI LAN Manager, lightning gen5 solution, Frozr AI Cooling, EZ Debug LED, MSI Core Boost, MSI Memory Boost, Surface Mount Technology (SMT), transient voltage suppressors, MSI Stainless Steel Back I/O, overcurrent protection, chipset heatsink, MSI Audio Boost, MSI Mystic Light
Included Accessories
EZ M.2 clip II remover, EZ M.2 clip II
Cables Included
1 x Serial ATA cable
Software Included
MSI Center
Width
24.384 cm
Depth
22 cm
