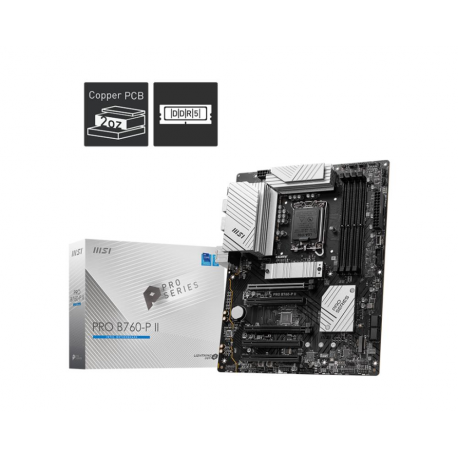

MSI PRO B760-P II - Motherboard - ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
MSI PRO B760-P II - Motherboard - ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB-C 3.2 Gen2 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•MSI
Reference
•PROB760-PII
Article
•3447532
Intrastat
•84717020
Shipping weight
•1.64 kg
Total quantity in stocks
•30
Nearest delivery
•16.03.2026
Product Type
Motherboard - ATX
Chipset Type
Intel B760 / Nuvoton NCT6687
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium / Celeron)
Max Size
256 GB
Technology
DDR5
Bus Clock
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 4.0 x4 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x SPDIF out ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack
Internal Interfaces
4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
BIOS Type
AMI
BIOS Features
SMBIOS 3.5 support, ACPI 6.4 support, UEFI BIOS, MSI ClickBIOS 5
Hardware Monitoring
CPU core temperature, chassis temperature, fan control, fan speed detection
Hardware Features
EZ Debug LED, Frozr AI Cooling, MSI Memory Boost, MSI Core Boost, Zero Frozr technology, Extended Heatsink Design, lightning gen4 solution, 2oz Copper PCB, 6 Layer PCB, Digital PWM, MSI Steel Armor, VRM heatsink design, DIY Friendly Design, 12+1+1 Phase Power Design, aluminium heatsink design, M.2 EZ Latch, MSI Audio Boost, MSI Mystic Light
Included Accessories
EZ M.2 clip, standoff, m.2 screw / standoff sets, IO shield
Cables Included
1 x Serial ATA cable
Software Included
AIDA64 Extreme - MSI Edition, Intel Extreme Tuning Utility, MSI App Player, MSI Center, MSI CPU-Z, Norton 360, Drivers & Utilities
Compliant Standards
DisplayPort 1.4
Width
30.4 cm
Depth
24.4 cm
