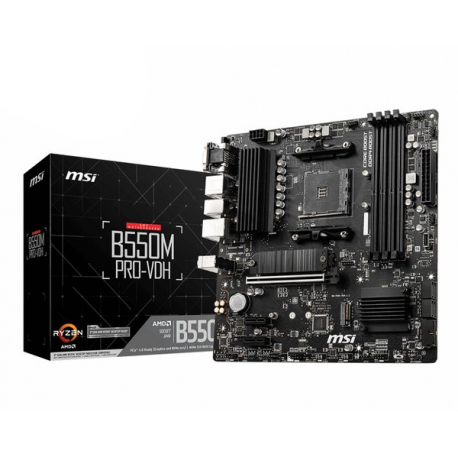

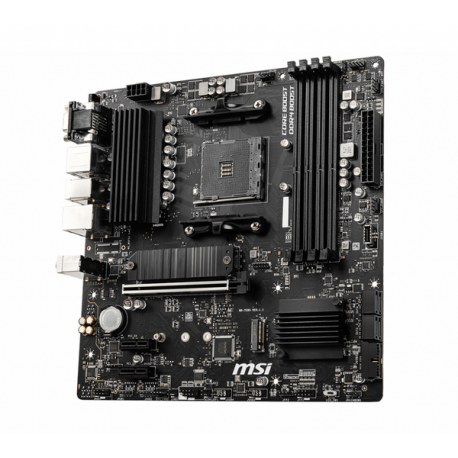

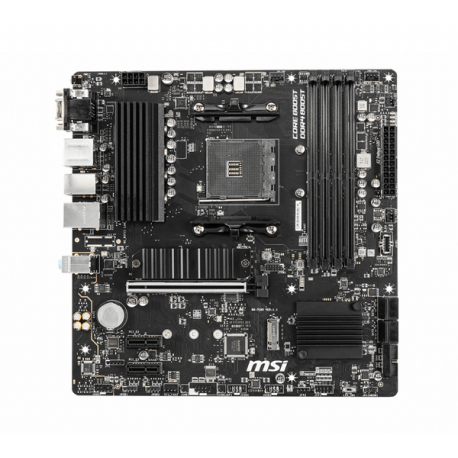

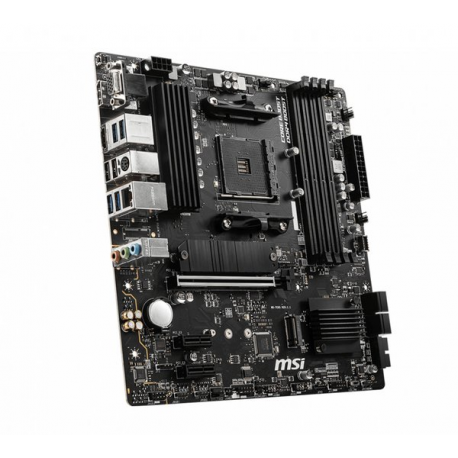

MSI B550M PRO-VDH - Motherboard - micro ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen1, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
MSI B550M PRO-VDH - Motherboard - micro ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen1, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•MSI
Reference
•7C95-017R
Article
•3372138
Intrastat
•84717020
Shipping weight
•1 kg
Total quantity in stocks
•100
Nearest delivery
•30.03.2026
Processor manufacturer
AMD
Processor socket
Socket AM4
Compatible processor series
AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Maximum number of SMP processors
1
Supported memory types
DDR4-SDRAM
Number of memory slots
4
Maximum internal memory
128 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
Unbuffered memory
Yes
Supported storage drive interfaces
SATA III
Supported storage drive types
HDD & SSD
RAID levels
0, 1, 10
Parallel processing technology support
Not supported
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
3
Chassis intrusion connector
Yes
TPM connector
Yes
Serial port headers
1
12V power connector
Yes
RGB LED pin header
Yes
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek 8111HN
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio output channels
7.1 channels
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
Clear CMOS jumper
Yes
Harmonized System (HS) code
84733020
Width
244 mm
Depth
244 mm
Height
65 mm
Cables included
SATA
Drivers included
Yes
Weight
1 kg
