MB B860 S1851 MATX/B860M GAMING X WIFI6E GIGABYTE
MB B860 S1851 MATX/B860M GAMING X WIFI6E GIGABYTE
Manufacturer
•GIGABYTE
Reference
•B860M GAMING X WIFI6E 1.0
Article
•4200608
Intrastat
•84717020
Shipping weight
•1.4275 kg
Total quantity in stocks
•21
Nearest delivery
•15.05.2026
Summary

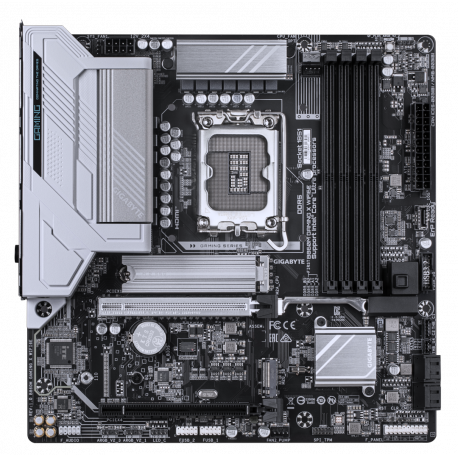

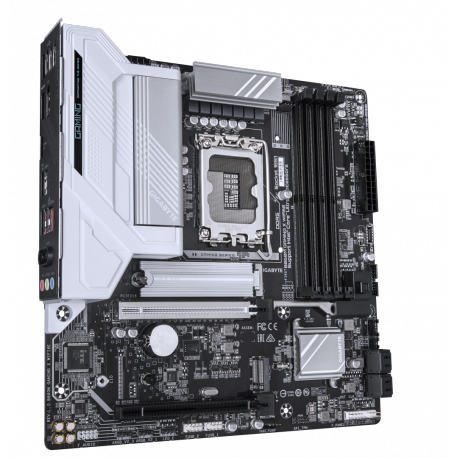

GIGABYTE B860M GAMING X WIFI6E Motherboard - Intel Core Ultra Series CPUs, 8+1+2+2 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Vendor Homepage
https://www.gigabyte.com/
Category Code
MBI
CnCode
84733020
Unit Box Height
0.07
Unit Box Length
0.27
Unit Box Width
0.275
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Component for
PC
Cooling type
Passive
Motherboard chipset
Intel B860
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
PC health monitoring
Fan/Temperature/Voltage/Water cooling
Power source type
ATX
Product colour
Dark brown
Windows operating systems supported
Windows 11 x64
Compatible processor series
Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
ECC сompatibility
ECC & Non-ECC
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory clock speed (max)
9200 MHz
Supported memory clock speeds
5600/6400/9200 MHz
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Number of HDDs supported
4
Number of storage drives supported
6
RAID levels
0/1/10/5
RAID support
Yes
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
DirectX version
12.0
HDCP
Yes
Maximum resolution
4096 x 2160 pixels
Parallel processing technology support
Not supported
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Front panel connector
Yes
Number of chassis fan connectors
2
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of water pump connectors
2
RGB LED pin header
Yes
Thunderbolt headers
2
TPM connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
DisplayPort version
2.1
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
USB 2.0 ports quantity
5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB4 Gen 2x2 ports quantity
1
WiFi-AP antenna jack
2
Bluetooth
Yes
Bluetooth version
5.3
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
LAN controller
Realtek RTL8125
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
25110
Number of M.2 (M) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
ACPI version
5.0
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
Country of origin
China
Lithium weight per battery
0.07 g
Number of battery cells
1
Package depth
268 mm
Package height
68 mm
Package weight
1427.5 g
Package width
270 mm
Products per shipping (inner) case
1 pc(s)
Depth
244 mm
Height
35 mm
Width
244 mm
Antenna included
Yes
Batteries included
Yes
Bundled software
Norton® Internet Security (OEM version) LAN bandwidth management software
Screws included
Yes
Warranty period
3 year(s)
Weight
1225 g
Model
B860M GAMING X WIFI6E
Units per Shipping Box
8
Unit Calculated Volume
0.007085 cubm
Unit Calculated Weight
1.42 kg
