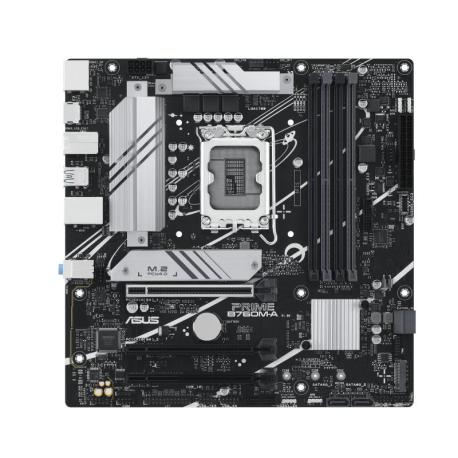

MB B760 S1700 MATX/PRIME B760M-A-CSM ASUS
MB B760 S1700 MATX/PRIME B760M-A-CSM ASUS
Manufacturer
•ASUS
Reference
•PRIME B760M-A-CSM
Article
•4332077
Intrastat
•84717020
Total quantity in stocks
•9
Nearest delivery
•16.03.2026
Summary
ASUS PRIME B760M-A D4-CSM. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Vendor Homepage
https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-d4-csm/
Category Code
MBI
CnCode
84733020
Unit Box Height
0.05
Unit Box Length
0.26
Unit Box Width
0.27
Audio output channels
7.1 channels
Component for
PC
Motherboard chipset
Intel B760
Motherboard chipset family
Intel
Motherboard form factor
micro ATX
Windows operating systems supported
Windows 10 x64/Windows 11
Compatible processor series
Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Processor manufacturer
Intel
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
ECC сompatibility
Non-ECC
Maximum internal memory
128 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory clock speed (max)
5333 MHz
Supported memory clock speeds
2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333 MHz
Supported memory types
DDR4-SDRAM
Unbuffered memory
Yes
Number of storage drives supported
6
RAID levels
0/1/10/5
RAID support
Yes
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Parallel processing technology support
Not supported
12V power connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Number of chassis fan connectors
2
Number of COM connectors
1
Number of SATA III connectors
4
RGB LED pin header
Yes
S/PDIF out connector
Yes
TPM connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
DisplayPort version
1.4
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
2
HDMI version
2.1
Headphone outputs
3
Microphone in
Yes
PS/2 ports quantity
1
USB 2.0 ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Wi-Fi
No
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
3
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Depth
244 mm
Width
244 mm
Cables included
SATA
Model
PRIME B760M-A D4-CSM
Units per Shipping Box
10
Unit Calculated Volume
0.004547 cubm
Unit Calculated Weight
1.15 kg
