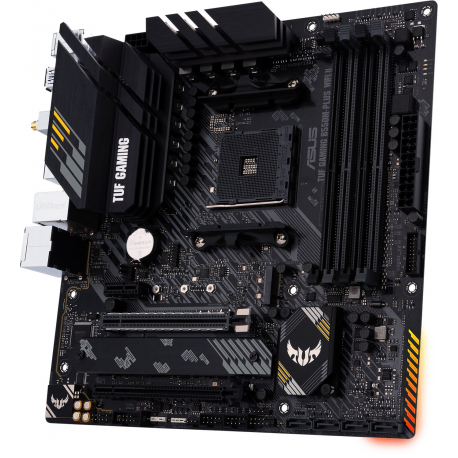

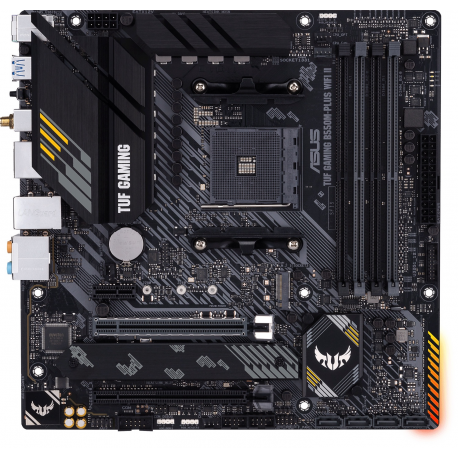

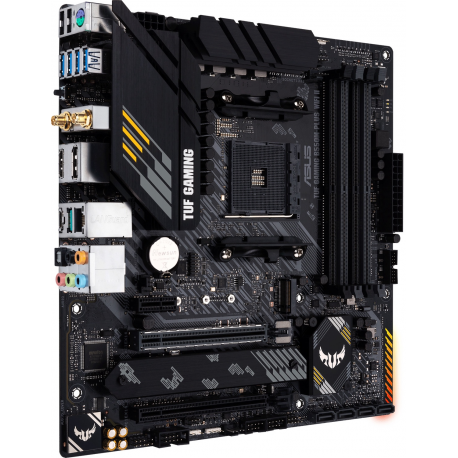

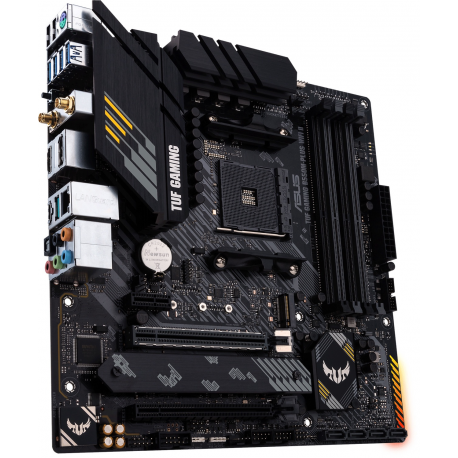

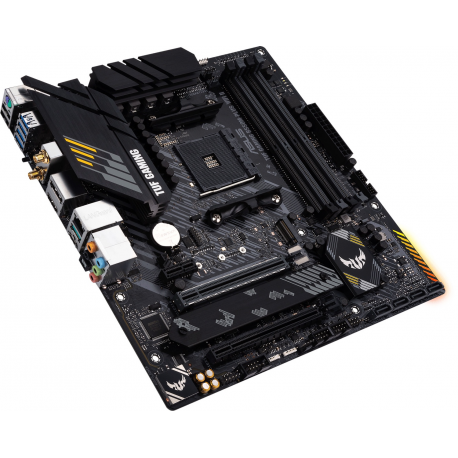

MB AMD B550 SAM4 MATX/TUF GAM B550MPLUS WIFI II ASUS
MB AMD B550 SAM4 MATX/TUF GAM B550MPLUS WIFI II ASUS
Manufacturer
•ASUS
Reference
•TUFGAMB550MPLUSWIFIII
Article
•1893088
Intrastat
•84717020
Shipping weight
•0.845 kg
Total quantity in stocks
•27
Nearest delivery
•16.03.2026
Processor manufacturer
AMD
Processor socket
Socket AM4
Compatible processor series
AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen
Supported processor sockets
Socket AM4
Supported memory types
DDR4-SDRAM
Number of memory slots
4
Maximum internal memory
128 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC
Yes
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4800,4866 MHz
Unbuffered memory
Yes
Supported storage drive interfaces
M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Supported storage drive types
HDD & SSD
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 10
Parallel processing technology support
Not supported
Maximum resolution
3840 x 2160 pixels
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
RGB LED pin header
Yes

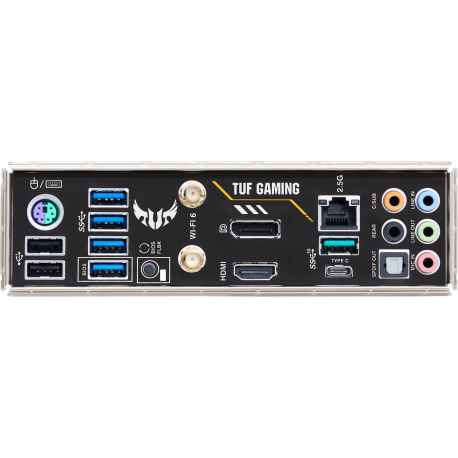

USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
PS/2 ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.2
Headphone outputs
5
Microphone in
Yes
S/PDIF out port
Yes
WiFi-AP antenna jack
1
USB connector type
USB Type-A, USB Type-C
Wi-Fi
Yes
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wake-on-LAN ready
Yes
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Bluetooth version
5.2
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio output channels
7.1 channels
Windows operating systems supported
Windows 10 x64, Windows 11
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Harmonized System (HS) code
84733020
Width
244 mm
Depth
244 mm
Height
67 mm

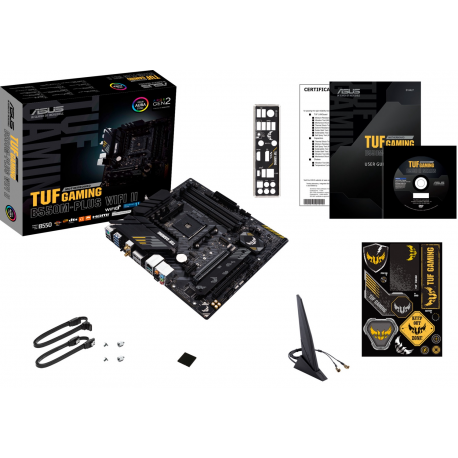

Cables included
SATA
Drivers included
Yes
Weight
845 g
