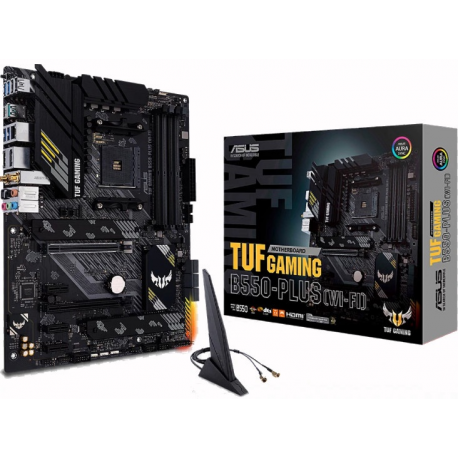

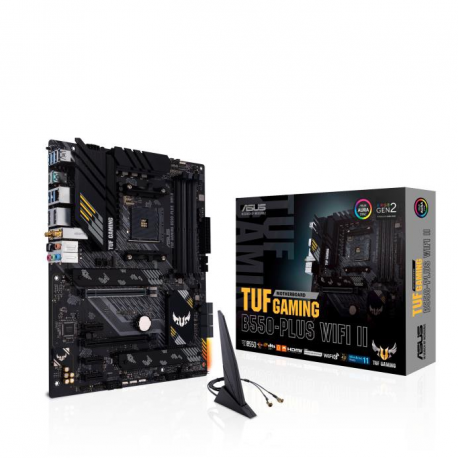

MB AMD B550 SAM4 ATX/TUF GAM B550-PLUS WIFI II ASUS
MB AMD B550 SAM4 ATX/TUF GAM B550-PLUS WIFI II ASUS
Manufacturer
•ASUS
Reference
•TUFGAMB550-PLUSWIFIII
Article
•1888417
Intrastat
•84717020
Shipping weight
•0.945 kg
Total quantity in stocks
•30
Nearest delivery
•16.03.2026
Processor manufacturer
AMD
Processor socket
Socket AM4
Compatible processor series
3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Supported processor sockets
Socket AM4
Supported memory types
DDR4-SDRAM
Number of memory slots
4
Maximum internal memory
128 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC
Yes
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4800,4866 MHz
Unbuffered memory
Yes
Supported storage drive interfaces
M.2, SATA
Supported storage drive types
HDD & SSD
RAID support
Yes
RAID levels
0, 1, 10
Parallel processing technology support
Not supported
On-board graphics card
No
Number of displays supported
2
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
6
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
3
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
Thunderbolt headers
1
RGB LED pin header
Yes
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
DisplayPorts quantity
1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
S/PDIF out port
Yes
USB connector type
USB Type-A, USB Type-C
Wi-Fi
Yes
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Bluetooth version
5.2
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Audio output channels
7.1 channels
Product colour
Black
Windows operating systems supported
Windows 10, Windows 11
PCI Express x1 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Harmonized System (HS) code
84733020
Width
305 mm
Depth
244 mm
Height
75 mm
Cables included
SATA
Drivers included
Yes
Weight
945 g
Packaging content
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
1 x Support DVD
1 x TUF Certification card
1 x User guide
