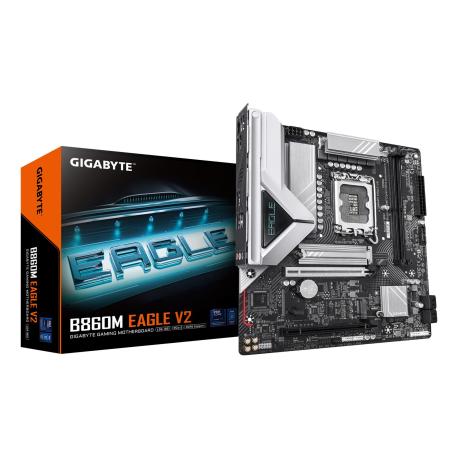

Gigabyte B860M EAGLE V2 - Motherboard - micro ATX - LGA1851 Socket - B860 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B860M EAGLE V2 - Motherboard - micro ATX - LGA1851 Socket - B860 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•GIGABYTE
Reference
•B860M EAGLE V2
Article
•4243129
Intrastat
•84717020
Total quantity in stocks
•58
Nearest delivery
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
Intel B860
Processor Socket
LGA1851 Socket
Max Processors Qty
1
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Max Size
128 GB
Technology
DDR5
Bus Clock
4533 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 2800 MHz
Supported RAM Integrity Check
ECC (operate in non-ECC mode), non-ECC
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 ¦ 2 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2
Interfaces
1 x PS/2 keyboard / mouse ¦ HDMI ¦ 1 x DisplayPort ¦ 3 x USB 3.2 Gen 1 ¦ 3 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces
USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring
System voltage, temperature detection, fan speed detection, fan fail warning, water cooling flow rate, fan control
Hardware Features
Q-Flash Plus button, Q-Flash, Q-Flash Plus, 6 Layer PCB, 6+1+2 Phase Power Design, AI Perfdrive, AI SNATCH Engine, chipset heatsink, DIY Friendly Design, GIGABYTE Smart Fan 6, M.2 Thermal Guard, Premium Power Choke, RGB FUSION, Ultra Durable, VRM heatsink design
Included Accessories
M.2 SSD thick/thin rubber pad, Wi-Fi aerial, computer case screws
Cables Included
2 x Serial ATA cable
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
Compliant Standards
HDCP 2.3, DisplayPort 2.1
Width
24.4 cm
Depth
22.5 cm
