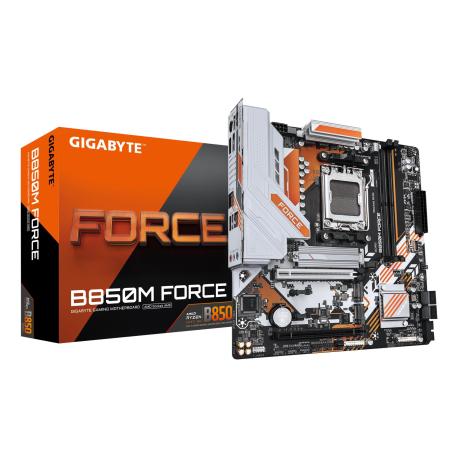

Gigabyte B850M FORCE - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B850M FORCE - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•GIGABYTE
Reference
•B850M FORCE
Article
•4390402
Intrastat
•84717020
Shipping weight
•1.4 kg
Total quantity in stocks
•46
Nearest delivery
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
AMD B850
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
(supports Ryzen 7000/8000/9000 Series)
Max Size
128 GB
Technology
DDR5
Bus Clock
4400 MT/s, 4800 MT/s, 5200 MT/s, 5600 MT/s (O.C.), 5800 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6400 MT/s (O.C.), 6600 MT/s (O.C.), 6800 MT/s (O.C.), 7000 MT/s (O.C.), 7200 MT/s (O.C.), 7600 MT/s (O.C.), 7800 MT/s (O.C.), 8000 MT/s (O.C.), 8200 MT/s (O.C.), 6666 MT/s (O.C.), 8400 MT/s (O.C.), 8600 MT/s (O.C.), 8800 MT/s (O.C.), 9200 MT/s (O.C.), 9600 MT/s (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology, supported ECC modules operate in non-ECC mode
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x4 (x4 mode) ¦ 3 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 2 x M.2
Interfaces
1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring
System voltage, temperature detection, fan speed detection, fan fail warning, water cooling flow rate, fan control
Hardware Features
8+2+2 Phase Power Design, GIGABYTE Smart Fan 6, VRM Thermal Armor Advanced, M.2 Thermal Guard, WIFI EZ-Plug, High-end Audio Capacitors, Q-Flash Plus button, EZ Debug LED, PCIe EZ Latch, Ultra Durable
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
Width
24.4 cm
Depth
24.4 cm
