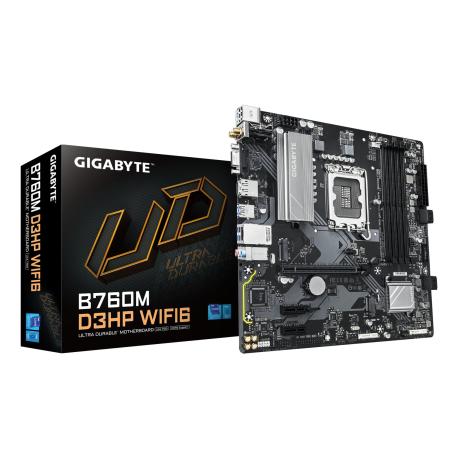

Gigabyte B760M D3HP WIFI6 - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - Gigabit LAN, Bluetooth, Wi-Fi 6 - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B760M D3HP WIFI6 - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - Gigabit LAN, Bluetooth, Wi-Fi 6 - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•GIGABYTE
Reference
•B760M D3HP WIFI6 1.0
Article
•4249419
Intrastat
•84717020
Total quantity in stocks
•50
Nearest delivery
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
Intel B760
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max Size
192 GB
Technology
DDR5
Bus Clock
2800 MHz, 2600 MHz, 2400 MHz, 2200 MHz, 3800 MHz
Supported RAM Integrity Check
ECC (operate in non-ECC mode), non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, supported ECC modules operate in non-ECC mode, Intel Extreme Memory Profiles (XMP) 3.0
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2
Interfaces
1 x DisplayPort ¦ 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 2 x aerial ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (Gigabit Ethernet) ¦ 3 x USB 3.2 Gen 1
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x serial - header ¦ 1 x parallel - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring
System voltage, chassis temperature, fan control, fan speed detection, fan fail warning, temperature detection, water cooling flow rate
Hardware Features
Q-Flash, Q-Flash Plus, Q-Flash Plus button, 4+1+1 Phase Power Design, chipset heatsink, GIGABYTE Smart Fan 6, PCIe EZ Latch, Ultra Durable, VRM heatsink design, GIGABYTE PerfDrive
Included Accessories
IO shield, Wi-Fi aerial
Cables Included
2 x Serial ATA cable
Software Included
Norton Internet Security (OEM Version), LAN manager, GIGABYTE Control Center
Compliant Standards
HDCP 2.3, DisplayPort 1.2
Width
24.4 cm
Depth
24.4 cm
