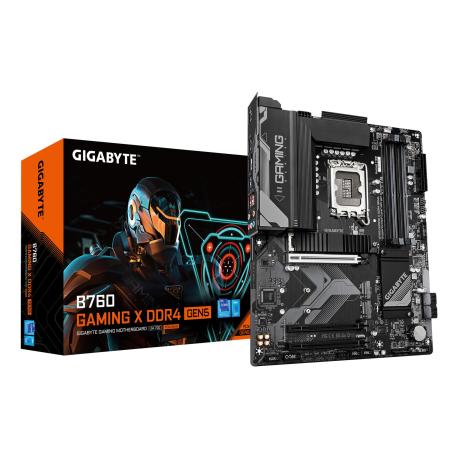

Gigabyte B760 GAMING X DDR4 GEN5 - Motherboard - ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B760 GAMING X DDR4 GEN5 - Motherboard - ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•GIGABYTE
Reference
•B760 GAMING X D4 GEN5
Article
•4475714
Intrastat
•84717020
Shipping weight
•1.38 kg
Total quantity in stocks
•50
Nearest delivery
•16.03.2026
Product Type
Motherboard - ATX
Chipset Type
Intel B760
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max Size
128 GB
Technology
DDR4
Bus Clock
2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3000 MT/s, 3200 MT/s, 3300 MT/s (O.C.), 3333 MT/s (O.C.), 3400 MT/s (O.C.), 3466 MT/s (O.C.), 3600 MT/s (O.C.), 3666 MT/s (O.C.), 3733 MT/s (O.C.), 3800 MT/s (O.C.), 3866 MT/s (O.C.), 4000 MT/s (O.C.), 4133 MT/s (O.C.), 4266 MT/s (O.C.), 4300 MT/s (O.C.), 4400 MT/s (O.C.), 4500 MT/s (O.C.), 4600 MT/s (O.C.), 4700 MT/s (O.C.), 4800 MT/s (O.C.), 4933 MT/s (O.C.), 5000 MT/s (O.C.), 5133 MT/s (O.C.), 5333 MT/s (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 3.0 x16 (x1 mode) ¦ 3 x M.2 socket (2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
1 x DisplayPort ¦ 1 x HDMI ¦ 5 x USB 2.0 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS
Hardware Monitoring
Fan fail warning, fan control, chassis temperature, system voltage, water cooling flow rate
Hardware Features
8+1+1 Phase Power Design, GIGABYTE Smart Fan 6, Q-Flash Plus, Solid Pin Power Connectors, 60A Power Stage, M.2 Thermal Guard, DIY Friendly Design, pre-mounted I/O shield, GIGABYTE PerfDrive, Ultra Durable, MultiKey, Dr.MOS MOSFET
Software Included
Norton Internet Security (OEM Version), GIGABYTE Control Center
Width
30.5 cm
Depth
24.4 cm
