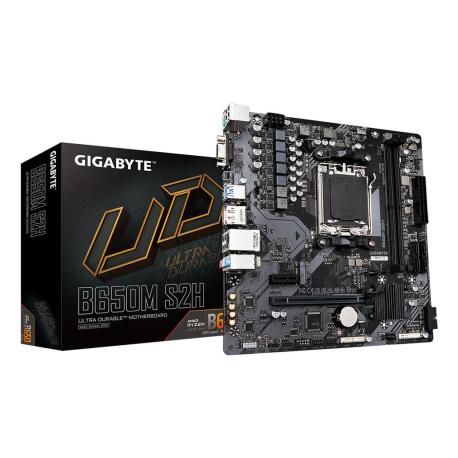

Gigabyte B650M S2H - 1.0 - motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B650M S2H - 1.0 - motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•GIGABYTE
Reference
•B650M S2H 1.4
Article
•4393505
Intrastat
•84717020
Total quantity in stocks
•24
Nearest delivery
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
(supports Ryzen 7000 Series)
Max Size
96 GB
Technology
DDR5
Bus Clock
4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2580 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2
Interfaces
1 x HDMI ¦ 1 x VGA ¦ 4 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x DisplayPort ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces
1 x SPI - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring
System voltage, fan fail warning, fan speed detection, temperature detection, water cooling flow rate, fan control
Hardware Features
5+2+2 Phase Power Design, Q-Flash, Q-Flash Plus, GIGABYTE Smart Fan 6, RGB FUSION, PCIe EZ Latch, DIY Friendly Design
Software Included
Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager
Width
23 cm
Depth
22.5 cm
